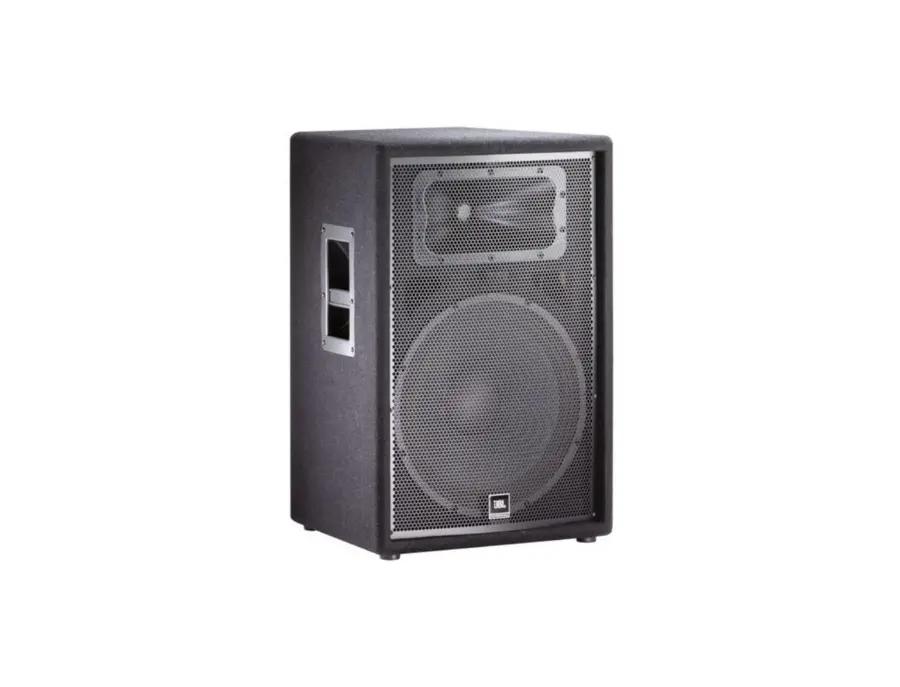

Transform your live sound experience with the JBL JRX215 Passive Speaker, a reliable and robust choice for both professionals and passionate musicians. This two-way 15" loudspeaker system is engineered to deliver powerful and precise audio, making it ideal for live sound and speech reinforcement applications.

Built with a 2.5" voice coil and a 1" compression driver, the JRX215 ensures a wide frequency response of 40 Hz to 18 kHz, offering rich bass and crisp highs. The SonicGuard™ protection for the high-frequency driver safeguards your performance from power surges, ensuring uninterrupted sound delivery. Its MDF construction provides durability and enhances low-frequency performance, while the 18-gauge perforated, steel grille protects internal components, making this speaker both tough and portable.

The JRX215's dual-angle pole-mount socket allows for flexible setup options, enabling precise audience coverage. Connectivity is versatile with 1/4" TS and Neutrik SpeakON inputs, simplifying integration into any sound system. Whether you're setting up in a small venue or a large outdoor event, the JRX215 is designed to meet the demands of any gig with ease.

Key Features:

• Two-way 15" loudspeaker system
• 1000W peak power handling
• Frequency response: 40 Hz - 18 kHz
• 8 Ohm impedance
• 90° x 50° CD horn for broad coverage
• SonicGuard protection for high-frequency driver
• Durable MDF construction with non-resonant steel handles
• Dual-angle stand flange mount
• Speaker twist/Jack in/out connections

FAQs:

What is the JBL JRX215?
The JBL JRX215 is a passive, two-way 15-inch loudspeaker designed for live music, DJ setups, speech reinforcement, and general sound reinforcement. As a passive speaker, it requires an external power amplifier.

What components are inside the JRX215?

• 15" woofer (JBL M115-8A) with a 2.5" edge-wound ribbon voice coil

• 1" polymer diaphragm compression driver (JBL 2414H-C)

• JBL Progressive Transition™ waveguide for improved coverage and frequency response

• High-voltage crossover with heavy-gauge inductors and large capacitors


What is the power handling capacity?

• 250W continuous power

• 1000W peak power (IEC rating)


What amplifier power is recommended?
Use an amplifier rated between 250W and 500W RMS at 8 ohms for best results. Avoid underpowered amps, which can cause damaging distortion.

What is the speaker’s impedance?
The nominal impedance is 8 ohms.

What are its frequency response and sensitivity?

• Frequency Response (±3 dB): 59 Hz – 13 kHz

• Frequency Range (-10 dB): 41 Hz – 18 kHz

• Sensitivity: 99 dB SPL (1W/1m)

• Max SPL: 129 dB peak


What input connectors are included?

• One Speakon® NL-4 input

• One 1/4" TS input (both are parallel wired)

What is SonicGuard™ protection?
SonicGuard™ is JBL’s overload protection circuit for the high-frequency driver. It prevents damage during signal peaks without interrupting audio output.

How is the JRX215 constructed?

• 19 mm MDF cabinet with internal bracing

• Covered in durable black carpet

• 18-gauge steel grille

• Steel handles for transport

Can it be pole-mounted?
Yes. It has a dual-angle 36 mm pole socket that allows for upright or 10° downward tilt mounting to optimize audience coverage.

What is it best used for?

• Live performances in small to medium venues

• DJ events and mobile PA setups

• Speech reinforcement for presentations

• Practice rooms and rehearsal spaces

• General-purpose PA needs

Product specs

FAQs

Is the JBL JRX215 Passive Speaker suitable for live music performances?

Yes, the JBL JRX215 is designed for live sound reinforcement, making it ideal for live music performances, DJ sets, and speech reinforcement due to its robust build and advanced JBL transducer technology.

What is the power handling capacity of the JBL JRX215 speaker?

The JBL JRX215 can handle up to 1000 watts of peak power, with an RMS power rating of 250 watts, providing ample headroom for a variety of live sound applications.

Can the JBL JRX215 be used as a floor monitor?

The JBL JRX215 does not have a monitor angle, so it's not specifically designed to be used as a floor monitor. However, it can still be used in various configurations depending on your setup needs.

What type of inputs does the JBL JRX215 Passive Speaker have?

The JBL JRX215 features both speaker twist and jack inputs, allowing for flexible connectivity options with different audio systems and amplifiers.

How does the JBL JRX215 handle high frequencies?

The JBL JRX215 uses a 1" polymer diaphragm compression driver and a progressive transition high-frequency waveguide, which ensures superior coverage, reduced distortion, and smoother frequency response for high frequencies.
