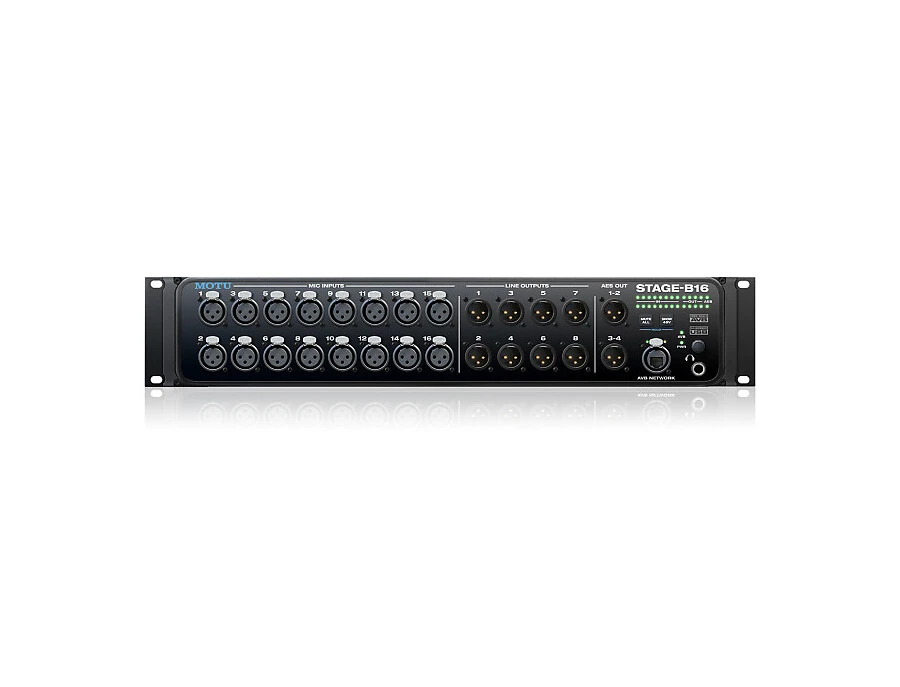

The MOTU Stage B16 is a versatile powerhouse designed to seamlessly blend stage and studio environments. Whether you're performing live or recording in a studio, this 16 x 8 digital mixer ensures you have the connectivity and control you need. With its AVB Ethernet capabilities, you can effortlessly network multiple devices, while the USB interface offers high-quality audio recording up to 192kHz, perfect for Mac or iOS devices. Its built-in DSP provides modeled analog EQ, vintage compression, and reverb, allowing you to enhance your sound on the fly.

The Stage B16 is built to endure the rigors of road use, ensuring that your performance remains consistent, no matter the venue. It offers 16 pristine mic preamps and eight line outputs, with the flexibility to expand your setup by daisy-chaining additional units via Ethernet. This adaptability makes it ideal for both growing home studios and established multi-room facilities. The web-based control app allows you to manage all functions from any device connected to the network, giving you the freedom to make adjustments from anywhere in the venue.

Key Features:

• 16 x 8 digital mixer, stage box, and AVB/USB audio interface
• Built-in DSP for EQ, compression, and reverb on all inputs and outputs
• Ultra-low latency AVB Ethernet connectivity
• High-resolution sound quality up to 192kHz
• Expandable via daisy-chaining multiple units
• Web-based control from any network-connected device
• Rugged construction for reliable stage use

Product specs

FAQs

What are the main connectivity options for the MOTU Stage B16?

The MOTU Stage B16 offers USB and Ethernet connectivity, supporting up to 64 x 64 channels via USB and up to 128 x 128 channels via Ethernet (AVB).

Does the MOTU Stage B16 provide phantom power for microphones?

Yes, the MOTU Stage B16 offers individual phantom power for each of its 16 XLR mic preamp inputs.

Can the MOTU Stage B16 be used with both Mac and PC systems?

Yes, the MOTU Stage B16 is compatible with Mac systems running OS X 10.8 or later and PC systems running Windows 7 SP1 or later.

Is the MOTU Stage B16 suitable for rackmount installation?

Yes, the MOTU Stage B16 is designed for rackmount installation and occupies 2U of rack space.

What software is compatible with the MOTU Stage B16 for control and configuration?

The MOTU Stage B16 can be controlled and configured using the MOTU Discovery App, which is available for Mac, PC, Linux, iOS, and Android devices.
