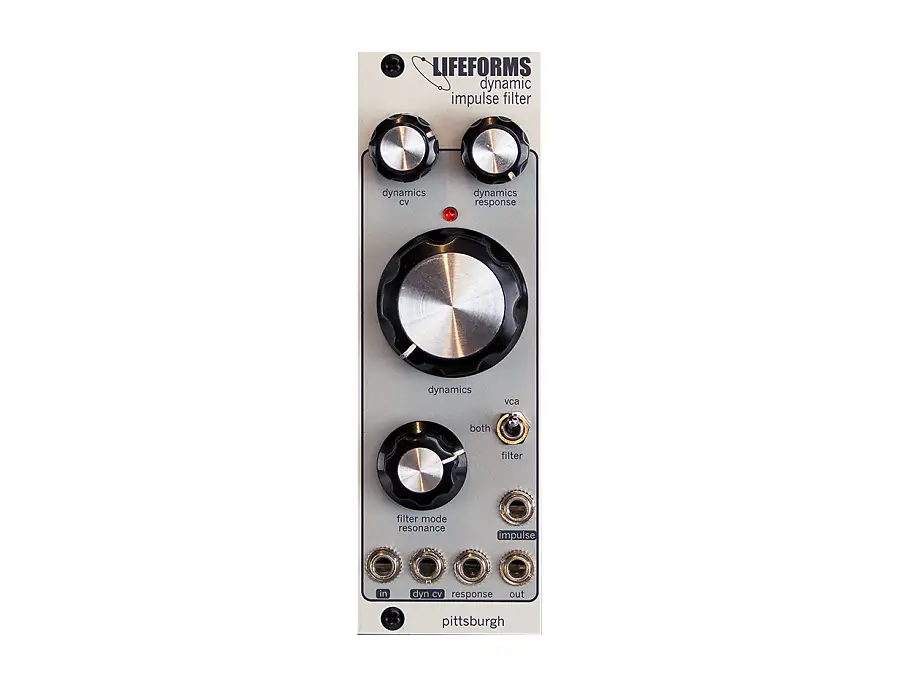

Unleash the full potential of your modular synthesizer with the Pittsburgh Modular Lifeforms Dynamic Impulse Filter, a revolutionary addition that redefines percussive sound shaping. With its vactrol-free analog circuitry, this filter is engineered to deliver consistent and stable performance, overcoming the unpredictability of traditional light-dependent resistor designs. Whether you're crafting the sharp crack of a snare or the deep thud of a kick drum, the Dynamic Impulse Filter empowers you with three versatile modes: resonant lowpass filter, VCA, and lowpass gate. These modes offer unparalleled flexibility, letting you shape your sound's timbre and dynamics with precision.

The Dynamic Impulse Filter is built on a classic Sallen-Key 2-pole topology, renowned for its smooth lowpass filtering and self-oscillation capabilities at high resonance settings. With the Dynamics CV input and the Dynamics knob, you can fine-tune the center frequency of your audio, allowing for a staggering range of expressive possibilities. The module’s unique design also includes a response output, enabling you to control external static vactrol filters, adding even more depth to your soundscaping arsenal.

Designed for the Eurorack system, this module occupies just 8HP, making it a compact yet powerful tool for any synth enthusiast. With the Pittsburgh Modular Lifeforms Dynamic Impulse Filter, your creative potential is as limitless as the sonic landscapes you wish to explore.

Key Features:

• Powerful variable dynamic lowpass filter in an 8HP Eurorack module
• Sallen-Key 2-pole topology for smooth lowpass filtering and self-oscillation
• Three operation modes: filtering, VCA dynamics, or combined lowpass gate
• Vactrol-free analog circuitry for consistent dynamic filtering
• Tunable response time for adaptable musical contexts
• Response output for controlling external static vactrol filters

Product specs

FAQs

What type of filter is the Pittsburgh Modular Lifeforms Dynamic Impulse Filter?

The Pittsburgh Modular Lifeforms Dynamic Impulse Filter is a low pass gate filter, which combines the features of a VCA and a low pass filter to shape sound dynamically.

How much space does the Lifeforms Dynamic Impulse Filter take up in a Eurorack setup?

The Lifeforms Dynamic Impulse Filter occupies 8HP in a Eurorack modular synthesizer setup, making it a compact addition to your system.

Does the Lifeforms Dynamic Impulse Filter require a +5v power supply?

No, the Lifeforms Dynamic Impulse Filter does not require a +5v power supply. It operates with power usage of +12v 35mA and -12v 35mA.

What kind of protection does the Lifeforms Dynamic Impulse Filter have against power issues?

The Lifeforms Dynamic Impulse Filter includes reversed power polarity protection, safeguarding the module from damage caused by incorrect power connections.

Is the Lifeforms Dynamic Impulse Filter suitable for creating dynamic and percussive sounds?

Yes, the Lifeforms Dynamic Impulse Filter is designed to create dynamic and percussive sounds by combining VCA and low pass filter functions, ideal for expressive sound shaping.
