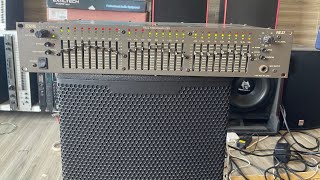

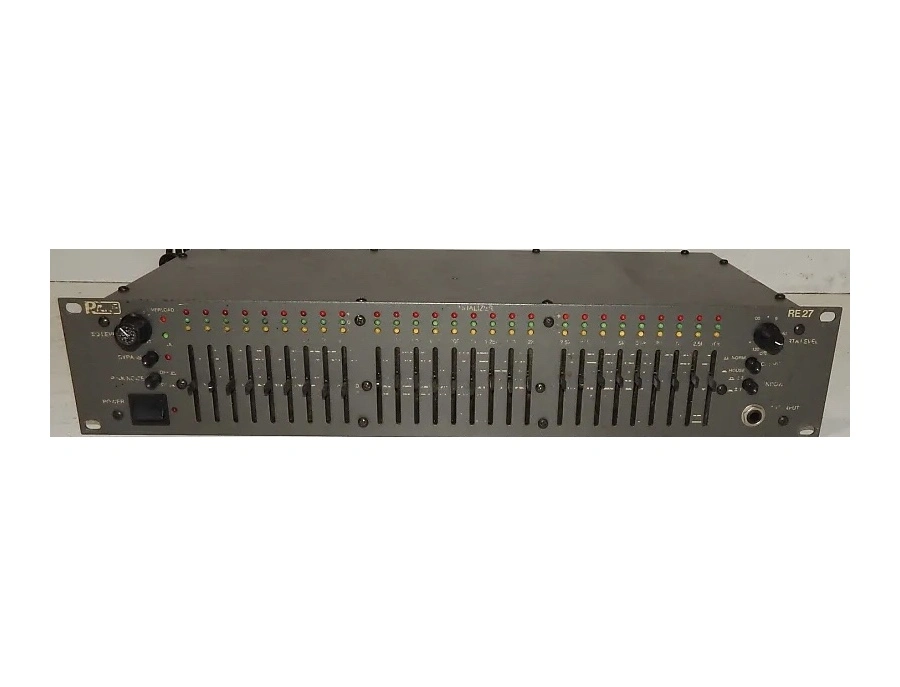

The Rane RE 27 Realtime Equalizer is a single-channel, one-third octave equalizer and a single channel one-third octave realtime analyzer. Housed in a two rack-space unit, the RE 27 features long throw slide controls on each filter band ensuring good resolution over its boost/cut range of +12dB to -15dB.

The built-in realtime analyzer provides a visual indication of the amplitude characteristics of each one-third octave band and is designed to be used to flatten the response of a sound system with great ease.

Specifications

(27 Channels) 1/3-octave Constant-Q derived filters on IS0 centers from 40 Hz to 16 kHz Center Frequency Accuracy;. ±3% maximum. Filter Type: Constant-Q, state variable derived (no inductors or gyrators).

Sliders: 45 mm full-throw, positive center detent (grounded). Range: Boost: 12 dB, +2/-l dB; Cut: 15 dB, +2/+1 dB. Signal/Noise Ratios, re +4dBm, unweighted, 20 kHz bandwidth Sliders centered, unity gain: 92dB Sliders centered, max gain: 90dB Sliders max. unity gain: 73dB Sliders max, max gain: 69dB Frequency Response: 20Hz to 50kHz, +0/-3dB. THD + Noise: less than .009%, 20-20kHz with +4dBm output. IM Distortion: less than .02%, 60/7kHz, 4:l. Maximum Gain: +6dB (+3/-0dB) with sliders centered. Input Impedance: 20k ohms. Output Impedance: 100 ohms. Maximum Input Level: +22dBm (9.7 VRMS), level control below unity gain. +19dBm (7.0 VRMS), level control at unity gain. +14dBm (4.0 VRMS), level control maximum Maximum Output Level (600 ohms): +20dBm (7.8 VRMS), level control max. +18dBm (6.2 VRMS), level control at unity gain Subsonic Filter: fixed at 20Hz, 18dB/octave. Ultrasonic Filter: fixed at 50kHz, 12dB/octave. Overload Indicator: Red LED, lights at 4dB below clipping. Signal Present Indicator: Green LED, lights above -20dBm input. RE 14 Channel Separation: better than 75dB, 20-20kHz. RFI Input Filters. Bypass Switch: Passive (hard-wire type), red LED indicated (bypass=on). Output Relay: Turn on/off transient control Display Range: +1 dB or ±3dB “green” window, selectable. Measurement Level Range: 70dB to 120dB SPL, calibrated. Curve Selection: Normal: flat from 40-16kHz, ±.5dB. House: +3dB boost between 400 Hz & 1.6kHz. Display Attack Time: Peak Instantaneous. Frequency Accuracy: ±5% maximum. Analyzer Filters: ANSI Class II Pink Noise: Pseudo-random NMOS digitally-synthesized, 23-bit word length, 1 min. repetition rate Output level adjustable to +4dBm. Response: 16Hz to 20kHz, +1 dB; crest factor 4.0

Chassis and Front Panel: Cold rolled steel Size: 19"W x 3.5"H x 8.5" rack depth Weight: 11 lbs
