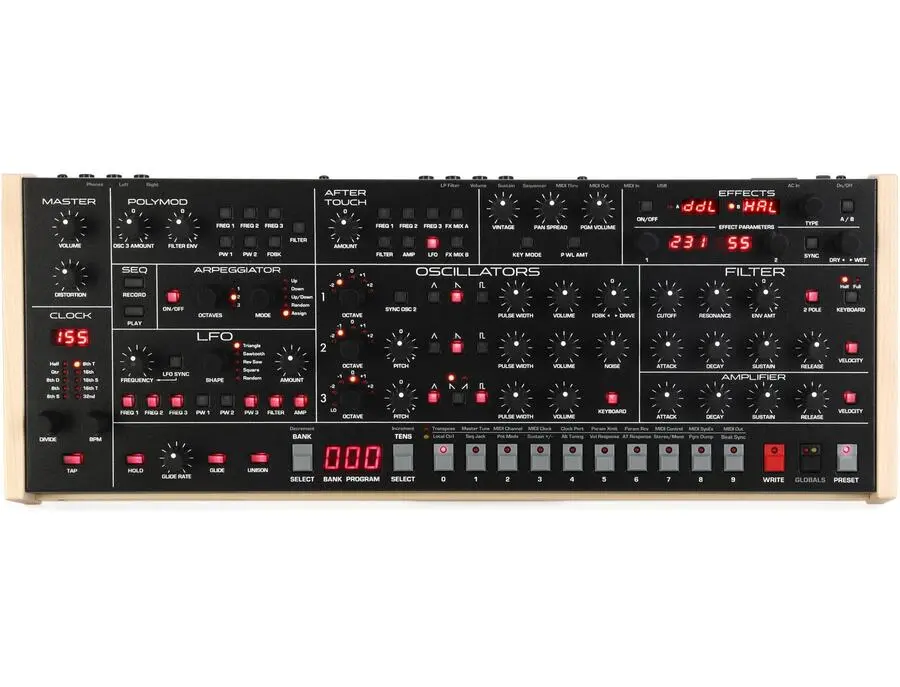

The Trigon-6 Desktop by Sequential is a 6-voice Polyphonic Analog Synthesizer.

The Sequential Trigon-6 Desktop Module delivers the same sound and hands-on sonic control as the Trigon-6 Keyboard. And the same analog signal path with discrete oscillators and filters and digital effects. It also has the same intuitive layout with full-sized knobs and switches.

At the heart of the Trigon-6 sound are three newly designed voltage-controlled oscillators (with triangle, saw, and pulse waves) and an enhanced version of the ladder filter that Sequential created for its Pro 3 mono synth. The switchable 2/4 pole resonant filter design has dedicated drive and feedback controls that make it effortless to go from silky and smooth to bold and crunchy with a simple knob turn.

Naturally, the Trigon-6 has the full complement of Sequential’s sound-sculpting features including super snappy envelopes, a syncable LFO with multiple waveforms and destinations, a polyphonic step sequencer, and an arpeggiator. The knob-per-function front panel of the Trigon-6 puts these controls at your fingertips. And the ready-made palette of 500 factory and 500 user presets provides classic basses, leads, and pads.

Also present is Sequential’s classic Poly Mod. Modulation sources are filter envelope and oscillator 3 (both with bi-polar control). Destinations include oscillator 1, 2, and 3 frequency, oscillator 1, 2, and 3 pulse width, filter cutoff, and feedback. Unison mode is here as well, featuring configurable voice count (1-6 voices for up to 18 simultaneous oscillators) and key modes.

The dual effects section provides studio-quality reverbs, delays (standard and BBD), chorus, flanger, phaser, and ring modulator. The independent stereo distortion effect adds on-demand aggression and is 100% analog.

Specs and Features:

MPE compatibility

3 Discrete VCOs per voice

Simultaneously selectable waveforms: Triangle, sawtooth, inverted sawtooth and pulse with variable width

Pulse width per oscillator

Hard Sync: Oscillator 1 syncs with Oscillator 2

LFO mode (Oscillator 3)

Keyboard tracking on/off (Oscillator 3)

Oscillator feedback and drive control for increased signal saturation

Source for white noise

Keyboard pitch tracking on/off

Switchable two/four-pole, discrete, resonant low-pass ladder filter per voice

Filter can be set to self-oscillation with resonance control

Bi-polar filter envelope value

Speed modulation of the envelope curve

Keyboard tracking: off, half, full

4-Stage (ADSR) envelope generator

Envelope speed modulation

LFO with 5 waveforms: Sine, Sawtooth, Inverted Sawtooth, Square and Random (sample and hold)

LFO sync

Poly Mod

Vintage knob recreates vintage synth characteristics by adding variations in component behaviour from voice to voice

Aftertouch

Clock

Arpeggiator

Polyphonic step sequencer with up to 64 steps and pauses

Effects: Analogue stereo distortion, two 24-bit / 48 kHz digital effects, including: Reverb (room, hall, plate and spring reverb), delay (full bandwidth digital delay and emulated bucket brigade delay), chorus, flanger, phaser and ring modulator

Illuminated pitch and modulation wheels

Transpose controls for an 8-octave range

Unison mode (monophonic) with configurable number of voices, from one to all six voices, chord memory and key modes

500 User and 500 factory presets in 10 banks of 100 programs each

Built-in power supply 100 - 240 volts at 50 to 60 Hz

Maple wood side panels

2 Line outputs: 6.3 mm jack

Stereo headphone output: 6.3 mm jack

MIDI In/Out/Thru

USB MIDI

Filter cutoff input for expression pedal: 6.3 mm jack

Input for expression pedal for volume control: 6.3 mm jack

Sustain pedal input: 6.3 mm jack

Input for sequencer start/stop footswitch

Dimensions (W x H x D) : approx. 559 x 215 x 115 mm

Weight: 4.95 kg
