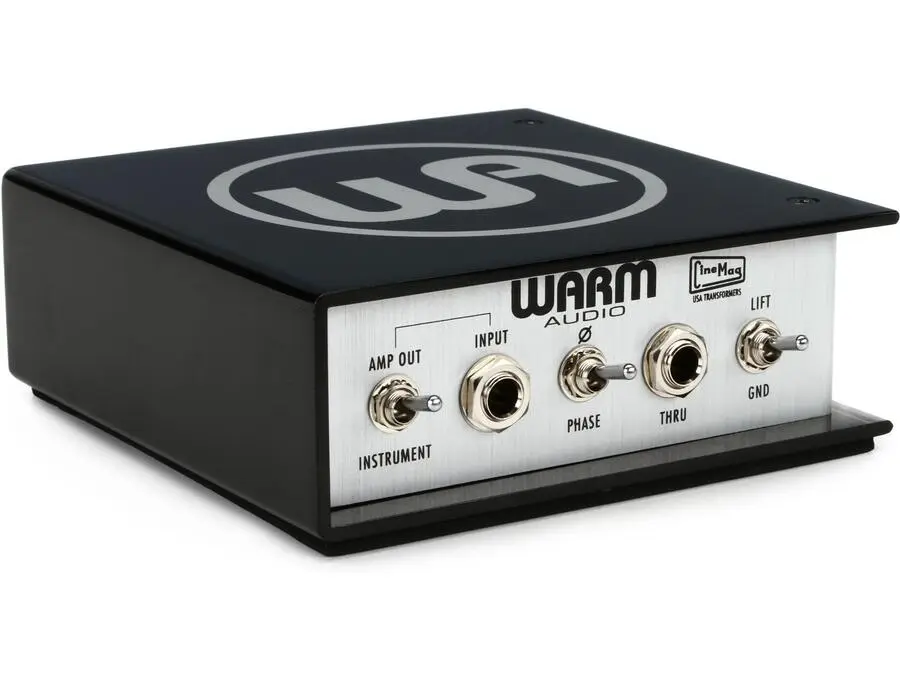

For musicians who value the integrity of their instrument's tone, the Warm Audio WA-DI-A Active Direct Box is a game-changer. Whether you're a guitarist, a bassist, a keyboardist, or any other instrumentalist, this direct box ensures your sound remains unblemished, even after long cable runs.

Boasting a custom-wound CineMag USA transformer, this rugged piece of gear guarantees a warm, rich tone that upholds sonic quality as its top priority. The device is housed in an extruded aluminum enclosure, which is engineered for longevity and equipped to handle the demands of the road or studio environment.

This Warm Audio Direct Box's key selling point is its ability to convert an instrument-level signal to mic-level without compromising on the sound quality. With this in your arsenal, you can plug your instrument directly into any mic pre, mixer, or recording device with confidence.

Key Features:

• Custom-wound CineMag USA transformer ensures maximum sonic integrity
• Capable of adjusting pad from -3 dB to -30 dB for precise control over your sound
• 600 ohms XLR output for reliable, high-quality signal transmission
• Input impedance of 1 mega ohm to accommodate a wide range of instruments
• Features phase reverse and ground lift for additional sound shaping options
• Operates on +48 V phantom power for enhanced performance
• Passive operation is also possible, offering flexibility in varying scenarios
• Robust aluminum housing construction able to withstand heavy use

Product specs

FAQs

What is the primary function of the Warm Audio WA-DI-A Active Direct Box?

The Warm Audio WA-DI-A is designed to convert high-impedance instrument signals to low-impedance, balanced outputs, ideal for connecting guitars or basses directly to mixing consoles or audio interfaces.

Can the Warm Audio WA-DI-A Active Direct Box operate in passive mode?

Yes, the WA-DI-A can switch between active and passive modes, allowing flexibility in different signal scenarios.

How is the Warm Audio WA-DI-A powered?

The WA-DI-A can be powered via 48V phantom power from a mixing console or with two 9V batteries for situations where phantom power is unavailable.

Does the Warm Audio WA-DI-A offer any attenuation options?

Yes, the WA-DI-A features a variable pad that can attenuate signals from -3dB to -30dB, providing control over input levels.

What connectivity options does the Warm Audio WA-DI-A provide?

The WA-DI-A includes a 1/4" input for instruments or amps, an XLR output for balanced connections, and a 1/4" thru output to pass the signal to an amplifier.

Is there a polarity switch on the Warm Audio WA-DI-A?

Yes, the WA-DI-A includes a polarity switch, which helps correct phase issues when interfacing with other audio equipment.
