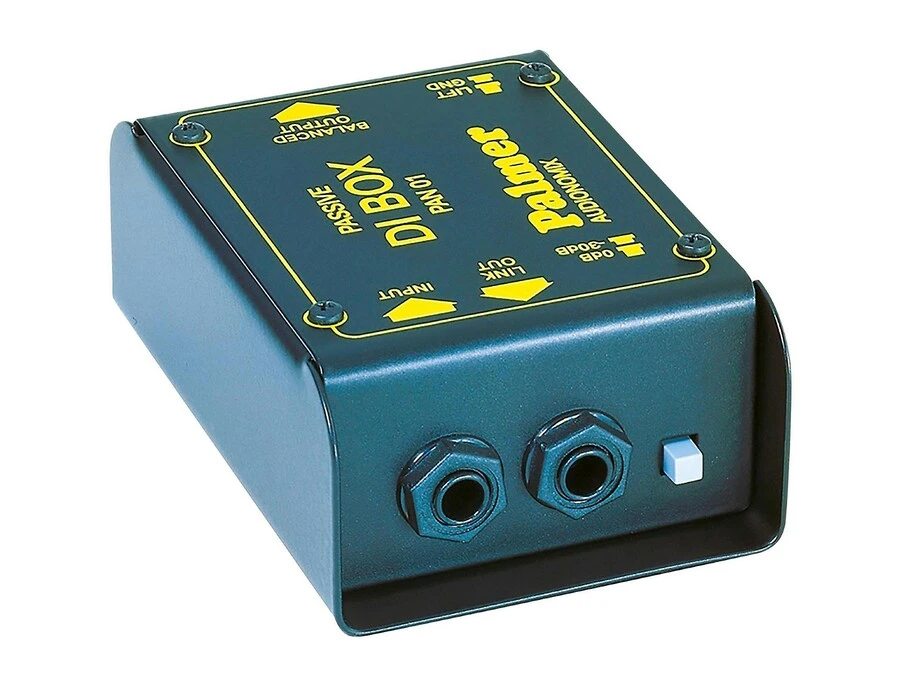

In the ever-evolving world of music production, the Palmer PAN 01 Passive DI Box stands as a reliable cornerstone for artists seeking clarity and precision in their sound. This compact yet powerful tool is crafted to seamlessly integrate into any studio or live setup, offering a clean and natural signal conversion from unbalanced to balanced audio. Whether you're handling line-level or speaker-level signals, the PAN 01's transformer-balanced XLR output ensures that every note and nuance is captured without compromise.

Engineered with a robust design, this direct box features a jack input with a parallel "THRU" output, allowing for versatile connections and routing options. The PAD switch offers flexibility by providing attenuation levels of 0dB to -30dB, catering to a wide range of instruments and audio sources. With an input impedance of 68 kOhm and an output impedance of 600 Ohm, the PAN 01 delivers a faithful reproduction of your sound, preserving the integrity and richness of your musical expression.

Ideal for musicians and audio engineers who demand high performance and durability, the Palmer PAN 01 Passive DI Box is an essential addition to your gear collection, backed by a 5-year manufacturer warranty for peace of mind in your investment.

Key Features:

• 1-Channel version
• PAD switch (0dB/-30dB)
• Jack input connector with parallel "THRU" output
• Transformer-balanced XLR output
• Input impedance: 68 kOhm
• Output impedance: 600 Ohm
• Transmission ratio of the symmetry transformer: 10 : 1
• Maximum output level: +4 dBu
• 5-Year manufacturer warranty

Owner's manual

Product specs

FAQs

What is the primary use of the Palmer PAN 01 Passive DI Box?

The Palmer PAN 01 Passive DI Box is designed to convert high-impedance instrument signals to low-impedance signals suitable for mixing consoles, making it ideal for live sound and studio recording applications.

Does the Palmer PAN 01 require any external power source?

No, the Palmer PAN 01 is a passive DI box, meaning it does not require any external power source, such as batteries or phantom power, to operate.

What type of inputs and outputs does the Palmer PAN 01 offer?

The Palmer PAN 01 features a 6.3 mm jack input and provides both XLR and 6.3 mm jack outputs, allowing for flexible connectivity options.

Can the Palmer PAN 01 handle high input levels?

Yes, the Palmer PAN 01 can handle a maximum input level of +54 dBu, making it suitable for a variety of instruments with strong output signals.

Does the Palmer PAN 01 have any features to reduce noise?

Yes, the Palmer PAN 01 includes a ground lift switch to help eliminate hum and noise caused by ground loops in audio systems.
