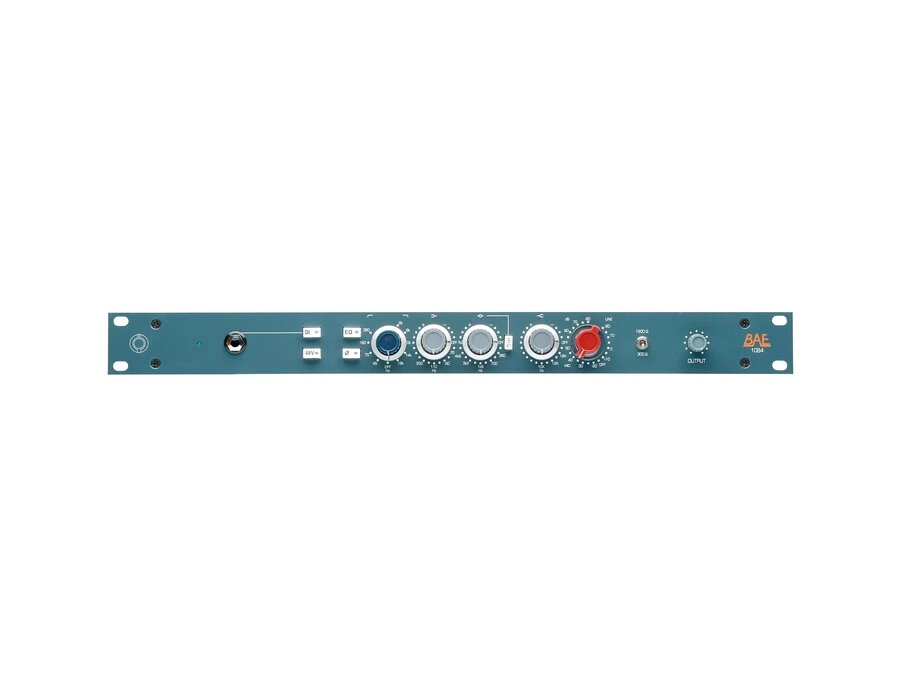

Discover the BAE 1084 w/ PSU, a modern homage to the iconic Neve 1084 console input module. This remarkable preamp captures the essence of the legendary 80 series consoles that helped define the sound of the 1970s. With its hand-wired, transformer-coupled Class A design, the BAE 1084 delivers unparalleled sonic warmth and character, making it an indispensable tool for any serious recording engineer.

Designed to accommodate various audio sources, the BAE 1084 features a front panel DI for seamless integration with instruments like guitars and synthesizers. Its comprehensive EQ section, complete with a highpass and lowpass filter, allows for precise tonal shaping, ensuring every nuance of your audio is captured with clarity. Whether you’re working with delicate ribbon mics or pumping up your favorite synth, this preamp has 80dB of gain to handle even the most demanding tasks.

The BAE 1084's authentic vintage sound is made possible by using original-spec components, such as Carnhill St. Ives transformers and Elma switches. Its selectable high frequencies and midrange bandwidth controls provide an array of tonal possibilities, while the built-in lowpass filter helps eliminate unwanted noise. As a testament to its versatility, the impedance switch has been conveniently moved to the front panel, allowing for quick adjustments on the fly.

Key Features:

• Hand-wired, Class A transformer-coupled design
• 80dB of gain suitable for ribbon mics
• Selectable high frequencies and midrange bandwidth
• Highpass filter: Off, 50Hz, 80Hz, 160Hz, 300Hz
• Lowpass filter: Off, 6kHz, 8kHz, 10kHz, 14kHz, 18kHz
• 3-band EQ section with selectable frequency centers
• High-impedance DI for various instruments
• Front panel impedance switch for convenience
• Built with original-spec components like Carnhill St. Ives transformers

Product specs

FAQs

What type of preamp is the BAE 1084?

The BAE 1084 is a solid-state preamp, known for its clarity and detailed sound reproduction, making it ideal for both vocal and instrument recordings.

Does the BAE 1084 support phantom power?

Yes, the BAE 1084 includes phantom power, allowing you to use condenser microphones that require external power.

What EQ features does the BAE 1084 offer?

The BAE 1084 features a 3-band EQ with selectable high and low frequencies, a mid-range peaking band with switchable 'High Q', and both high-pass and low-pass filters for precise tonal shaping.

How many channels does the BAE 1084 have?

The BAE 1084 is a single-channel preamp, designed for high-quality recording of individual audio sources.

What are the connectivity options for the BAE 1084?

The BAE 1084 offers 1 XLR mic input, 1 XLR line input, 1 1/4" DI Hi-Z input, and 1 XLR output, providing versatile connectivity for various recording setups.

Is the BAE 1084 suitable for rack mounting?

Yes, the BAE 1084 occupies 1U of rack space, making it easy to integrate into standard studio rack systems.
