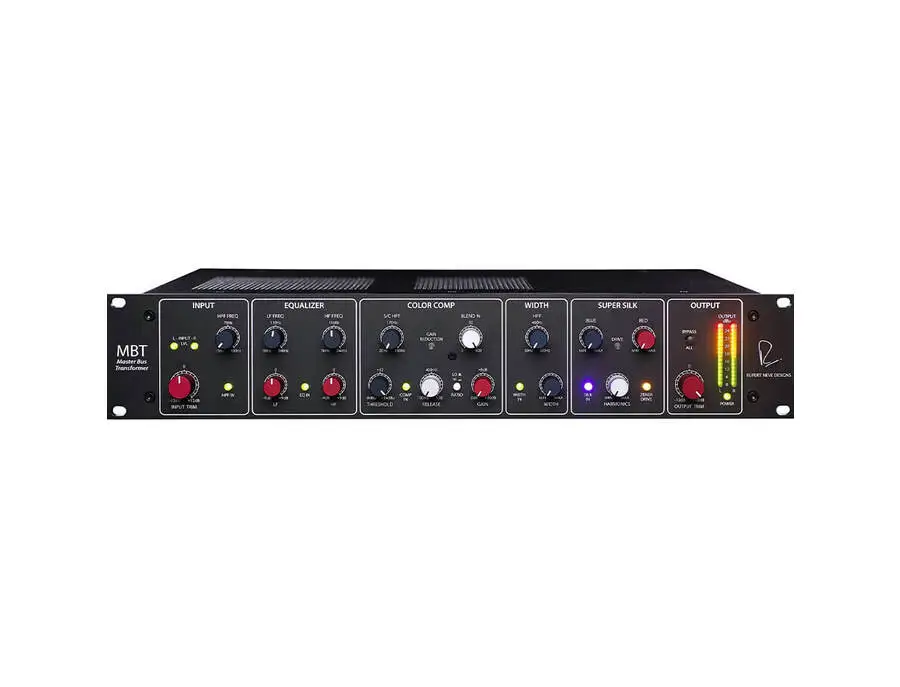

The MBT Master Bus Transformer by Rupert Neve Designs

Rupert Neve Designs Master Bus Transformer (also known as the MBT) is a high-end analog stereo processing unit designed to add musical color, depth, and width to mixes, stems, groups, or individual tracks. Built around Rupert Neve’s signature transformer-based circuitry and Class-A amplifiers, it combines a flexible signal path with multiple tonal-shaping tools that encourage creative experimentation. Its features include a gentle, musical 2-band EQ, an optical “Color Comp” compressor with blend control, a stereo Width section, and an advanced Super Silk harmonic saturation circuit for warmth and harmonic richness. The MBT brings legendary analog character to modern productions, making it a go-to tool for engineers looking to enhance tone beyond what digital tools can typically achieve. Its straightforward controls and powerful processing make it equally suited for mastering and mix bus coloration.

Specs:

• Form Factor: 19″ rackmount, 2 RU height, ~5.9 kg (13 lbs) unit weight
• Signal Processing Sections: Input Trim & High-pass (15–100 Hz), 2-Band Shelf EQ (LF: 30–240 Hz, HF: 3–24 kHz, ±9 dB)
• Color Comp (Optical Compressor): Selectable ratios 2:1 (LO) / 5:1 (HI), side-chain HPF (20–350 Hz)
• Variable release (100 ms–1.5 s), Blend for parallel compression, up to +20 dB make-up gain
• Stereo Width: Additive width control with HPF (50–800 Hz) to keep low end centered
• Super Silk Saturation: Independent Silk Red & Blue harmonic controls, Harmonics and Zener Drive for soft clipping and harmonic shaping
• I/O & Levels: Balanced XLR inputs/outputs, input impedance ~10 kΩ, max input +25.5 dBu, custom output transformers
• Performance: Noise better than −95 dBu (no features engaged), frequency response <5 Hz–30 kHz ±0.1 dB, crosstalk better than −95 dB @ 1 kHz
• Power: 100–240 VAC, ~70 W consumption
