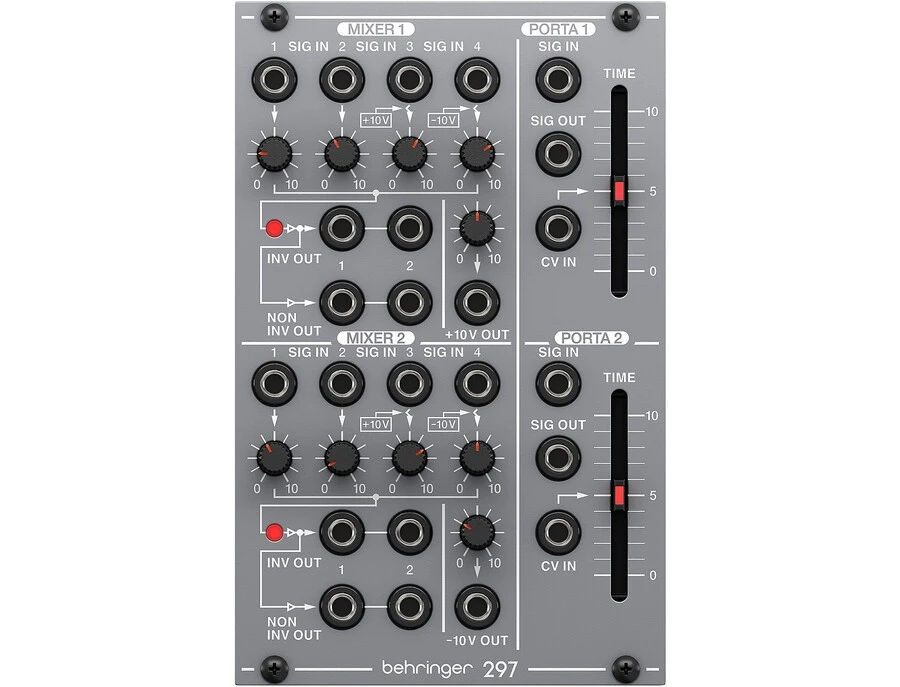

Unleash the potential of your modular synth setup with the Behringer 297 Dual Portamento/CV Utilities Eurorack Synthesizer Module. This versatile module pays homage to the legendary System 100M circuitry, offering you a faithful reproduction that delivers authentic analog warmth. Designed for the modern Eurorack enthusiast, the Behringer 297 is equipped with two independent portamento sections, allowing seamless glide effects that are perfect for creating smooth transitions between notes. Each portamento section features adjustable time settings—ranging from 10 ms to 3 seconds—and can be modulated via dedicated CV inputs for ultimate control over your soundscapes.

Not just a portamento module, the 297 also boasts two four-channel CV mixers. These mixers offer both normal and inverted outputs, giving you the flexibility to blend and manipulate various CV signals such as LFOs, envelopes, and more. Each mixer's constant voltage output supports a range of -10V to +10V, providing the foundation for complex patches and intricate sound designs.

Crafted to integrate effortlessly into any Eurorack setup, the Behringer 297 ensures easy installation with its included ribbon power cable and mounting screws. Whether you're expanding an existing rig or building your first modular system, this module is a budget-friendly choice that doesn't compromise on sound quality or functionality.

Key Features:

• Authentic reproduction of System 100M circuitry
• Dual portamento sections with adjustable time controls (10 ms - 3 s)
• Two four-channel CV mixers with normal and inverted outputs
• Constant voltage generators supporting -10V to +10V
• Eurorack compatible (16 HP width)
• Power requirement: 70 mA (+12 V) / 60 mA (-12 V)
• Includes ribbon power cable and mounting screws

Product specs

FAQs

What does the Behringer 297 Dual Portamento/CV Utilities module do?

The Behringer 297 module combines a portamento controller and CV utilities, allowing you to create smooth transitions between pitches and manipulate control voltages within your Eurorack system.

How many CV inputs and outputs does the Behringer 297 module have?

The Behringer 297 module features 2 independent CV mixers with 4 inputs each, including attenuators, and provides 2 normal and 2 inverted outputs for versatile signal routing.

Is the Behringer 297 suitable for vintage synth enthusiasts?

Yes, the Behringer 297 is an authentic reproduction of the original System 100M circuitry from the early '80s, making it ideal for those interested in vintage synthesizer sounds.

What are the power requirements for the Behringer 297 module?

The Behringer 297 requires a Eurorack case and power supply, using +12V/70mA and -12V/60mA.

Can the portamento on the Behringer 297 be modulated?

Yes, the Behringer 297 features dedicated CV inputs for modulating the portamento controllers, offering dynamic control over pitch transitions.
