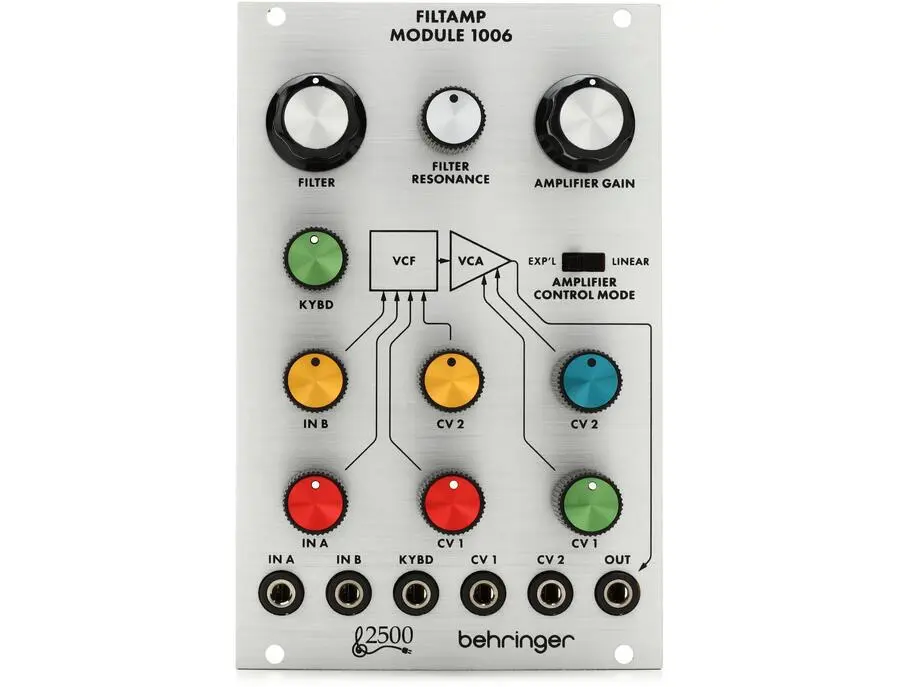

Unlock the sonic potential of your Eurorack setup with the Behringer 1006 FiltAmp 4-Pole VCF / VCA Eurorack Module. This module is a nod to the classic modular synthesizers of the 1970s, delivering vintage tones with modern versatility. At its heart is a smooth, four-pole ladder filter that allows you to create rich, resonant sounds with ease. Whether you're crafting lush soundscapes or gritty basslines, the 1006 FiltAmp gives you the tools to explore every sonic possibility.

Featuring a 24 dB low-pass filter, this module offers precise control over filter frequency and resonance, allowing for intricate sound shaping. Dual CV inputs with independent attenuators open up a world of modulation possibilities, letting you experiment with dynamic amplitude modulation and polyrhythmic tremolo effects. The integrated VCA, with its switchable linear and exponential control characteristics, ensures your sounds are as expressive as your performance.

The Behringer 1006 also includes keytracking input, which enables the VCF to respond dynamically to your keyboard playing, bringing your compositions to life. It's the perfect addition for both newcomers and seasoned Eurorack users seeking to expand their sonic palette without breaking the bank.

Key Features:

• Analog filter with VCA
• 24 dB low-pass filter with resonance control
• 2 adjustable signal inputs
• 2 CV inputs with attenuators for VCF and VCA
• Keytracking input for VCF with attenuator (1 V/oct.)
• Integrated VCA with gain control and switchable linear/exponential characteristics
• 16 HP Eurorack module width
• Current consumption: 22 mA (+12 V) / 20 mA (-12 V)

Product specs

FAQs

What type of filter does the Behringer 1006 FiltAmp module use?

The Behringer 1006 FiltAmp module utilizes a 24 dB per octave low-pass filter with a matched transistor ladder design, offering a classic analog sound.

Is the Behringer 1006 FiltAmp module compatible with all Eurorack systems?

Yes, the Behringer 1006 FiltAmp module is designed to be compatible with standard Eurorack systems, requiring a Eurorack case and power supply.

How much power does the Behringer 1006 FiltAmp module consume?

The Behringer 1006 FiltAmp module requires +12V/22mA and -12V/20mA, making it efficient in terms of power usage for a Eurorack setup.

What are the dimensions of the Behringer 1006 FiltAmp module?

The Behringer 1006 FiltAmp module has a depth of 1.7 inches (43mm) and occupies 16HP in a Eurorack case.

Does the Behringer 1006 FiltAmp module provide both VCF and VCA functions?

Yes, the Behringer 1006 FiltAmp module combines both a voltage-controlled filter (VCF) and a voltage-controlled amplifier (VCA) for versatile sound shaping.
