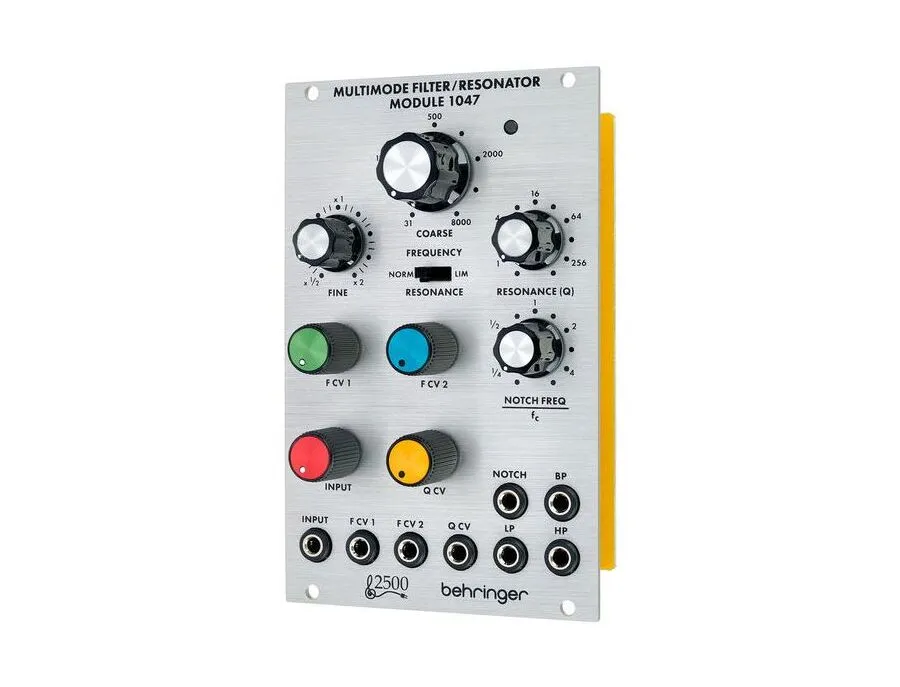

Immerse yourself in the classic sounds of the '70s with the Behringer Multimode Filter/Resonator Module 1047. This Eurorack-compatible module is a faithful recreation of the iconic ARP 2500 circuitry, renowned for its distinctive tonality favored by legendary artists like Kraftwerk and Jean Michel Jarre. The 1047 offers an analog multimode filter design, boasting a 12 dB per octave state variable filter with multiple simultaneous outputs for low-pass, high-pass, band-pass, and notch filter modes. This flexibility allows for unparalleled sonic exploration and manipulation, making it a must-have for both seasoned synthesists and newcomers to the modular synth world.

The module features a comprehensive set of controls, including coarse and fine frequency adjustments, a resonance control for shaping the characteristic peaks, and a notch frequency offset for additional tonal possibilities. Equipped with two CV inputs for frequency modulation and an additional CV input for resonance modulation, the 1047 ensures maximum creative flexibility. The integration of a switchable limiter mode prevents overload during high resonance settings, keeping your sound clean and controlled.

Designed for easy installation, the Behringer 1047 fits seamlessly into any Eurorack setup. Its compact 16 HP size and included ribbon power cable and mounting screws mean you can quickly incorporate it into your existing rig or new system with minimal hassle.

Key Features:

• Authentic reproduction of the ARP 2500 circuitry for vintage sound
• 12 dB per octave state variable filter with low-pass, high-pass, band-pass, and notch outputs
• Coarse and fine frequency controls, resonance control, and notch frequency offset
• Two CV inputs for frequency modulation and one CV input for resonance modulation
• Switchable limiter mode to prevent overload at high resonance settings
• Eurorack-compatible with a 16 HP width
• Power requirements: 55mA (+12V), 45mA (-12V)

Product specs

FAQs

What types of filters does the Behringer 1047 Multimode Filter/Resonator Module offer?

The Behringer 1047 offers lowpass, highpass, bandpass, and notch filter outputs, providing versatile sound shaping options for your modular synth setup.

Does the Behringer 1047 Multimode Filter/Resonator Module require a specific power supply?

Yes, the Behringer 1047 requires a Eurorack case with a compatible power supply, drawing +12V/55mA and -12V/45mA.

How many control voltage (CV) inputs does the Behringer 1047 have?

The Behringer 1047 Multimode Filter/Resonator Module features three CV inputs, allowing for extensive modulation possibilities.

What is the size of the Behringer 1047 Multimode Filter/Resonator Module in a Eurorack setup?

The Behringer 1047 occupies 16HP in a Eurorack case, making it a compact yet powerful addition to your modular synthesizer.

Can the Behringer 1047 Multimode Filter/Resonator Module be used for creating resonant effects?

Yes, the module includes resonance control, enabling you to create resonant effects and enhance the character of your sound.
