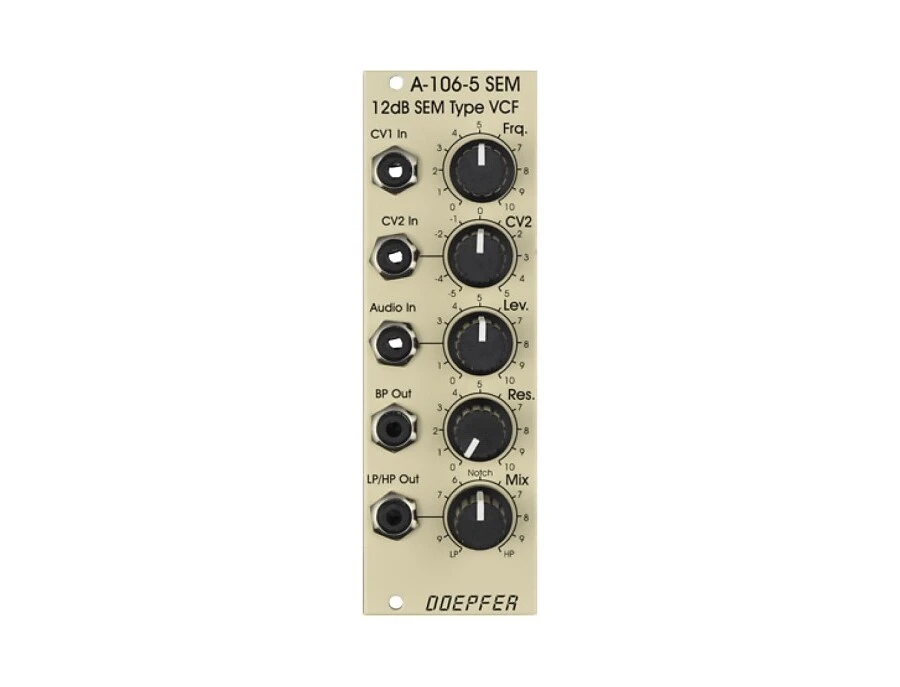

Unlock the iconic sound of the Oberheim SEM filter with the Doepfer A-106-5 12dB SEM Type Voltage Controlled Filter Special Edition. Designed for the discerning Eurorack enthusiast, this module offers a 12dB multimode filter that captures the essence of vintage synthesizer charm. With intuitive controls, including a Mix knob for seamless blending between bandpass, lowpass, notch, and highpass outputs, it provides versatile sound shaping capabilities. Although it won’t self-oscillate, the module invites creative exploration with the ability to drive it into distortion by cranking up the level control.

The Doepfer A-106-5 is an excellent choice for those looking to infuse their modular setup with classic SEM tones. It features a straightforward interface with inputs for Audio In, CV1, and CV2, the latter equipped with a polarizer for nuanced modulation. Whether you're crafting lush pads or gritty basslines, this filter is a must-have for sound designers and musicians seeking that timeless sonic character.

Key Features:

• Eurorack filter module inspired by the classic Oberheim SEM
• 12dB multimode filter with bandpass and lowpass/notch/highpass outputs
• Mix knob for blending filter types
• Non-self-oscillating design, capable of distortion when driven
• Inputs: Audio In with attenuator, CV1 in, CV2 in with polarizer
• Module size: 8HP, depth: 55mm
• Power consumption: +30mA (+12V) / -20mA (-12V)

Product specs

FAQs

What types of filters does the Doepfer A-106-5 SEM Filter offer?

The Doepfer A-106-5 SEM Filter provides multimode filtering capabilities, including low-pass, high-pass, and band-pass outputs, giving users versatile sound-shaping options for their modular synth setups.

How does the Doepfer A-106-5 SEM Filter integrate into a Eurorack system?

The Doepfer A-106-5 SEM Filter is an 8HP Eurorack module that requires a Eurorack case and power supply, drawing 30mA at ±12V DC, making it easy to integrate into any standard Eurorack setup.

What is the sound character of the Doepfer A-106-5 SEM Filter?

The Doepfer A-106-5 SEM Filter is known for its smooth and musical sound, inspired by the classic Oberheim SEM filter, offering a warm and organic tonal character that is ideal for both subtle and aggressive filtering.

Can the Doepfer A-106-5 SEM Filter handle both audio and control voltage inputs?

Yes, the Doepfer A-106-5 SEM Filter has an audio input and a CV input, allowing for modulation and dynamic sound manipulation within a modular synth environment.

What are the output options on the Doepfer A-106-5 SEM Filter?

The Doepfer A-106-5 SEM Filter provides two outputs: a mix of low-pass and high-pass outputs and a separate band-pass output, enabling flexible routing and sound design possibilities.
