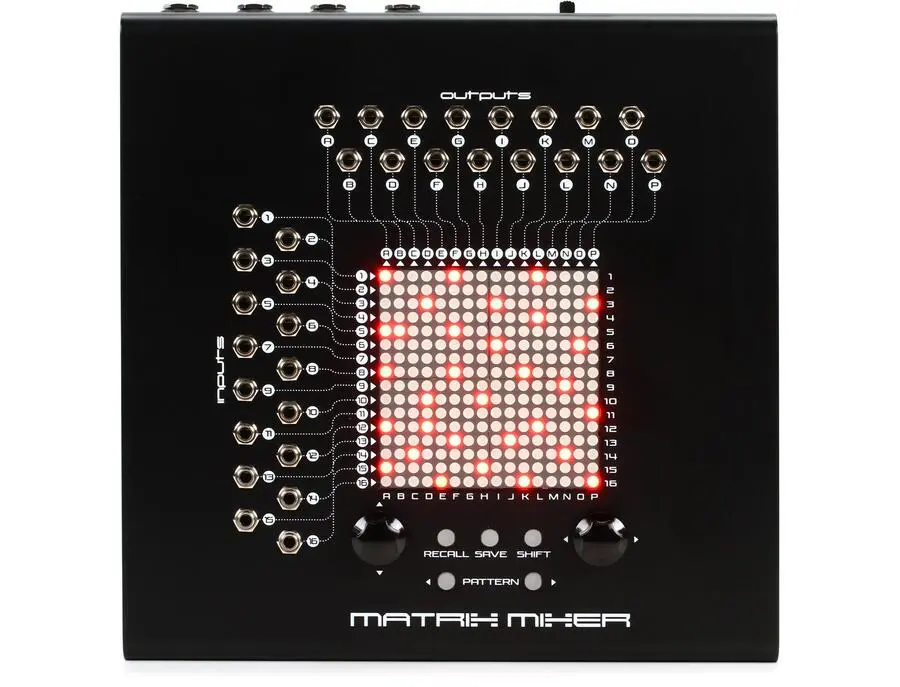

Meet the Erica Synths Matrix Mixer, a powerhouse of connectivity and control for your studio setup. This unit boasts 16 DC-coupled and buffered inputs and outputs (3.5 mm jack), offering a diverse range of routing possibilities for your audio signals. With a staggering 256 possible connections, each with three distinct gain levels, it gives you an unparalleled control over your sound like never before.

No more fiddling around with complex configurations. The Matrix Mixer comes equipped with memory for 254 different configurations, enabling you to recall your preferred settings with ease. Moreover, the device allows preset changes via MIDI program changes, making it an incredibly versatile companion for any studio session.

For those who love to experiment, the Matrix Mixer's random mode offers a definable range and selectable density, adding an extra layer of creativity to your sound manipulation. The unique Piano Mode allows temporary activation of a matrix connection, offering a whole new way to shape your sound.

In addition to its 3.5mm inputs and outputs, the Matrix Mixer also includes 2 additional inputs/outputs via 6.3mm jack sockets, further extending its compatibility. For your convenience, this unit comes with an external power supply (12V DC).

Key Features:

• 16 DC-coupled and buffered inputs and outputs (3.5 mm jack)
• 256 Possible connections, each with 3 levels (Gain=1, Gain=0.7, Gain=0.3)
• Memory for 254 configurations
• Preset change via MIDI program change
• Random mode with definable range and selectable density
• Piano Mode allows temporary activation of a matrix connection
• 2 Additional inputs/outputs via 6.3 mm jack sockets
• MIDI In (5-pin DIN)
• Includes external power supply (12V DC)

Owner's manual

Product specs

FAQs

What is the primary function of the Erica Synths Matrix Mixer?

The Erica Synths Matrix Mixer allows you to route audio signals from multiple sources to different destinations, enabling the creation of separate mixes from various output signals or buses.

How many input and output channels does the Erica Synths Matrix Mixer support?

The Erica Synths Matrix Mixer typically supports multiple input and output channels, facilitating complex routing configurations suitable for modular setups and experimental audio processing.

Is the Erica Synths Matrix Mixer suitable for live performances?

Yes, the Erica Synths Matrix Mixer is well-suited for live performances due to its flexible routing capabilities, allowing performers to manage and manipulate audio signals dynamically on stage.

Can the Erica Synths Matrix Mixer integrate with modular synthesizer setups?

Absolutely, the Erica Synths Matrix Mixer is designed to integrate seamlessly with modular synthesizer setups, providing versatile routing options for creative sound design and experimentation.

What are the dimensions and weight of the Erica Synths Matrix Mixer?

The Erica Synths Matrix Mixer has dimensions of 1.73" in height, 8.85" in width, and 8.89" in depth, with a weight of 2.8 lbs, making it a compact and portable solution for various audio applications.
