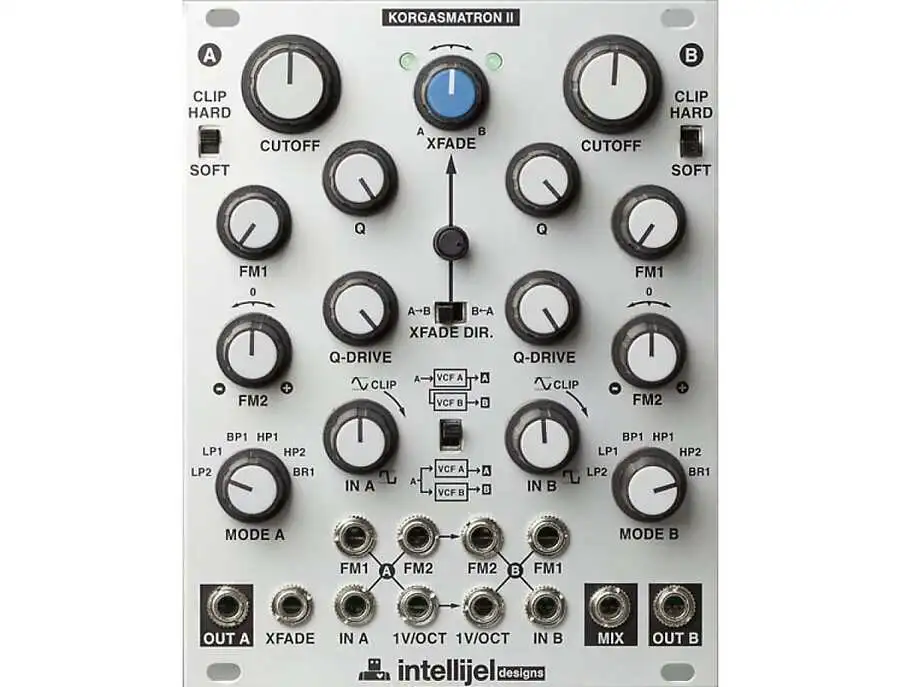

Discover the sonic versatility of the Intellijel Korgasmatron II Dual VCF / VCO / Crossfade Eurorack Synth Module, a powerhouse for both live performances and studio sessions. Inspired by the legendary Korg MS-20 filter, this module features dual multimode filters that offer a spectrum of sound design possibilities. Each filter provides six selectable modes, including lowpass, bandpass, highpass, and band reject, with the flexibility to configure them in series, parallel, or independently.

The Korgasmatron II isn’t just about filter magic; it doubles as a VCO, boasting a reliable 1V/Oct tracking over 3-4 octaves. This allows you to dive into self-oscillation for creating rich, resonant tones. The module also includes a crossfade function, enabling seamless blending between the two filter sections with CV input for dynamic sound sculpting. Whether you're crafting smooth ambient pads or aggressive leads, you can add soft and hard clipping at the output stage for anything from subtle warmth to full-bodied distortion.

With rugged panel-bolted knobs and a skiff-friendly design, the Korgasmatron II ensures enduring performance. It’s a must-have for modular enthusiasts seeking a robust, adaptable filter module that's as much about precision as it is about creativity.

Key Features:

• Dual resonant multimode filter/VCO module
• Six filter modes per section: lowpass (1- and 2-pole), bandpass (1-pole), highpass (1- and 2-pole), band reject
• Crossfade control with CV input for blending filters
• Tracks 1V/Oct over 3-4 octaves as a VCO
• Soft clipping at resonance and optional soft/hard clipping at the output
• Panel-bolted knobs for durability
• Skiff-friendly design
• Size: 20HP wide, 38mm deep
• Power usage: 98mA (+12V), 88mA (-12V)

Product specs

FAQs

What are the main functions of the Intellijel Korgasmatron II module?

The Intellijel Korgasmatron II functions as a dual voltage-controlled filter (VCF), voltage-controlled oscillator (VCO), and crossfader. This versatility allows it to shape and manipulate sound in multiple ways within a Eurorack modular synth setup.

How does the Korgasmatron II differ from other filter modules?

The Korgasmatron II offers dual filters with multiple modes, including low-pass, high-pass, band-pass, and notch, along with a unique crossfade feature between the filters. This provides a wide range of tonal possibilities and dynamic sound sculpting options.

Can the Korgasmatron II be used as an oscillator?

Yes, the Korgasmatron II can function as a voltage-controlled oscillator (VCO), making it a versatile addition to any Eurorack system, capable of both filtering and generating sound.

What is the horizontal pitch size of the Korgasmatron II module?

The Intellijel Korgasmatron II occupies 20HP in a Eurorack modular system, making it relatively compact for its range of features.

Is the Korgasmatron II suitable for beginners in modular synthesis?

While the Korgasmatron II offers advanced features, its intuitive layout and multifunctionality make it accessible for beginners interested in exploring complex sound design within a modular setup.
