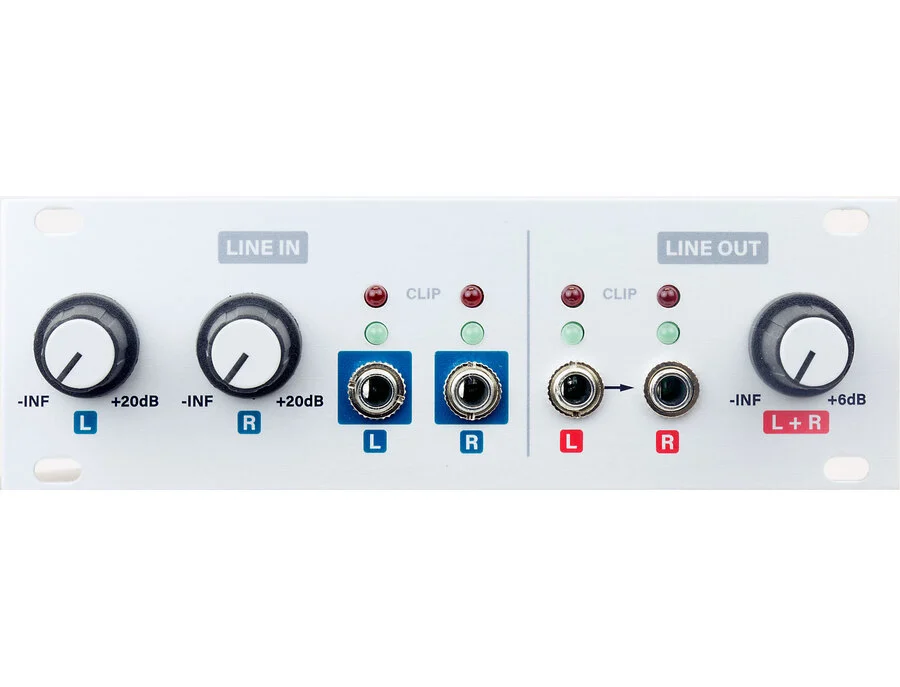

Elevate your modular synthesizer setup with the Intellijel Audio I/O 1U, a dynamic bridge between your Eurorack system and the outside world. Ideal for both studio and live performance environments, this module provides seamless integration with a variety of Intellijel units, including the Mixup, Outs, and Headphones 1U, not to mention the versatile Palette and 7U cases. Whether you're looking to interface with external mixers or to capture your modular magic into a DAW, the Audio I/O 1U offers robust connectivity with its balanced line inputs and outputs, complete with LED level meters for precision monitoring.

The module's design ensures that you can adjust levels on the fly, thanks to its user-friendly controls. With a 10 HP width, it fits neatly into your existing setup without any fuss, while consuming minimal power—a boon for those who are conscious about conserving space and energy. The Intellijel Audio I/O 1U is not just a utility; it's a gateway to new sonic possibilities, making it an essential addition for any serious modular enthusiast.

Key Features:

• Compatible with Intellijel Designs Mixup, Outs, Stereo Mixer 1U, XY IO 1U, Headphones 1U, Palette Cases, and 7U Cases
• 2 x 6.3 mm jack balanced line inputs with LED level meter and adjustable input level (+20dB gain)
• 2 x 6.3 mm jack balanced line outputs with LED level indicator and adjustable output level
• Current consumption: 75mA (+12V) / 70mA (-12V)
• Width: 10 HP
• Depth: 39 mm

Product specs

FAQs

What is the primary function of the Intellijel Audio I/O 1U module?

The Intellijel Audio I/O 1U module is designed to interface your modular synth with external audio equipment, providing balanced input and output connections for seamless integration with other studio gear.

Does the Intellijel Audio I/O 1U require any specific power supply?

The Intellijel Audio I/O 1U fits into a standard Eurorack case and uses the case's power supply. It requires a standard Eurorack power connection.

Can the Intellijel Audio I/O 1U handle both line-level and modular-level signals?

Yes, the Intellijel Audio I/O 1U is designed to convert modular-level signals to line-level signals and vice versa, making it ideal for interfacing with professional audio equipment.

How wide is the Intellijel Audio I/O 1U module in a Eurorack setup?

The Intellijel Audio I/O 1U module is 10 HP wide, fitting comfortably into most Eurorack cases without taking up excessive space.
