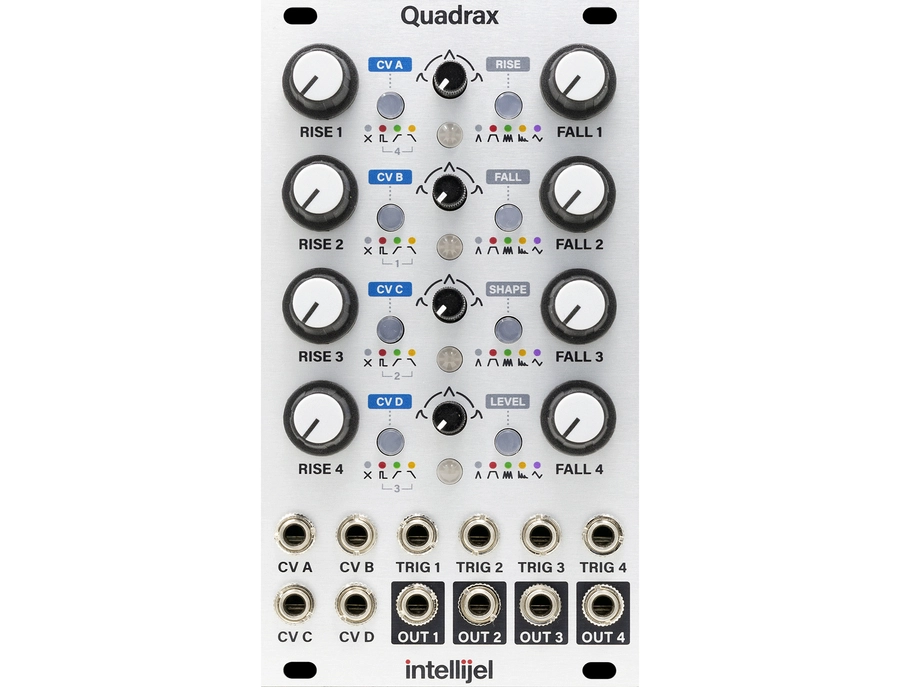

Step into a world of sonic exploration with the Intellijel Quadrax, a 4-channel multifunction Eurorack module that redefines modulation possibilities. Whether you're crafting ambient soundscapes or chaotic noise, Quadrax offers a toolkit tailored for every sound architect. Each channel of this versatile module boasts five distinct modes: Attack/Decay, Attack/Hold/Release, cycling envelope, pulse burst, and a morphable LFO. This allows you to seamlessly shape and control your sound with precision.

With its extensive CV input capabilities, the Quadrax opens a universe of patching possibilities, letting you manipulate attack and decay parameters and create complex, evolving envelopes. Need more dynamism? Link multiple channels to design intricate, multi-stage envelope curves that push the boundaries of traditional sound design.

For those who thrive on customization, the module offers adjustable characteristic curves from logarithmic to linear to exponential per channel, ensuring that every modulation is as unique as the artist themselves. Expand your creative horizons by pairing it with the Intellijel Qx module (sold separately), and watch your modular setup transform into an unparalleled powerhouse of sonic potential.

Key Features:

• 4-channel function and envelope generator
• Five modes per channel: AD, AHR, cycle, pulse burst, morphing LFO
• CV inputs for attack/decay control per channel
• Channels can be chained for complex envelope creation
• Adjustable characteristic curve: logarithmic to linear to exponential
• Trigger input and output per channel
• Compatible with Intellijel Qx module for expansion
• Current consumption: 106mA (+12V) / 9mA (-12V)
• Width: 14 HP; Depth: 38 mm

Owner's manual

Product specs

FAQs

What are the main functions of the Intellijel Quadrax module?

The Intellijel Quadrax is a multifunction Eurorack module that serves as a quad function generator, burst generator, and LFO. It features a CV matrix for versatile modulation possibilities, making it suitable for complex sound design and modulation tasks in modular setups.

Can the Quadrax be used as an LFO in a modular synthesizer setup?

Yes, the Intellijel Quadrax can function as an LFO, allowing you to modulate other modules in your Eurorack system with variable waveforms and rates, enhancing your sound design capabilities.

What is the depth and size of the Intellijel Quadrax module?

The Intellijel Quadrax has a depth of 1.49 inches (38mm) and occupies 14HP in a Eurorack case, making it a compact yet powerful addition to your modular synthesizer setup.

Does the Intellijel Quadrax require a specific power supply?

The Intellijel Quadrax requires a standard Eurorack case and power supply, with power usage specifications of +12V/106mA and -12V/9mA.

How does the Quadrax differ from the original Intellijel Quadra?

The Quadrax is an updated version of the Quadra, offering enhanced features like a CV matrix and additional modes such as burst generation, expanding its functionality beyond the classic AD, AR, and cycling envelopes of the Quadra.
