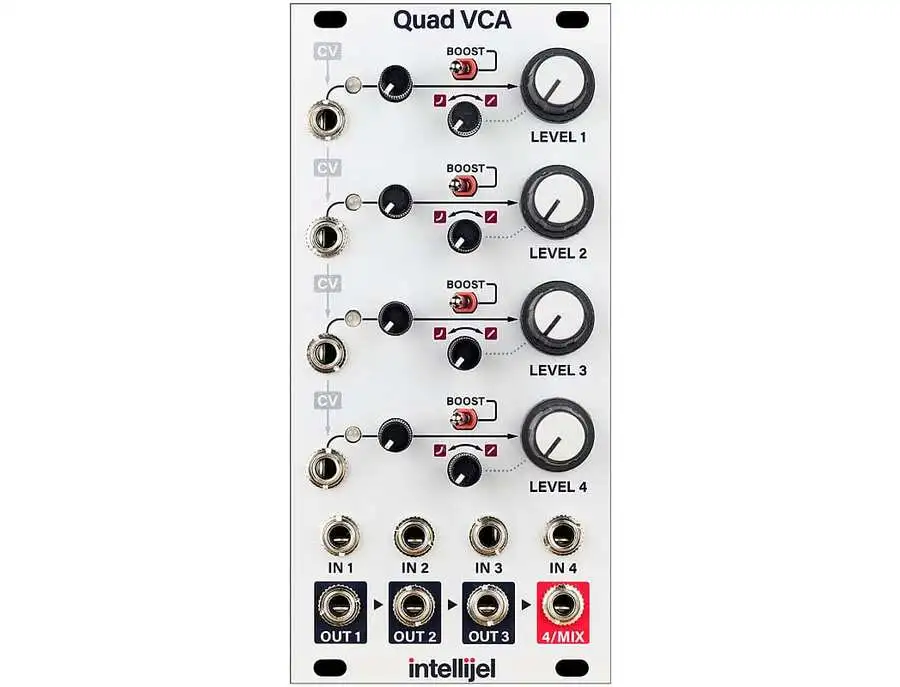

The Intellijel Quad VCA Eurorack Synth Module is a versatile powerhouse designed to elevate your modular synthesizer setup. Whether you're diving into complex sound design or crafting simple patches, this module offers a world of possibilities. Equipped with four independent voltage-controlled amplifiers, it functions as both a mixer and a signal booster, making it an indispensable tool for synthesists at every level.

The Quad VCA's standout feature is its continuously variable response, allowing you to effortlessly switch between linear and exponential curves for each VCA. This flexibility enables you to tailor the module's behavior to suit your specific creative needs. For hands-on control, each VCA comes with manual level controls, perfect for mixing signals or biasing CV inputs. The dual-color LED CV attenuators provide real-time feedback, making it easy to monitor bipolar CV signals.

Designed for seamless integration, each CV input and output is normalled to its neighbor, simplifying the process of creating submixes. And when you need an extra push, the built-in boost switch offers a 6dB increase in output level, ensuring your signals are always heard. With its intuitive interface and robust features, the Intellijel Quad VCA is the ideal companion for any Eurorack enthusiast looking to expand their sonic palette.

Key Features:

• Four independent VCAs with continuously variable response from linear to exponential
• Manual level controls for mixing or biasing CV signals
• Dual-color LED CV attenuators for monitoring bipolar CV signals
• Normalled CV inputs and outputs for easy submix creation
• Boost switch for 6dB output level increase
• Compact size: 12HP wide, 29mm deep
• Power usage: 65mA (±12V)

Product specs

FAQs

What is the primary function of the Intellijel Quad VCA Eurorack Synth Module?

The Intellijel Quad VCA functions as both a voltage-controlled amplifier and a cascaded mixer, providing versatile control over audio and CV signals in a modular synth setup.

How many HP does the Intellijel Quad VCA module occupy in a Eurorack system?

The Intellijel Quad VCA occupies 12HP in a Eurorack system, making it a compact yet powerful addition to your modular setup.

What power requirements does the Intellijel Quad VCA have?

The Intellijel Quad VCA requires a ±12V DC power supply with a current draw of 65mA, and it must be installed in a compatible Eurorack case.

Can the Intellijel Quad VCA be used for both audio and CV signals?

Yes, the Intellijel Quad VCA is designed to handle both audio and control voltage (CV) signals, offering flexibility in sound shaping and modulation tasks.

Does the Intellijel Quad VCA offer linear or exponential response curves?

The Intellijel Quad VCA provides both linear and exponential response curves, allowing users to tailor the VCA's behavior to suit different modulation needs.
