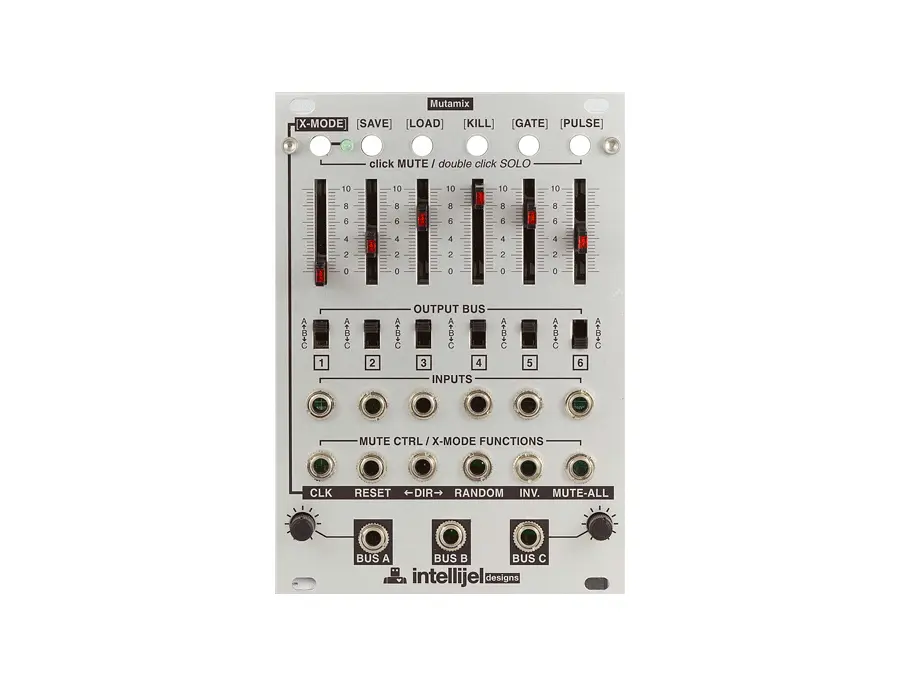

The Intellijel Mutamix is your gateway to the world of adaptable and dynamic sound creation, offering a six-channel mixer that elegantly balances complexity with user-friendly control. This modular synth component is designed for musicians and sound designers who crave versatility and precision in their audio processing. With the ability to route CV or audio signals to three distinct bus outputs, the Mutamix opens up a plethora of possibilities for creative sound manipulation.

Featuring a digital system for controlling six discrete VCAs, the Mutamix can mute or attenuate signals based on CV input, offering various modes that enable evolving patches and intricate signal chain switching. Its intuitive interface ensures that even the most complex setups remain manageable, allowing you to focus on the art of crafting your unique sonic landscapes. Whether you're crafting subtle ambient sounds or bold experimental compositions, the Mutamix provides the tools you need to bring your musical vision to life.

Key Features:

• Six-channel mixer for CV or audio signals
• Route signals to three independent bus outputs
• Digital system for controlling six discrete VCAs
• Multiple modes for muting or attenuating signals
• Perfect for complex signal chain switching and evolving patches

FAQs:

What is the Intellijel Mutamix? What is its primary function in a Eurorack system?
The Intellijel Mutamix is a compact and powerful 6-channel voltage-controlled mixer, muter, and attenuverter. It is used to mix audio or control voltage signals, with individual level control, muting options, and voltage-controlled amplitudes per channel. It is ideal for creating dynamic signal blends and performance-oriented control in modular systems.

How does the voltage-controlled mix level work, and why is it useful?
Each input has a built-in VCA, so you can modulate its amplitude using an envelope, LFO, or sequencer. This allows for:
- Real-time mix automation
- Ducking and sidechain-style effects
- Animated modulation of audio or CV
- Rhythmic chopping or pulsing of individual sources

Can the Mutamix process both audio and CV?
Yes. It is transparent enough for mixing audio and accurate enough for combining CV signals. This makes it useful as both a sound mixer and a modulation utility.

What are the mute buttons and CV mute inputs for?
- The physical mute buttons toggle each channel on or off manually
- CV mute inputs let you gate a channel using external triggers or clocks
This gives you hands-on and programmable control over which channels are active, perfect for live sets or rhythmic modulation control.

What are the dimensions and power requirements?
- Width: 10HP
- Depth: approximately 40mm
- Current draw: around 60mA (+12V), 50mA (-12V)
It fits most Eurorack cases and does not require a +5V rail.

Can I chain multiple Mutamix modules together?
Yes. Use the rear header to cascade the mix bus into another Mutamix, creating larger multi-channel mixers while maintaining a single output path.

Is the Mutamix a good choice for a primary mixer?
Yes. It is an excellent choice due to its:
- Flexibility for both audio and CV
- Performance-friendly interface
- Compact size
- Expandability
It covers many mixing needs in one module.

What are some creative patching techniques with the Mutamix?
- Submix multiple drum voices
- Blend modulation sources for a single destination
- Control FX send amounts with CV
- Use mute gates for rhythmic patterning
- Feedback patching for drones or noise
- Trigger-based modulation switching
- Mix CV shapes into one master envelope

Product specs

FAQs

What functions does the Intellijel Mutamix module offer in a Eurorack setup?

The Intellijel Mutamix functions as an attenuator, mixer, router/switcher, and sequencer, making it a versatile component for managing audio and CV signals within a modular synth setup.

How many channels does the Intellijel Mutamix support, and what is its size?

The Intellijel Mutamix supports 6 channels and occupies 18HP in a Eurorack modular synth case, providing ample control over multiple audio or CV sources.

Can the Intellijel Mutamix be used to sequence audio and CV signals?

Yes, the Intellijel Mutamix includes a sequencer function, allowing for the sequencing of audio and CV signals, which can add dynamic and rhythmic variations to your modular synth performances.

Is the Intellijel Mutamix suitable for routing and switching tasks in a modular synth?

The Intellijel Mutamix is designed to handle routing and switching tasks effectively, enabling users to dynamically alter signal paths and configurations within their Eurorack setup.
