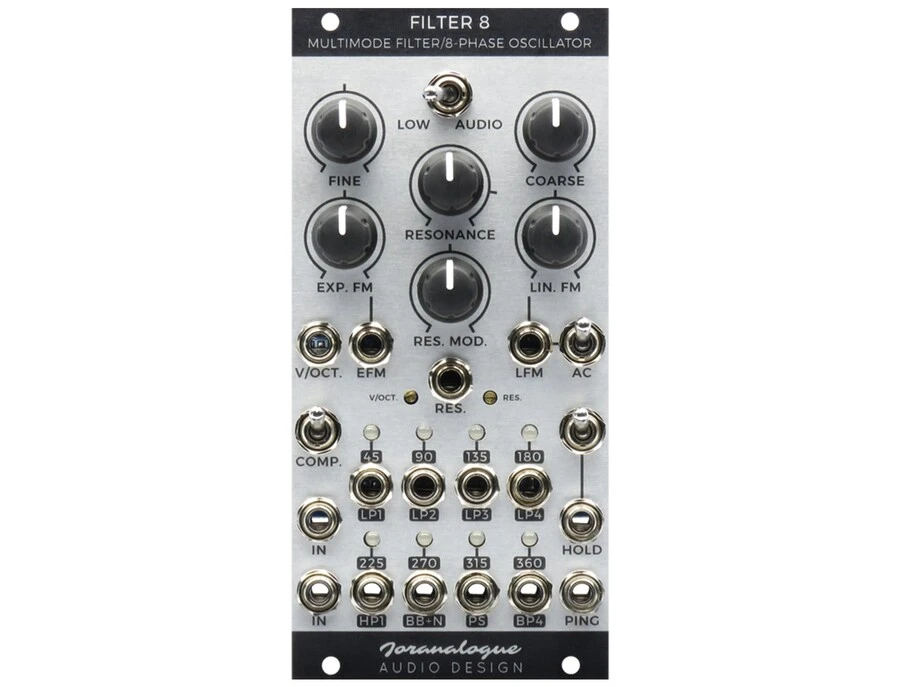

Explore the sonic possibilities with the Joranalogue Audio Design Filter 8, an innovative Eurorack module that redefines what a multimode filter can do. Whether you’re an experimental sound designer or a modular synth enthusiast, this versatile component offers a rich palette of effects that can transform your setup. The Filter 8 functions not only as a multimode filter and 8-phase oscillator but also as a phase shifter and bandpass filter. Its OTA-based 4-pole filter provides you with eight separate outputs, each giving you distinct characteristics such as low-pass, high-pass, band-pass, and notch configurations.

Dive deeper into modulation with its linear and exponential FM controls alongside bipolar attenuators, allowing for precise sound sculpting. The module includes a "Ping" input that triggers an internal transient generator, ideal for crafting unique drum sounds. Plus, with its switchable LFO mode and level compensation, the Filter 8 is designed to handle both audio and CV signals seamlessly, making it a must-have for any modular rig.

Key Features:

• Multimode filter and 8-phase oscillator
• OTA-based 4-pole filter
• Eight separate filter pole outputs: Low-pass (6 dB, 12 dB, 18 dB, 24 dB), high-pass (6 dB), band-pass, and notch
• Linear and exponential FM with bipolar attenuators
• 1V/oct. CV input
• CV input with bipolar attenuator for resonance
• "Ping" input for drum sound creation
• "Hold" input and switch to freeze filter core
• Works as an 8-phase sine oscillator with 45° phase shift
• Switchable LFO mode and level compensation
• Compatible with audio and CV signals
• Two audio inputs
• Current consumption: 75 mA (+12 V) / 75 mA (-12 V)
• Width: 12 HP
• Depth: 43 mm

Product specs

FAQs

What type of filter is the Joranalogue Audio Design Filter 8?

The Joranalogue Audio Design Filter 8 is a multimode filter offering eight simultaneous outputs, including low-pass, high-pass, band-pass, and more, making it highly versatile for sound design in modular synthesizer setups.

Is the Joranalogue Filter 8 suitable for creating complex modulation effects?

Yes, the Filter 8's phase-shifting capabilities and multiple outputs allow it to be used as a versatile modulation source, providing complex LFO and envelope follower effects.

How does the Joranalogue Filter 8 integrate into a Eurorack setup?

The Filter 8 is a 12 HP Eurorack module, making it compact and easy to integrate into existing modular setups, offering flexible routing options with its multiple input and output jacks.

Can the Joranalogue Filter 8 be used for both audio and CV processing?

Yes, the Filter 8 is designed to handle both audio and control voltage (CV) signals, making it a versatile tool for both sound shaping and modulation duties in a modular synthesizer system.

What are the standout features of the Joranalogue Filter 8?

The standout features include its eight simultaneous outputs, phase modulation capabilities, and the ability to function as a quadrature sine oscillator, offering a wide range of creative possibilities for sound design.
