Discover a new level of studio precision with the LaChapell Audio 500CS, a versatile 500 Series channel strip that seamlessly integrates a solid-state preamp with an Op Amp foundation and a VCA compressor into a single, dynamic unit. With its innovative design, the 500CS allows each section to function independently or as a cohesive unit, offering you unparalleled flexibility in sound shaping. Whether you’re tracking vocals or dialing in the perfect guitar tone, this channel strip has you covered.

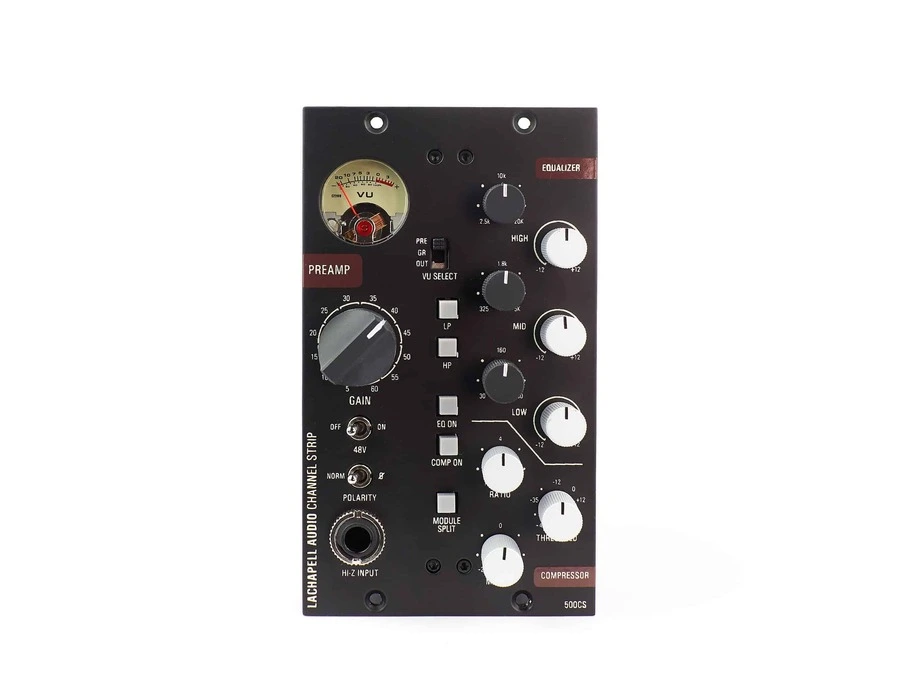

On the left, the 500CS boasts a pristine preamp complete with a front-panel hi-Z input, ideal for capturing all the nuances of your instruments. The right side features a mastering-grade 3-band EQ, accompanied by fixed low- and high-pass filters to refine your sound with precision. The VCA compressor, equipped with ratio and threshold controls, ensures your tracks remain punchy and clear, while the makeup-gain stage lets you fine-tune your output levels. A vintage-style VU meter provides real-time visual feedback, selectable between preamp level, gain reduction, and output, for an engaging hands-on experience.

Crafted with boutique-quality components but without the boutique price tag, the LaChapell Audio 500CS is a trusted tool for both seasoned professionals and budding audio engineers aiming to elevate their recordings.

Key Features:

• Solid-state preamp with Op Amp foundation
• 3-band mastering-grade EQ
• VCA compressor with ratio and threshold controls
• Front-panel hi-Z input
• Selectable VU meter for preamp level, gain reduction, and output
• Low- and high-pass filters
• Independently functioning modules for versatile use
• 48V phantom power and polarity reverse options

Product specs

FAQs

What is the LaChapell Audio 500CS used for in a studio setting?

The LaChapell Audio 500CS is a complete 500 series channel strip that combines a preamp, EQ, and compressor, making it ideal for tracking and mixing with mastering-quality sound.

Does the LaChapell Audio 500CS have a high pass filter?

Yes, the LaChapell Audio 500CS features a high pass filter with a 6 dB per octave slope at 142 Hz, useful for reducing low-frequency rumble.

What type of compressor is included in the LaChapell Audio 500CS?

The LaChapell Audio 500CS includes a VCA compressor with selectable hard/soft knee settings, offering versatile dynamic control.

Can the LaChapell Audio 500CS handle high input levels?

Yes, the LaChapell Audio 500CS can handle a maximum input level of 27.65 dBu, making it suitable for a wide range of signal sources.

What is the frequency response of the LaChapell Audio 500CS?

The LaChapell Audio 500CS offers a frequency response from 5 Hz to 36 kHz (+/- .28 dBu), ensuring clear and accurate sound reproduction across the audio spectrum.
