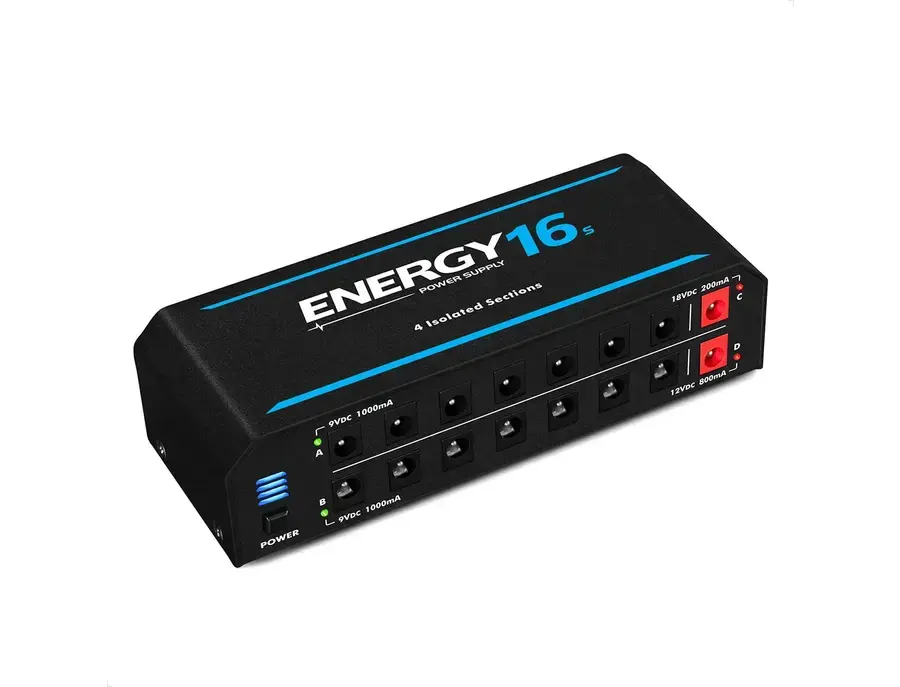

The Energy 16s power supply is an excellent solution for powering both analog and digital pedals. Ideal for medium and large pedalboards.

It features 4 fully isolated sections, 3 voltage options (9, 12, and 18V), and 16 independent cables for pedal connections.

It was developed with the same noise filtering technologies and protections as the acclaimed ISOPOWER supplies.

Built with a carbon-steel chassis, it provides great robustness and durability.

Its compact design makes mounting easier, taking up little space.

Comes with adhesive velcro for mounting and all necessary power cables.

TECHNOLOGIES:

AUTOMATIC SWITCH MODE Maximum performance and safety at any voltage between 100 and 240 Vac.

PURE ANALOG REGULATION Analog regulators and multi-stage filters ensure maximum noise suppression.

ABSOLUTE NOISE FREE Clean, regulated energy so your pedals can deliver the best tone.

HIGH CURRENT POWER The most advanced technology to power high-current consumption pedals.

FULL CIRCUIT PROTECTION Complete protection for your pedals.

INVOICE AND WARRANTY All of our products come with an invoice and a 1-year warranty.

1-YEAR WARRANTY AND FACTORY TECHNICAL SUPPORT All technical support and warranty services are provided directly by the factory in Brazil.

INCLUDED ACCESSORIES:

08 CB30 cables – 30cm (two P4 2.1×5.5 Center Negative plugs)

05 CB50 cables – 50cm (two P4 2.1×5.5 Center Negative plugs)

03 CB80 cables – 80cm (two P4 2.1×5.5 Center Negative plugs)

02 CP2 Converter cables – P2 (3.5mm Tip Positive)

02 CIV Polarity Inverter cables (2.5×5.5 Center Positive)

01 AC power cable (1.5m)

15 cm adhesive velcro

SPECIFICATIONS:

INPUT VOLTAGE: 100 to 240Vac 50/60Hz

OUTPUT VOLTAGES: 9, 12, and 18 Volts DC

ISOLATED SECTIONS:

2× 9Vdc 1000mA

1× 12Vdc 800mA

1× 18Vdc 200mA

MAXIMUM CURRENT CAPACITY: 2400mA total

DIMENSIONS (WxHxD): 167×43×67 mm

WEIGHT: 620g

Factory Warranty: 12 months

Made in Brazil
