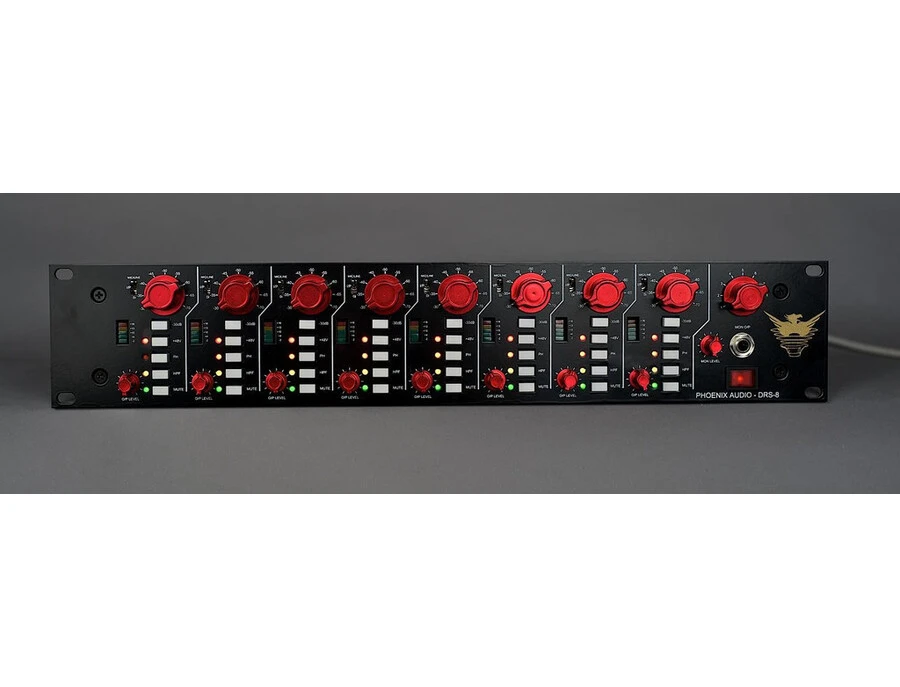

The Phoenix Audio DRS-8 MK2 is crafted for those who seek to blend modern innovation with classic warmth in their recordings. This 8-channel Class A preamp is a powerhouse, offering an expansive tonal range that caters to both the purist and the experimentalist. Its electronically balanced, transformerless input circuit ensures that fast transients are captured with precision, while maintaining the smooth, creamy characteristics that make Class A preamps so coveted.

The output stage is where the DRS-8 MK2 truly shines. Thanks to its fully discrete, transformer-balanced design, you can dial in tones from audiophile clean to the kind of British saturation that has graced countless classic records. Whether you're working in broadcast TV or a recording studio, the DRS-8 MK2 is versatile enough to handle it all.

For those who love the tactile experience of crafting a sound, the DRS-8 MK2 offers intuitive controls with LED gain metering, push-button 48V phantom power, and phase reversal. This ensures that achieving your desired sound is both quick and precise. The high-impedance DI circuit is a boon for instrumentalists, allowing the natural character of your guitar or bass to flourish, uncolored by unnecessary interference.

Key Features:

• 8-channel 2RU 19" rackmount configuration
• Class A, transformerless, electronically balanced mic input stage
• Transformer-coupled discrete DSOP-2 Class A output stage with custom-wound DB694 output transformer
• 70dB of mic gain with an additional 10dB available on the output fader
• High-impedance 10 Mohm DI circuit
• -15 dB input pad, LED gain metering, and switchable 48V phantom power
• Hi-pass filter at -6 dB per octave at 80 Hz
• Wired with mil-spec, silver-plated PTFE cable

Owner's manual

Product specs

FAQs

What type of preamp is the Phoenix Audio DRS-8 MK2?

The Phoenix Audio DRS-8 MK2 is a Class A solid-state preamp, known for delivering warm, detailed, and transparent sound quality suitable for professional recording applications.

How many channels does the Phoenix Audio DRS-8 MK2 offer?

The Phoenix Audio DRS-8 MK2 offers 8 channels, making it ideal for multi-microphone setups and larger recording projects in a studio environment.

Does the Phoenix Audio DRS-8 MK2 provide phantom power?

Yes, the Phoenix Audio DRS-8 MK2 provides phantom power for each channel, allowing you to use condenser microphones that require external power.

What are the connectivity options for the Phoenix Audio DRS-8 MK2?

The Phoenix Audio DRS-8 MK2 features 8 XLR-1/4" combo inputs, 8 XLR outputs, a DB-25 output, and a 1/4" mono monitor/headphone output, offering versatile connectivity for various studio setups.

Does the Phoenix Audio DRS-8 MK2 include any EQ features?

Yes, the Phoenix Audio DRS-8 MK2 includes an 80Hz high pass filter, allowing you to reduce low-frequency rumble and improve clarity in your recordings.
