Description

Edit description

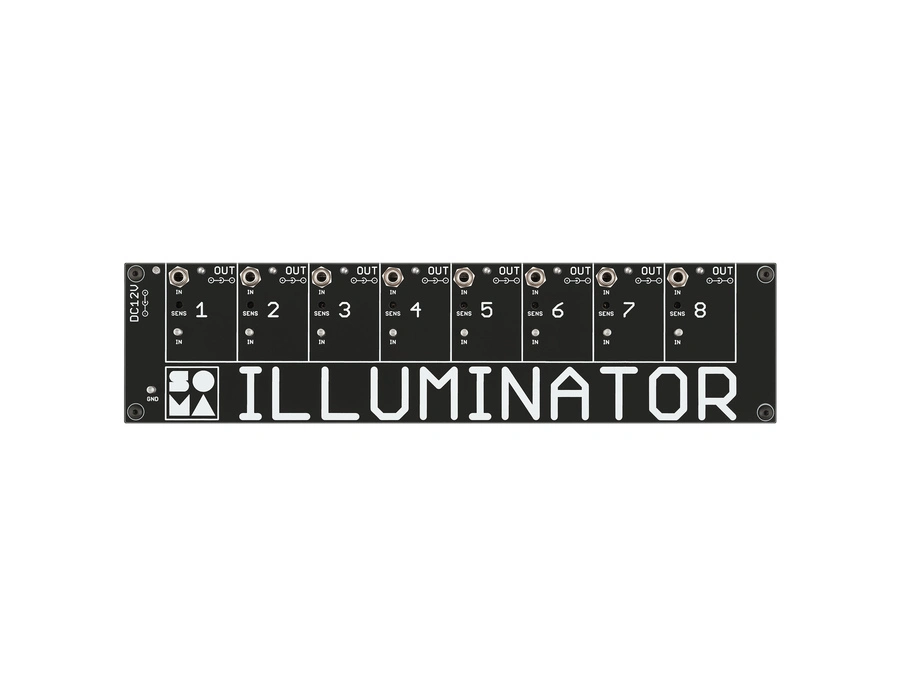

Unleash your creative potential with the Soma Laboratory ILLUMINATOR, a versatile 8-channel converter designed to transform your modular synthesizer setup into a vibrant light show. Perfect for musicians, artists, and experimenters, this innovative device bridges the gap between sound and visual art, allowing you to control LEDs and LED strips through analog control voltages. Whether you're crafting an immersive concert experience, creating dynamic art installations, or simply experimenting with new mediums, the ILLUMINATOR provides the flexibility and power you need.

Each of the eight channels features a CV input socket compatible with a range of voltages, making it easy to integrate with other modular systems like the SOMA Pulsar-23 and Ornament-8. Customize your light output with adjustable sensitivity settings, and enjoy robust power capabilities with each channel delivering up to 12V at 0.5 A. The device can handle peak output currents of up to 1.5 A per channel, ensuring your creative visions are brought to life with dazzling clarity.

The ILLUMINATOR's thoughtful design includes a comprehensive package of accessories, with eight LED strips in multiple colors and all necessary cables and power supplies provided. Whether your project demands subtle ambience or electrifying brilliance, this device delivers.

Key Features:

8 identical channels with CV input sockets (3.5 mm, 0-5 V range)
Compatible with SOMA Pulsar-23 and Ornament-8
Adjustable sensitivity and DC output
Output power per channel: 12V / 0.5 A (6 W)
Peak output current for one channel: 1.5 A
Maximum output power for all channels: 4 A / 48 W
Includes 8 LED strips (1.5m each) in various colors
Complete with connecting cables, power supply, and mains cable

Owner's manual

Soma Laboratory ILLUMINATOR User Manual

Product specs

Available since	April 2023
Bass Pedal	No
Breath Controller	No
MIDI Controller	No
Filter	No
Effects	Yes
Sequencer	No
Product Specific Expansion	No
Construction Type	Complete Set
Length [m]	1,5 m

Videos

Add video

SOMA Laboratory

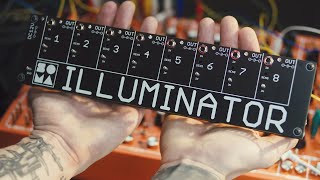

ILLUMINATOR (by SOMA labs)

SOMA Laboratory

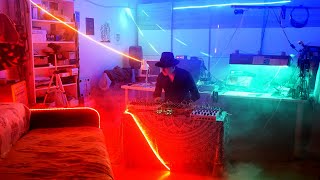

ILLUMINATOR live performance demo (SOMA labs)

SOMA Laboratory

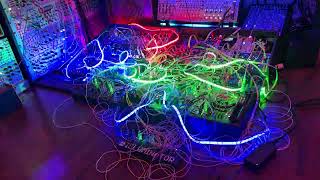

Soma Synths - ILLUMINATOR (First Experiment)

Richard Devine

ambient modular live a/v w/ Soma Illuminator & Eurorack Modular

Tom Leclerc

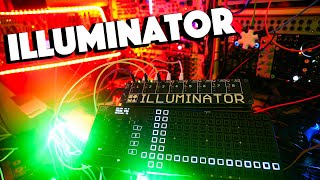

CV controlled LED magic - Soma Illuminator Review

Stephen McLeod

Modular #techno with the Soma Illuminator

Synth Commune

Reviews

Add review

Owner Insights

We analyzed real musician discussions from forums and Reddit to find what players love, question, and tweak about Soma Laboratory ILLUMINATOR.

Setup and maintenance

0 0

The Soma Illuminator's default CV input setting is 5v, adjustable via a trim pot to accommodate 3v-20v inputs.
Source
0 0

LED strips must be cut to length and soldered to jacks for integration with the Illuminator, a task requiring careful preparation with soldering equipment.
Source
0 0

MIDI to CV converters are essential for synths lacking CV or trigger outputs to effectively integrate with the Illuminator.
Source

Features and functionality

0 0

Faulty CV channels can occur, as noted with a CV1 malfunction. Channels 2-8 were reported working fine after troubleshooting.
Source
0 0

The Illuminator uses unipolar CV in the 0-10V range, allowing individual color control by multing the positive to each jack for RGB strips.
Source
0 0

CV or trigger signals like slow LFOs or fast drum triggers can create varying LED effects, from fade-ins to strobe-like patterns.
Source

Software and compatibility

0 0

OXI One's CV ports are compatible with the Illuminator, allowing integration into non-modular setups by routing CV outputs directly.
Source
0 0

OXI One's 8 CV and gate outputs offer potential integration with Illuminator, but require deep exploration of OXI's CV settings for optimal use.
Source

Comparisons

0 0

Doepfer's LED module is mentioned as a simpler alternative, operating with CV inputs for Red, Green, and Blue, and accommodating negative voltages.
Source

Use cases and applications

0 0

The Illuminator can connect via 1/8” patch cables or vertical pins for alligator clips, offering versatile integration with devices like the Pulsar-23.
Source
0 0

To trigger all 8 LED strips, a total of 8 CV or drum trigger signals are necessary, though fewer signals can be used with fewer strips.
Source

Critic Reviews

SOMA Illuminator Lets You Control LED Lights With Your Modular Synthesizer – Synthtopia

synthtopia.com

The SOMA Illuminator offers an intriguing way to sync LED lights with modular synthesizers, boasting compatibility with various lighting options and a user-friendly design. However, some critiques highlight its aesthetic shortcomings and the lack of MIDI support, which could limit its appeal for certain users. While it excels in functionality and versatility, the overall execution leaves room for improvement, making it a solid choice but not without its drawbacks.
