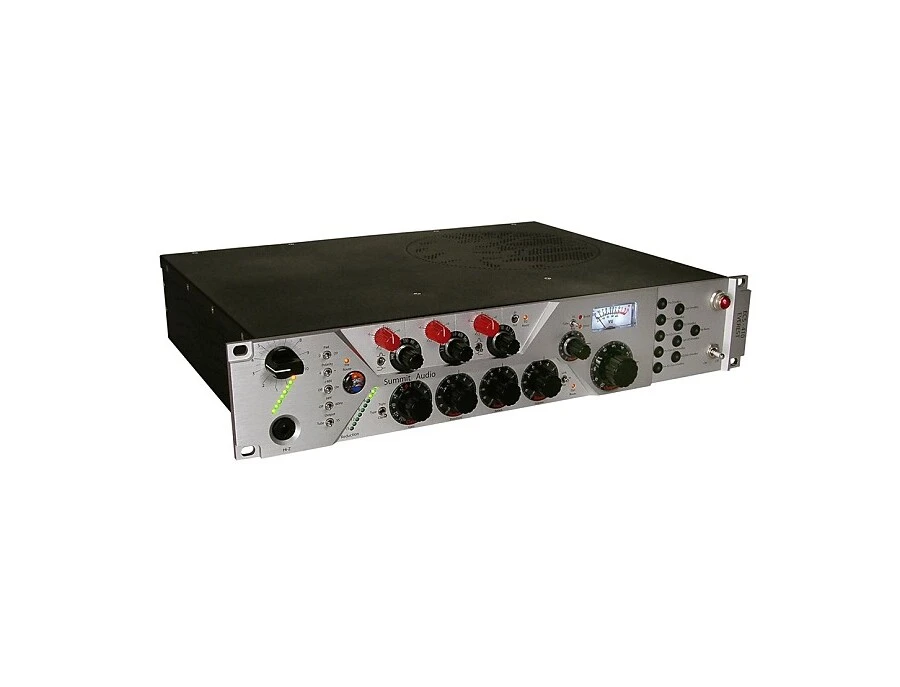

Summit Audio's ECS-410 Everest Channel Strip is a powerhouse of audio engineering, designed to redefine your studio recording experience. This all-in-one channel strip combines four distinct processing sections, each with its own fully balanced I/O, allowing for unparalleled flexibility and customization. The TouchPatch routing, a standout feature, enables seamless reconfiguration of your signal path at the push of a button, making it ideal for both creative exploration and precise control.

The Mz2 preamp section offers the choice between tube and solid-state modes, providing a spectrum of tonal options from vintage warmth to pristine clarity. The Fe1 passive three-band EQ is your go-to tool for sonic sculpting, utilizing LC circuits for a rich and warm character. Meanwhile, the Dc1 compressor shines with dual modes—Classic and Tight—offering smooth, musical compression or peak-controlling precision. The Db2 drive bus caps off the chain, with dual 12AX7A vacuum tubes and a zero-feedback transistor design, allowing for anything from subtle harmonic enhancement to full-bodied overdrive.

Whether you're tracking vocals, guitars, or any instrument in between, the ECS-410 Everest ensures every nuance is captured and shaped to perfection. With its modular design and high-quality components, this channel strip is built for a lifetime of use, offering endless possibilities for sound engineers and musicians alike.

Key Features:

• Mz2 Preamp: Tube/solid-state switchable with 60Hz HPF and +48V phantom power
• Fe1 EQ: Passive, three-band with selectable frequencies and shelving/peaking options
• Dc1 Compressor: Dual mode (Classic/Tight) with low noise and high precision
• Db2 Drive Bus: Multiple gain stages with tube and transistor overdrive options
• TouchPatch Routing: Intuitive one-button routing with 10 configurations
• Fully balanced I/O with high-quality connectors for each section

Product specs

FAQs

What type of preamp does the Summit Audio ECS-410 Everest Channel Strip feature?

The Summit Audio ECS-410 Everest Channel Strip features a hybrid preamp with options for both tube and solid-state operation, allowing for versatile sound shaping.

Does the Summit Audio ECS-410 Everest Channel Strip include phantom power for condenser microphones?

Yes, the Summit Audio ECS-410 Everest Channel Strip provides +48VDC phantom power, making it suitable for use with condenser microphones.

What are the main features of the EQ section in the Summit Audio ECS-410 Everest Channel Strip?

The EQ section includes a passive 3-band equalizer with switch-selectable frequencies, +/-12dB per band, and options for peaking/shelving and bypass.

How does the compressor in the Summit Audio ECS-410 Everest Channel Strip differ in its modes?

The compressor offers "Tight" and "Classic" compression modes, providing flexibility in dynamics control for different audio applications.

Can the Summit Audio ECS-410 Everest Channel Strip be used in stereo configurations?

Yes, it features stereo linking capabilities, allowing you to use two units in tandem for stereo processing.

What is the TouchPatch routing feature on the Summit Audio ECS-410 Everest Channel Strip?

TouchPatch routing offers 10 routing schemes at the touch of a button, facilitating quick and flexible signal flow adjustments.

How many rack spaces does the Summit Audio ECS-410 Everest Channel Strip require?

The Summit Audio ECS-410 Everest Channel Strip requires 2U of rack space.
