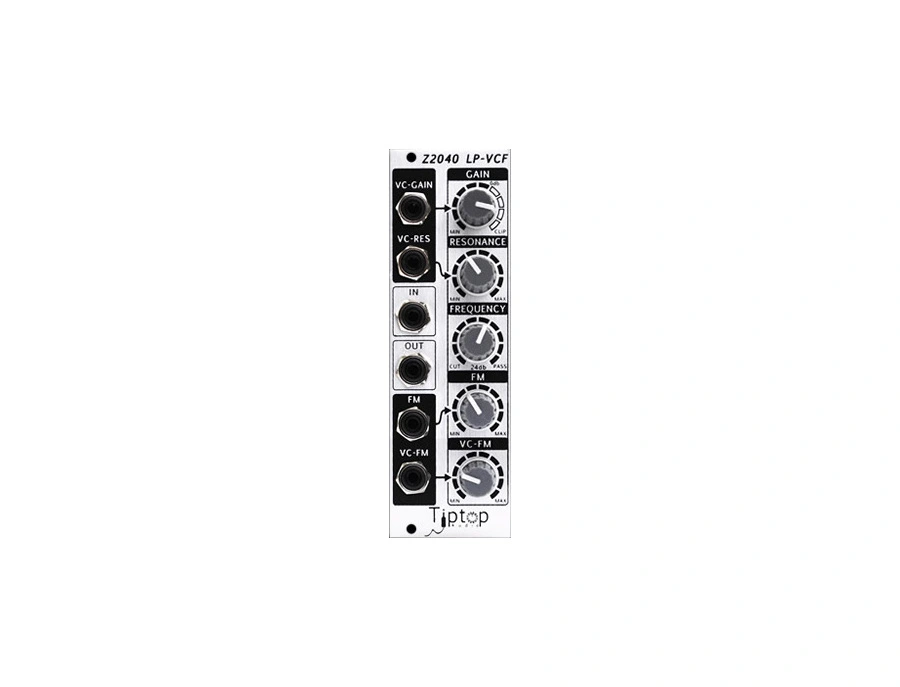

Unleash a world of sonic possibilities with the Tiptop Audio Z2040, a Eurorack module that captures the essence of classic analog warmth. Designed as a redesign of the Prophet 5 Rev 2 Low Pass Filter, this 4-pole VCF delivers a rich, creamy sound that's perfect for crafting lush bass lines and dynamic leads. The Z2040's 24 dB analog low-pass filter not only emulates legendary synth sounds but also pushes the boundaries of creativity with its robust modulation capabilities.

This module shines in complex synth setups, featuring four modulation inputs to accommodate both CV and audio signals. Whether you're into frequency modulation (FM) for sweeping filter effects or utilizing voltage-controlled resonance for harmonic richness, the Z2040 is your gateway to an expansive soundscape. Its ability to transform into a pure sine-core VC-Oscillator with resonance feedback fully up adds even more versatility, ideal for creating snappy percussive elements or whistling tones.

Compatible with any Eurorack system, the Z2040 is compact yet powerful. It includes a voltage-controlled VCA that can be positioned before or after the filter, offering even more creative flexibility. And with its self-oscillating feature, your modular rig will never sound the same again.

Key Features:

• 4-pole low-pass VCF based on the classic SSM2040 chip
• Voltage-controlled gain and resonance for dynamic sound shaping
• Self-oscillating capability for pure sine wave generation
• Four modulation inputs for deep audio and CV modulation
• FM and VC-FM inputs for dynamic filter sweeps
• Includes a voltage-controlled VCA configurable pre- or post-filter
• 8 HP Eurorack format, with 42mm depth
• Power consumption: +12V: 20mA, -12V: 20mA
• Comes with a ribbon power cable and a limited 1-year manufacturer warranty

Owner's manual

Product specs

FAQs

What type of filter is the Tiptop Audio z2040?

The Tiptop Audio z2040 is a 4-pole lowpass filter designed for Eurorack modular synthesizers, offering a 24 dB/octave slope for effective frequency shaping.

How does the Tiptop Audio z2040 handle modulation?

The z2040 features multiple voltage-controlled modulation options, including cut-off frequency modulation, resonance modulation, and a modulation index, allowing for dynamic sound manipulation.

What are the input and output connections on the Tiptop Audio z2040?

The z2040 includes 1/8" jacks for both audio input and output, facilitating easy integration into your Eurorack setup.

What is the power consumption of the Tiptop Audio z2040?

The z2040 consumes 20mA at ±12V DC, requiring a compatible Eurorack power supply for operation.

How wide is the Tiptop Audio z2040 module in HP size?

The Tiptop Audio z2040 module is 8HP wide, making it a compact choice for Eurorack systems.
