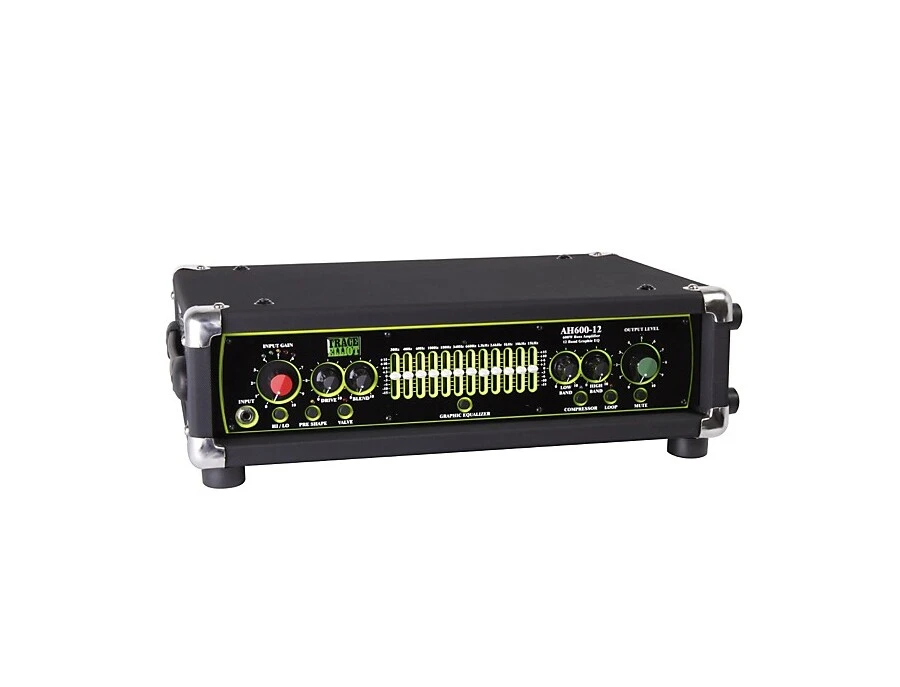

The 600W 12-Band Bass Head by Trace Elliot

The Trace Elliot 600W 12‑Band Bass Head is a professional‑grade bass amplifier head with a powerful 600 W (4 Ω) output and a classic Trace Elliot 12‑band graphic EQ for detailed tone shaping.
It includes a suite of performance‑oriented features such as dual‑band compression, Pre‑Shape circuitry for classic Trace tone, a valve drive option for warm harmonic color, an effects loop, and balanced DI outputs making it ideal for studio use, live stage rigs, and players who want maximum control over their low‑end sound.

Specs:

• Model: Trace Elliot AH600‑12 Bass Head
• Output Power: 600 W into 4 Ω (power stage)
• EQ: 12‑Band classic graphic equalizer (footswitchable)
• Pre‑Shape circuit for classic Trace tone
• Valve drive circuit adds tube‑like warmth/overdrive
• Dual‑band Compressor (separate hi/lo controls)
• Effects Loop: Sophisticated loop with Hi‑Pass/Lo‑Pass/Full Range outputs, L/R/Mono returns, Series/Parallel switch and Level control
• Footswitch Included: Controls Pre‑Shape, Valve drive, Graphic EQ, Compressor, Effects Loop, and Output Mute
• DI & Line Outs: Electronically balanced XLR DI outputs (pre‑EQ and post‑preamp, L/R) plus L/R Line outputs
• Output Mute: Mutes all outputs except tuner output
• Build: Classic black “pimple” covering with metal handles and protective corners
• Weight: ~39.2 lb (≈17.8 kg)
