Yamaha CS-R10 Rivage PM10

4.0 (1)

0 wishlisted

1 saved

Page last updated Jan 16, 2026

Pricing and availability

Store

Reviews

Price

^* Product prices and availability are updated by Equipboard every 24hrs and are subject to change. Equipboard may receive compensation for purchases made at participating retailers linked on this site. This compensation does not affect what products or prices are displayed, or the order of prices listed. For more information, please refer to our affiliate disclosure.

Description

Edit description

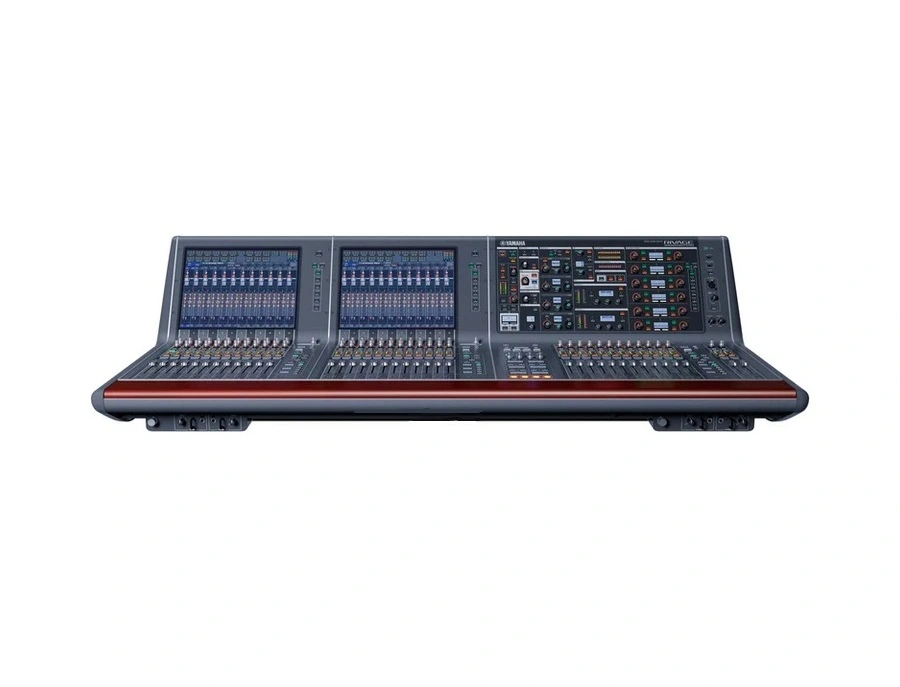

Step into the future of live sound mixing with the Yamaha CS-R10 Rivage PM10. This flagship control surface is the heart of Yamaha's RIVAGE PM10 digital mixing system, crafted for professionals who demand precision and versatility. With its expansive 38-fader layout, the CS-R10 is designed to accommodate the most intricate of mixes, offering three intuitive 12-fader bays with custom fader banks. The inclusion of two high-resolution 15-inch touch panels ensures that every channel parameter is at your fingertips, making the mixing process not just efficient but also engaging.

What sets the CS-R10 apart is its adaptability and reliability. With two MY slots for expandability and dual redundant power supplies, you can trust this system to perform under any circumstance. The surface is packed with user-defined keys and knobs, allowing you to tailor the interface to your workflow. The CS-R10 is more than just a mixer; it's a complete ecosystem designed to elevate your live sound experience.

Key Features:

Designed for Yamaha's RIVAGE PM10 digital mixing system
38-fader layout with 3 12-fader bays
6 x 5 custom fader banks on each bay
12 x 4 user-defined keys; 4 x 4 user-defined knobs
2 easy-to-read 15-inch touch panels for comprehensive channel parameter adjustability
Dual power supply units for rock-solid reliability
2 MY slots for expandability
Includes a full range of physical I/O: 8-in/8-out analog, 8-in/8-out AES/EBU, plus GPI, word clock, MIDI, USB, and video

Product specs

Type	Control Surface for Rivage PM10 Systems
Inputs - Mic Preamps	8 x XLR
Phantom Power	Yes
Outputs - Main	8 x XLR
Inputs - Digital	4 x XLR (AES/EBU)
Outputs - Digital	4 x XLR (AES/EBU)
MIDI I/O	In/Out
Data I/O	2 x Locking Ethernet (PM10 Network)
I/O Expansion Slots	2 x MY Card Slots Available
Word Clock	1 x BNC (out)
Faders	38 (12+12+12+2)
EQ Bands	8-band Parametric EQ, Graphic EQ
Signal Processing	Gate, Compressor
Screen	2 x 15" touchscreen
Software	RIVAGE PM Editor, RIVAGE PM StageMix
Power Source	2 x Standard IEC Cable
Height	16.4"
Depth	33.4"
Width	61.0"
Weight	187 lbs.

FAQs

What type of inputs and outputs does the Yamaha CS-R10 Rivage PM10 offer?: The Yamaha CS-R10 Rivage PM10 provides 8 XLR mic preamp inputs, 4 digital XLR inputs (AES/EBU), 8 XLR main outputs, and 4 digital XLR outputs (AES/EBU), ensuring versatile connectivity for various audio sources and setups.
Does the Yamaha CS-R10 Rivage PM10 support MIDI integration?: Yes, the Yamaha CS-R10 Rivage PM10 includes MIDI In and Out ports, allowing integration with other MIDI-compatible devices for enhanced control and flexibility in your audio production workflow.
How many faders does the Yamaha CS-R10 Rivage PM10 have?: The Yamaha CS-R10 Rivage PM10 is equipped with 38 faders, arranged in a configuration of 12+12+12+2, providing extensive tactile control over your live or studio mixing sessions.
What kind of EQ options are available on the Yamaha CS-R10 Rivage PM10?: The Yamaha CS-R10 Rivage PM10 features both 8-band parametric EQ and graphic EQ, offering detailed and flexible equalization options to shape and refine your audio signals.
Are there touchscreen displays on the Yamaha CS-R10 Rivage PM10?: Yes, the Yamaha CS-R10 Rivage PM10 includes two 15-inch touchscreens, providing intuitive control and visual feedback for managing complex audio mixing tasks efficiently.
What software is compatible with the Yamaha CS-R10 Rivage PM10?: The Yamaha CS-R10 Rivage PM10 is compatible with RIVAGE PM Editor and RIVAGE PM StageMix software, enabling enhanced control and remote operation capabilities for your mixing system.

Videos

Add video

Yamaha Global

Yamaha CL/QL series: Keys to Live Sound Success

Yamaha Global

Reviews

Add review

Owner Insights

We analyzed real musician discussions from forums and Reddit to find what players love, question, and tweak about Yamaha CS-R10 Rivage PM10.

Features and functionality

0 0

The PM3 scales down to 84 pounds and 45 inches wide, slightly wider than a CL5, offering a more compact Rivage console option.
Source
0 0

PM5's CS-R5 control surface is comparable in width to a PM7 or PM10 but has a shorter depth at just over 23 inches and weighs 93 pounds.
Source
0 0

The "Silk" feature provides subtle tonal enhancements, though some users don't find it a game changer compared to other features.
Source

Value and pricing

0 0

PM10 systems were quoted at just under $200k for high I/O versions, while the PM3 is expected to target the $70k range.
Source

Use cases and applications

0 0

The PM lineup's compact footprint addresses spatial constraints in venues, potentially allowing staffing with just one A1.
Source

User experience

0 0

The external DSP of Rivage consoles can be placed under the desk, a preference over integrated DSP for repair and upgrade flexibility.
Source
0 0

After roughly 800 hours of use, some users report that PM10 faders lose their start position alignment, necessitating replacements.
Source
0 0

Yamaha support is generally responsive and helpful, often addressing issues under warranty if the unit is less than a year old.
Source
0 0

The PM7's workflow is intuitive, especially for those familiar with the Yamaha CL series, offering a more "fully fleshed" software experience.
Source

Comparisons

0 0

The PM3 is anticipated to replace many CL5s in theater and music settings, shifting the CL5 more towards corporate gigs.
Source
0 0

Some users considering a switch from Digico SD12 to Yamaha PM series suggest the CS-R10-S for a similar footprint without needing an extra fader bank.
Source

Setup and maintenance

0 0

Fader vibration issues are often due to loose pulleys, requiring tension adjustments and air cleaning before potentially replacing faders.
Source
0 0

Attempting to clean or lubricate PM10 faders can risk damaging the metal housing, which is not designed to be easily opened.
Source

Build quality

0 0

PM10 faders have a metal housing that can be difficult to open without damaging, complicating internal repairs.
Source
0 0

The fader motors on the PM7 are described as quick and precise, with knobs laid out logically for easy access and understanding.
Source

Software and compatibility

0 0

Users appreciate the comprehensive plugins available on the PM7/PM10, including the option for external cards/servers for additional processing like Waves or UAD.
Source
