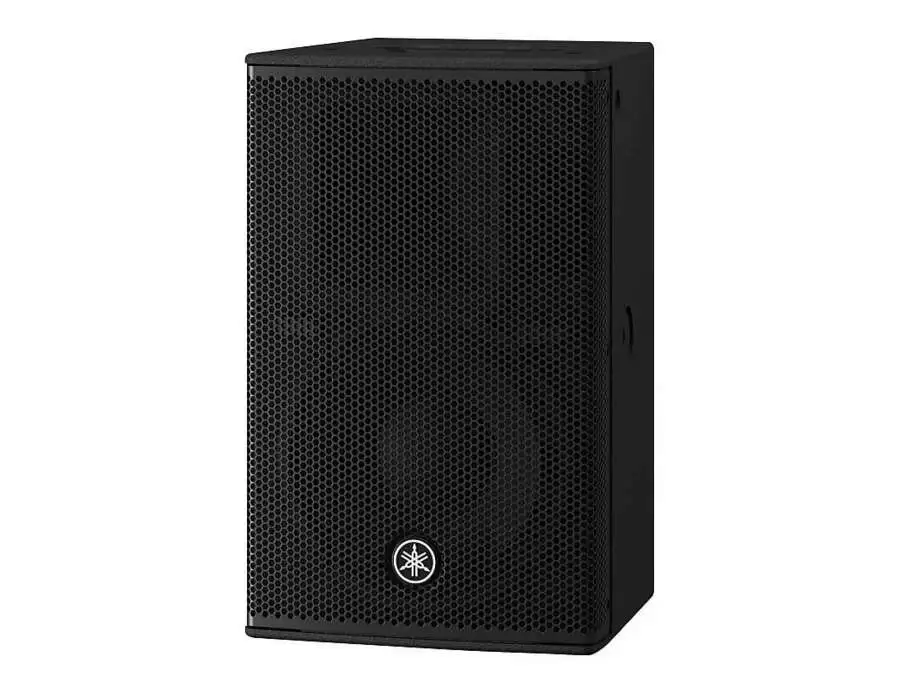

Unleash the power and precision of the Yamaha DHR10, a 700-Watt Class-D active loudspeaker designed to elevate your live sound performance. This compact powerhouse delivers robust audio with its high-compliance, low-frequency 10-inch driver paired with a 1.4-inch high-frequency compression driver. Experience a full-range frequency response of 52Hz to 20kHz and an impressive 128dB maximum SPL, ensuring your sound captivates every corner of the venue.

The DHR10's 90-degree by 60-degree coverage angle makes it ideal for both front-of-house and monitor applications, providing consistent sound dispersion across any space. Thanks to Yamaha’s D-Contour intelligent multiband compressor, you can count on minimal crossover distortion and reliable sonic performance, no matter the volume. This loudspeaker’s versatility is further enhanced by its dual operational modes, allowing effortless transitions between FOH/Main and Monitor configurations.

Built for durability, the Yamaha DHR10 is housed in a rugged plywood enclosure with a polyurea coating, designed to withstand the rigors of the road. It features a 35mm socket for easy stand or pole mounting, and with its integrated DSP signal processor, you get access to two presets tailored for different environments. Whether you're setting up for a small gig or a large venue, the DHR10 is your go-to solution for clear, powerful sound.

Key Features:

• 700W Class-D bi-amplified power (500W LF + 200W HF)
• 10" woofer with 2" voice coil, 1" tweeter with 1.4" voice coil
• Frequency range: 52Hz – 20kHz
• Maximum SPL: 128dB
• 90° x 60° coverage angle, rotatable
• Built-in DSP with 2 presets and a 2-channel mixer
• Combo XLR Mic/Line inputs and 2x Cinch input
• Rugged plywood enclosure with 35mm speaker flange
• 3x M10 rigging points for versatile mounting options

Product specs

FAQs

Is the Yamaha DHR10 suitable for live performances?

Yes, the Yamaha DHR10 is designed for live performances, offering 700 watts of power and a 10-inch bass speaker for clear sound projection. Its compact and durable wood cabinet makes it ideal for mobile gigs and small to medium events.

What are the main connectivity options for the Yamaha DHR10?

The Yamaha DHR10 features two analog inputs and an XLR line out, allowing you to connect various audio sources and link multiple speakers for expanded sound coverage.

How does the Yamaha DHR10 handle different audio frequencies?

The Yamaha DHR10 provides a frequency range from 52 Hz to 20,000 Hz, ensuring a balanced sound output across low, mid, and high frequencies, suitable for a wide range of audio applications.

Can the Yamaha DHR10 be used as a floor monitor?

The Yamaha DHR10 is not specifically designed with a monitor angle, but it can be used on a speaker stand or mounted for versatile sound coverage in various stage setups.

Does the Yamaha DHR10 have built-in effects or EQ controls?

The Yamaha DHR10 includes EQ controls per channel, allowing you to adjust the sound to your preference, but it does not have built-in effects.
