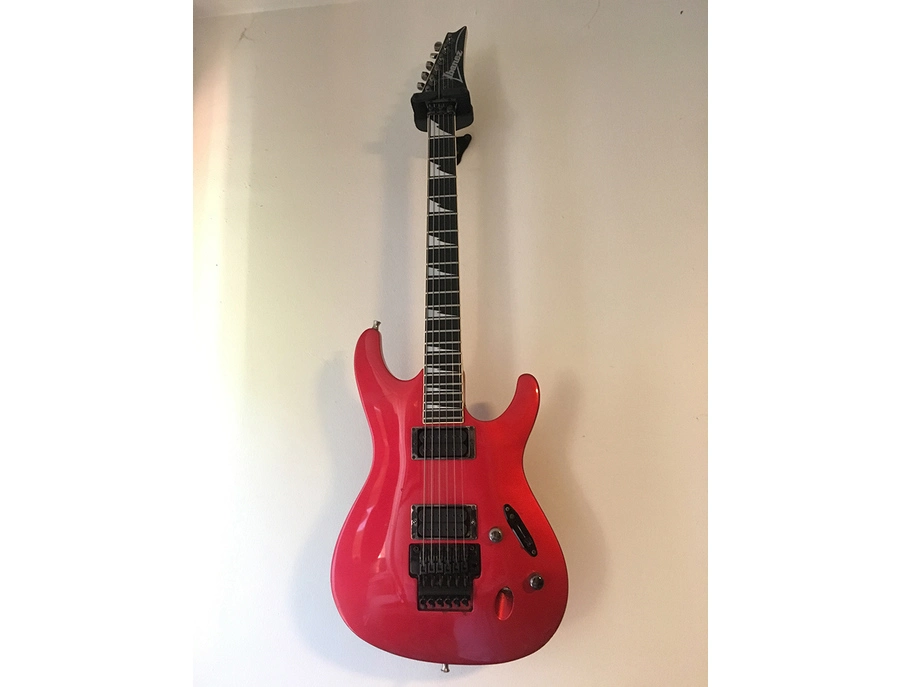

The 1988 Ibanez 540S uses three individual toggle switches for each pickup, a unique setup before later models switched to 5-way switches.

The side profile of the 540S is unique, with the thinnest edge point being only 1cm thick, enhancing playability and comfort.

The original neck of the 1988 540S has a 43mm width, 17” radius, and 22 frets, which are specific parameters not easily matched by modern necks.

The original toggle switches can be replaced with SPDT mini-toggles; shaft diameter is 5.88mm, requiring a 6.2mm hole.

The whammy bar for this model doesn't screw in but is a press fit; it measures 5mm in diameter and can be snugged with Teflon tape if loose.

After thorough cleaning and setup, including Naptha and Lemon Oil treatment, the guitar's playability and appearance improved significantly.

One owner clarified that the humbucker on their model doesn't have a coil-tap, indicating potential factory wiring or a non-tappable humbucker replacement.

The guitar's signal runs in parallel through the pickup switches, allowing independent control of each pickup without affecting others.

One owner noted that the neck is not ideal for Hendrix-style thumb-over techniques and can cause the high E string to slip off the fretboard.

Owners of the 1988 model have noted the difficulty in finding modern replacements due to the discontinued Ultra neck.

The Galaxy Black finish on the Lo-Pro Edge saddles tends to wear off, but the tremolo unit remains reliable and offers excellent tuning stability.

The IBZ/USA F1 pickup is sonically similar to a Dimarzio ToneZone, offering a comparable tonal character.

The 540S neck joint allows for various neck replacements, but thicker necks may increase fretboard height from the body compared to the original Wizard neck.
