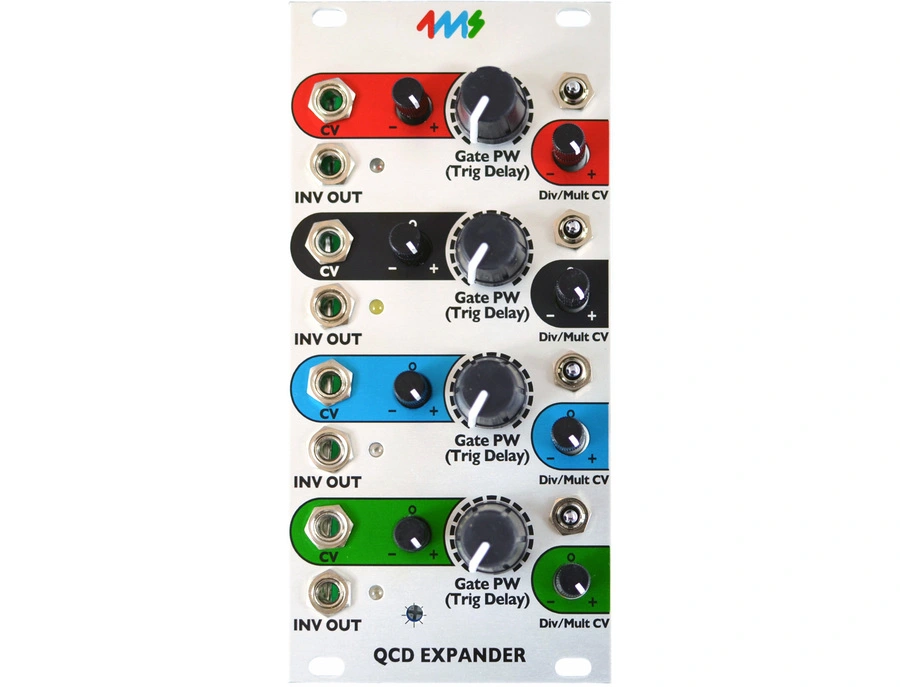

Unlock the full potential of your modular synth setup with the 4ms QCD Expander. Designed to enhance the capabilities of the 4ms Quad Clock Distributor (QCD), this expander transforms your QCD into a dynamic and programmable nonlinear sequencer. Each channel is supercharged with a CV Trigger Delay (Pulse Width) jack and knob, offering three selectable output modes: delayed trigger, inverted gate, and shuffle. This means you can dive into crafting intricate rhythms and evolving patterns with ease.

The QCD Expander includes attenuverters for all CV inputs, allowing for precise modulation and tailor-made rhythmic creations. Its intuitive design ensures you're not just limited to standard rhythms – you can explore the depths of your creativity with self-patched swing and shuffle patterns. With a compact 12HP footprint, it fits seamlessly into any Eurorack setup, delivering powerful functionality without demanding space.

Connect the QCD Expander effortlessly to your QCD using the provided ribbon cables, and enjoy the control over global LED brightness from the front panel for an intuitive user experience. Whether you're a seasoned modular enthusiast or a newcomer to the world of Eurorack, the 4ms QCD Expander invites you to redefine the boundaries of your musical possibilities.

Key Features:

• 12HP Eurorack format module
• Expansion module for 4ms QCD, enabling complex rhythmic modulation
• Adds CV Trigger Delay, additional output jack with three modes, and attenuverters for each channel
• Connects with included 16-conductor ribbon cable
• Adjustable global LED brightness
• Power consumption: +12V: 44mA, -12V: 30mA
• Module depth: 25mm (0.98")

Owner's manual

Product specs

FAQs

What is the primary function of the 4ms QCD Expander?

The 4ms QCD Expander is designed to expand the functionality of the 4ms Quad Clock Distributor (QCD) by adding CV control over the QCD's features, allowing for more complex and dynamic clock modulation in your Eurorack setup.

How does the 4ms QCD Expander connect to the Quad Clock Distributor?

The 4ms QCD Expander connects directly to the Quad Clock Distributor via a ribbon cable, providing additional CV inputs and inverted outputs to enhance the QCD's capabilities.

What are the CV input and inverted output options on the 4ms QCD Expander?

The 4ms QCD Expander features 4 CV inputs for modulating the QCD parameters and 4 inverted outputs for generating inverted clock signals, offering increased flexibility and control in modular synthesizer setups.

Is the 4ms QCD Expander compatible with other Eurorack modules?

While the 4ms QCD Expander is specifically designed to work with the 4ms Quad Clock Distributor, it can integrate with other Eurorack modules to enhance clock modulation and synchronization within a modular system.
