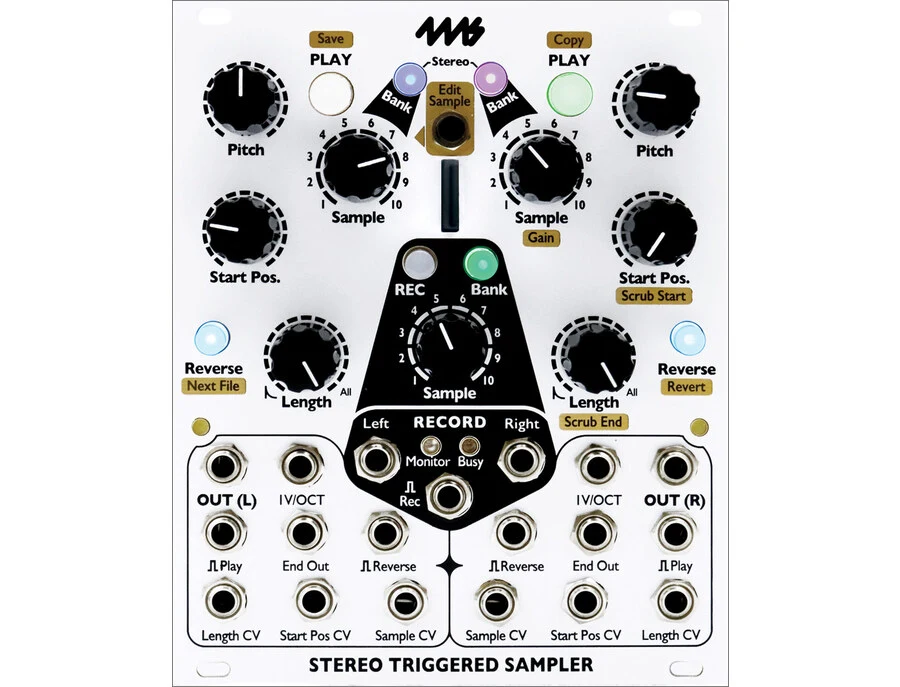

The 4ms Stereo Triggered Sampler is an essential addition to any Eurorack enthusiast's setup, offering a high-fidelity two-channel stereo sampling experience. This versatile module allows you to record stereo WAV files directly onto a microSD card, supporting up to 600 stereo files per channel, with sampling rates up to 32 Bit / 96kHz. Ideal for live performance or studio use, the STS enables instantaneous playback and creative manipulation of samples, from pitch shifting to reversing, all with the flick of a switch or turn of a knob.

Each channel is equipped with intuitive controls for pitch, sample selection, and playback parameters, all of which can be modulated via CV inputs, providing endless possibilities for dynamic sound design. Sample editing is made easy directly on the module, letting you loop, trim, slice, or copy without the need for external software. Whether you're capturing ambient textures or percussive hits, the STS's onboard sample editing capabilities ensure you're always in control.

Designed with the contemporary musician in mind, the STS supports microSD cards up to 256GB, making it a powerhouse for extensive sample libraries. The module's low-noise design ensures pristine audio quality, while its compact 20HP width means it fits seamlessly into any Eurorack setup.

Key Features:

• 2-channel stereo sampler with high-fidelity audio
• Records and plays stereo WAV files; up to 600 files per channel
• CV inputs for pitch, sample selection, start position, and length
• Onboard sample editing: gain, loop, trim, copy, slice
• Supports microSD cards up to 256GB
• Power consumption: 145mA (+12V) / 39mA (-12V)
• Width: 20 HP, Depth: 25 mm

Owner's manual

Product specs

FAQs

What are the key features of the 4ms Stereo Triggered Sampler?

The 4ms Stereo Triggered Sampler offers 24-bit/44.1kHz stereo sampling, supports up to 600 active samples, and includes a microSD card slot for storage. It features multiple CV inputs for sample manipulation and requires a Eurorack case and power supply.

How does the 4ms Stereo Triggered Sampler integrate with a Eurorack system?

The 4ms Stereo Triggered Sampler is a 20HP Eurorack module that connects via standard 1/8" jacks for audio input and output. It integrates seamlessly with other Eurorack modules, offering CV inputs for extensive control over sample playback.

Can the 4ms Stereo Triggered Sampler record and play back stereo samples?

Yes, the 4ms Stereo Triggered Sampler can record and play back stereo samples at 24-bit/44.1kHz, allowing for high-quality audio reproduction in modular setups.

What kind of storage does the 4ms Stereo Triggered Sampler use?

The 4ms Stereo Triggered Sampler uses a microSD card slot for storing samples, enabling easy management and transfer of audio files.

What kind of control does the 4ms Stereo Triggered Sampler offer for sample manipulation?

The 4ms Stereo Triggered Sampler provides multiple CV inputs, including Start Position, Length, and Sample CV, allowing for dynamic control and manipulation of sample playback in real-time.
