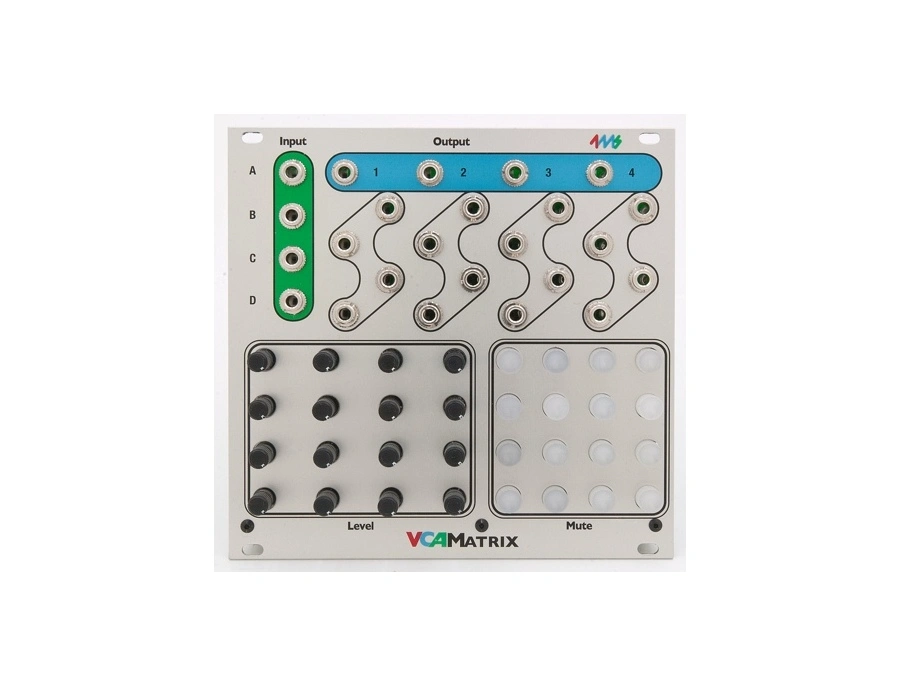

The 4ms VCAM: VCA Matrix is a powerhouse module for any Eurorack enthusiast looking to expand their creative potential. This playable 4x4 matrix of 16 VCAs offers unparalleled flexibility, allowing you to route four CV/audio inputs to four outputs in any configuration you desire. Each VCA features its own gain control and illuminated mute button, empowering you to sculpt complex soundscapes with ease. The module's soft limit circuitry ensures you can push your sonic boundaries without fear of clipping, while the exponential and pseudo-log response curves provide nuanced control over your dynamics.

Whether you're using it as a mixer, splitter, or dynamic signal router, the VCA Matrix's intuitive design encourages hands-on experimentation. The module's expandability means you can link multiple units to create even larger matrices, making it a versatile tool for any modular setup. With its high-quality SSM chips, the VCA Matrix not only delivers pristine audio fidelity but also offers robust control and precision for all your synthesizing needs.

Key Features:

• 16 VCAs with independent gain control and illuminated mute buttons
• 4 CV/audio inputs and 4 buffered, dc-coupled outputs
• Frequency range: 0Hz - 20kHz
• Soft limit circuitry to prevent clipping
• Exponential VCA response in low control voltage range, pseudo-log response at higher ranges
• Expandable matrix configuration for larger setups
• Attenuation/gain range from -100dB to +20dB
• Playable surface with latching Mute LED buttons
• Suitable as a mixer, splitter, dynamic signal router, and more

Owner's manual

Product specs

FAQs

What is the primary function of the 4ms VCA Matrix in a modular synthesizer setup?

The 4ms VCA Matrix is designed to provide flexible routing and mixing of audio or CV signals within a modular synthesizer setup, allowing users to control the level of each input to each output independently.

How many inputs and outputs does the 4ms VCA Matrix module have?

The 4ms VCA Matrix features 4 inputs and 4 outputs, providing a 4x4 matrix that allows for extensive routing possibilities in a Eurorack system.

Does the 4ms VCA Matrix require a specific power supply?

Yes, the 4ms VCA Matrix requires a Eurorack case and power supply to operate, as it is a Eurorack module with a power depth of 1.0" (25mm) and an HP size of 26HP.

Can the 4ms VCA Matrix be used for both audio and CV signals?

Yes, the 4ms VCA Matrix is versatile and can be used to process both audio and control voltage (CV) signals, making it a flexible tool in any modular setup.

How does the 4ms VCA Matrix enhance creativity in sound design?

The 4ms VCA Matrix allows for complex signal routing and modulation possibilities, enabling users to experiment with dynamic soundscapes and intricate modulation paths, thus enhancing creativity in sound design.
