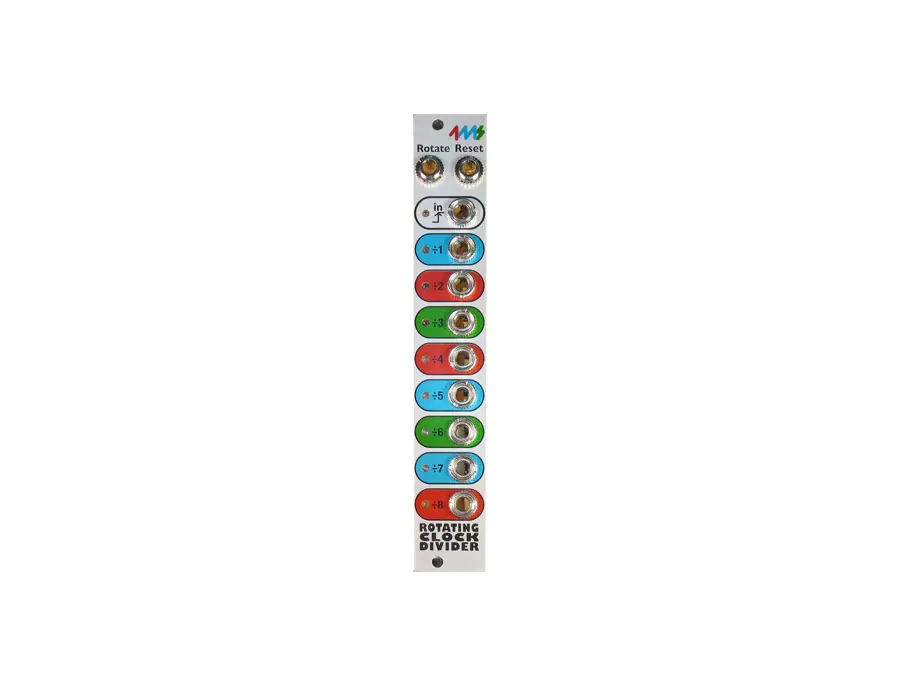

If you’re exploring the world of modular synthesis, the 4ms Rotating Clock Divider is a must-have tool for your Eurorack setup. This ingenious module takes a single clock signal and transforms it into eight distinct time-divided outputs, ranging from simple fractions like /2 to more complex divisions such as /17 and /62. It’s perfect for those looking to inject creativity and unpredictability into their rhythmic sequences.

The Rotating Clock Divider shines with its Rotate CV input, which allows you to reassign each output jack dynamically, resulting in nonstandard and evolving time divisions. This feature empowers you to create intricate polyrhythms and glitchy effects that can breathe new life into your modular system. Whether you're syncing percussion modules, modulating envelopes, or driving delays, the Rotating Clock Divider opens up a new dimension of sonic possibilities.

Alongside its main features, this module offers extensive configurability through jumpers, giving you control over gate/trigger modes, division ranges, and even adding an automatic reset for maintaining rhythmic coherence in complex patches. Expand your creative palette even further with the optional breakout module, offering advanced functionalities for the adventurous synthesist.

Key Features:

• Voltage-controllable clock divider with 8 outputs
• Division range from /1 to /64, including odd and nonstandard divisions

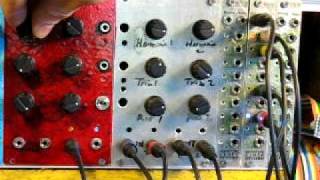

• Rotate CV input (0V to +5V) for dynamic reassignment of output divisions
• Clock and reset inputs for synchronization

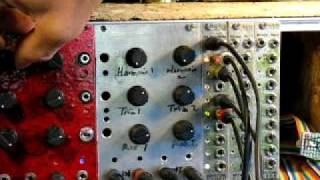

• Configurable settings via jumpers: gate/trigger mode, extended division, spread mode, auto reset, ascending/descending counting direction
• Expandable with optional 4ms RCD breakout module
• Slim design: 4 HP width, 35mm depth
• Power consumption: 33mA (+12V), 4mA (-12V)

Owner's manual

Product specs

FAQs

What is the primary function of the 4ms Rotating Clock Divider?

The 4ms Rotating Clock Divider is designed to divide clock signals in a modular synthesizer setup, providing multiple clock outputs at different divisions of the input clock.

How much space does the 4ms Rotating Clock Divider take up in a Eurorack system?

The 4ms Rotating Clock Divider occupies 4HP in a Eurorack system, making it a compact choice for modular setups with limited space.

What power requirements does the 4ms Rotating Clock Divider have?

The 4ms Rotating Clock Divider requires a Eurorack case and power supply, operating at ±12V DC with a power consumption of 33mA.

Can the 4ms Rotating Clock Divider be used with any Eurorack modular synthesizer?

Yes, the 4ms Rotating Clock Divider is compatible with any Eurorack modular synthesizer system, provided you have the necessary power supply and space in your rack.

Does the 4ms Rotating Clock Divider offer any unique features compared to standard clock dividers?

The 4ms Rotating Clock Divider includes a unique rotating feature, allowing you to change the division order, which can create complex rhythmic patterns in your modular setup.
