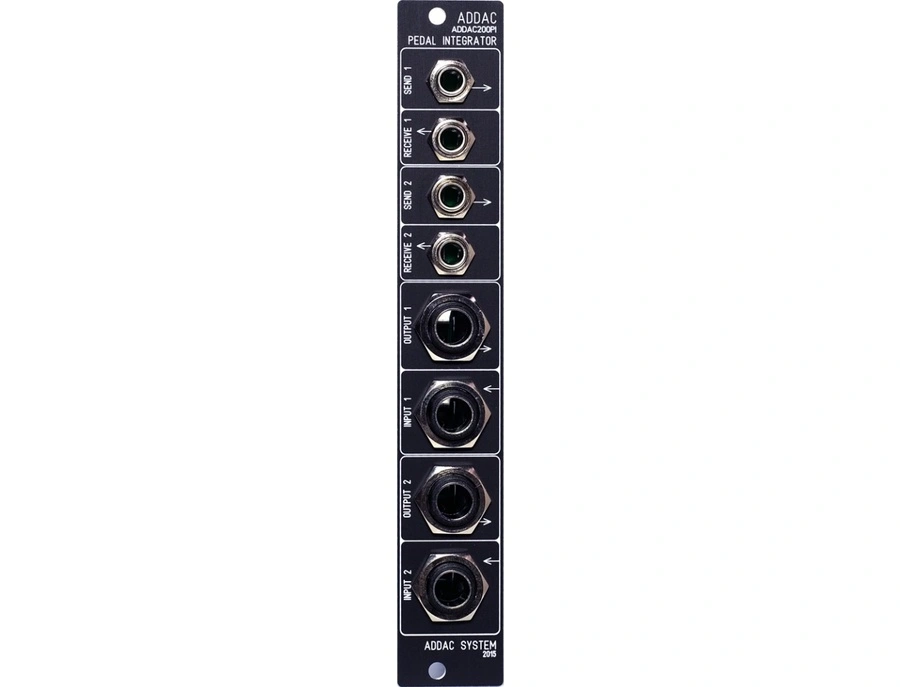

Elevate your soundscapes with the ADDAC200PI Pedal Integrator, a versatile Eurorack module designed to seamlessly incorporate your cherished guitar effects into your modular synth setup. This innovative 2-channel interface expertly bridges the gap between traditional instrument signals and the dynamic world of synths, offering musicians a new realm of creative possibilities. Whether you're a guitarist looking to expand your sonic palette or a synth enthusiast seeking fresh tonal textures, this module provides a robust solution.

Engineered for efficiency, the ADDAC200PI features both 3.5mm and 6.3mm jack sockets, accommodating a wide array of pedal connections. Each channel is equipped with dedicated send and return paths, ensuring clarity and precision in signal processing. The input and output amplifiers are specifically crafted to handle instrument signals, preserving the integrity of your sound while allowing for intricate modulation and effects layering.

With a power consumption of just 10 mA on both +12 V and -12 V, this compact module (measuring only 4 TE in width and 30 mm in depth) integrates effortlessly into your existing setup without demanding excessive resources.

Key Features:

• 2-channel interface for integrating guitar effect pedals
• Dual send and return paths with 3.5 mm and 6.3 mm jack sockets
• Dedicated input and output amplifiers for instrument signals
• Low power consumption: 10 mA (+12 V) / 10 mA (-12 V)
• Compact design: Width of 4 TE, Depth of 30 mm

Product specs

FAQs

What is the primary function of the ADDAC 200PI Pedal Integrator in a modular synth setup?

The ADDAC 200PI Pedal Integrator allows you to integrate guitar pedals into your modular synth setup, providing the ability to send and return audio signals between your modular system and external effects pedals.

How does the ADDAC 200PI Pedal Integrator handle signal levels between modular synths and pedals?

The ADDAC 200PI Pedal Integrator is designed to adjust the signal levels, ensuring that the high levels from a modular synth are compatible with the lower levels expected by guitar pedals and vice versa.

Does the ADDAC 200PI Pedal Integrator require any additional power supply?

The ADDAC 200PI Pedal Integrator is powered by your Eurorack system's power supply, requiring no additional external power source.

Can the ADDAC 200PI Pedal Integrator be used with any type of guitar pedal?

Yes, the ADDAC 200PI Pedal Integrator is compatible with most guitar pedals, allowing you to incorporate them seamlessly into your modular synth workflow.
