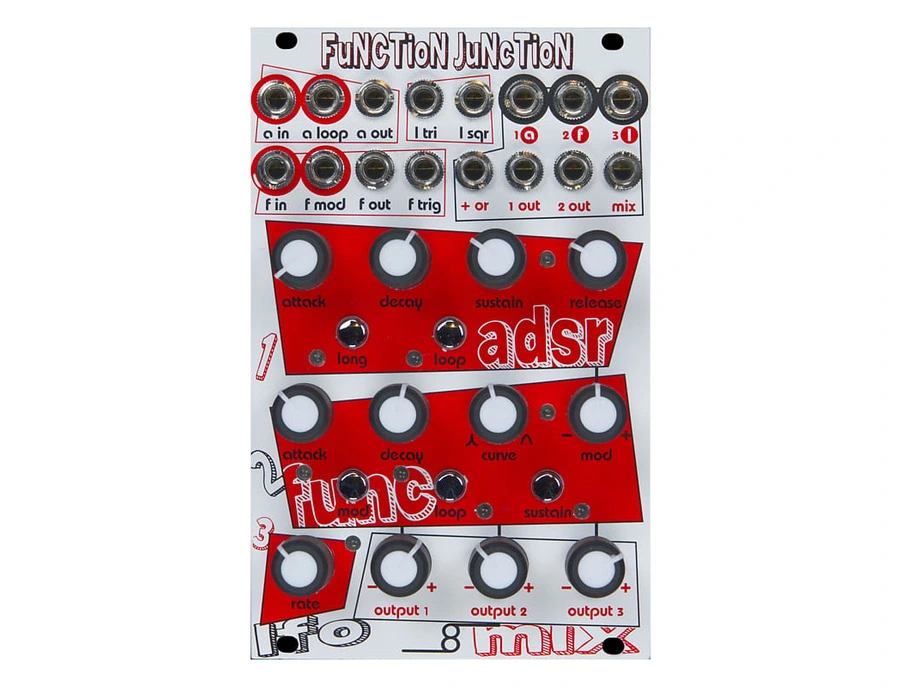

The Cre8Audio Function Junction Eurorack Synthesizer Module is your gateway to a universe of sound possibilities, crafted in collaboration with the expert minds at Pittsburgh Modular. This many-function-in-one module is a versatile powerhouse that combines four independent sections: ADSR, Function Generator, LFO, and Mixer. Each section stands robustly on its own, yet seamlessly integrates with the others to create complex, rich sonic textures.

Designed with both beginners and seasoned synthesists in mind, the Function Junction’s user-friendly layout ensures intuitive operation without sacrificing depth. The fully analog 4-stage ADSR circuit gives you precise control over your sound’s attack, decay, sustain, and release, while the loop function allows for envelope cycling either manually or via gate. The Function Generator extends the module’s versatility, doubling as an envelope generator, voltage-controlled LFO, and more, with modulation inputs that can be assigned to attack, decay, or both.

The dual LFO offers triangle and square wave outputs, adding layers of modulation potential, while the 3-channel attenuverting mixer provides unparalleled flexibility. Its OR circuit outputs the highest voltage in the mix, and the mixer can be used in various configurations—either as independent attenuverters or as a fully integrated mixer.

Whether you're looking to expand your modular setup or explore new sonic landscapes, the Function Junction is an indispensable tool that delivers both functionality and creativity.

Key Features:

• Co-developed with Pittsburgh Modular for expert synth design
• 16 patch ports for versatile configurations
• Four independent sections: ADSR, Function Generator, LFO, and Mixer
• Fully analog 4-stage ADSR with independent controls
• Loop function for envelope cycling, toggleable via button or gate
• Dual LFO outputs: triangle and square waves
• 3-channel attenuverting mixer with OR circuit
• Power consumption: 130mA (+12V) / 70mA (-12V)

Product specs

FAQs

What are the main functions of the Cre8audio Function Junction Eurorack Module?

The Cre8audio Function Junction offers a dedicated ADSR, Function Generator, LFO, and Mixer sections, providing comprehensive modulation and mixing capabilities for Eurorack systems.

Can the Function Generator in the Cre8audio Function Junction be used for multiple purposes?

Yes, the Function Generator can serve as an envelope generator, voltage-controlled LFO, slew generator, gate signal delay, envelope follower, clock source, and more.

How does the loop capability work on the Cre8audio Function Junction?

The loop capability allows the ADSR to cycle continuously, with the loop mode toggled on or off via a button press or gate signal, and the SUSTAIN and RELEASE knobs adjusting loop timing.

What are the power requirements for the Cre8audio Function Junction Eurorack Module?

The module requires a Eurorack case and power supply, consuming +12V/130mA and -12V/70mA.

How versatile is the mixer section in the Cre8audio Function Junction?

The 3-channel attenuverting mixer can function as independent attenuverters, a two-channel mixer, or a three-channel mixer, with a + OR circuit outputting the highest voltage value.
