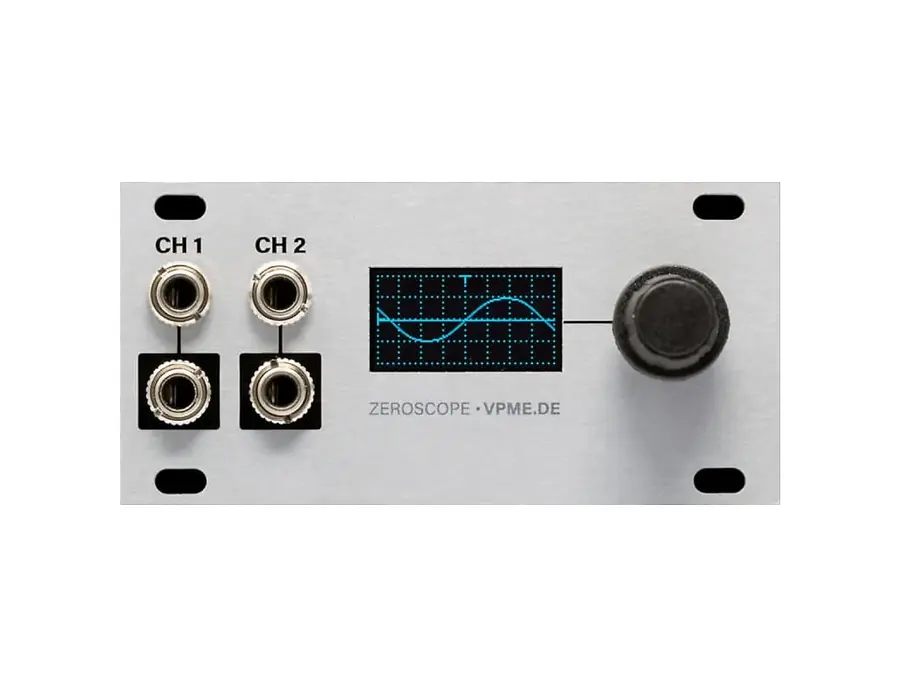

Unlock a new realm of visual precision with the Intellijel Zeroscope 1U Oscilloscope / Tuner Eurorack Synth Module. This compact powerhouse is a must-have utility module for any Eurorack setup, offering dynamic visualization of both audio and control voltages. Its sleek graphical display makes monitoring a breeze, ensuring your signals remain unaffected as they pass through.

Designed with versatility in mind, the Zeroscope boasts three distinct modes: Scope, X-Y, and Tune. The Scope mode provides a classic oscilloscope view, plotting time against voltage for real-time analysis. X-Y mode takes it a step further, offering a dual-channel display with channel 1 on the X-axis and channel 2 on the Y-axis. The Tune mode transforms the Zeroscope into a precise tuner, displaying frequencies in either Hz or musical notes, making it an invaluable tool for any synthesist.

Crafted in collaboration with vpme.de, this module features DC-coupled inputs that are normalled to its outputs, accommodating signals ranging from -10V to +10V. It’s a perfect fit for an Intellijel-standard 1U row, consuming minimal power and space while delivering maximum functionality.

Key Features:

• 2-channel digital oscilloscope, frequency counter, and tuner
• Scope, X-Y, and Tune operation modes
• Accepts audio and CV signals between -10V and +10V
• Developed with vpme.de for enhanced performance
• Displays frequencies in Hz or note name
• Compact 16HP width for seamless integration into 1U Eurorack systems

Product specs

FAQs

What is the primary function of the Intellijel Zeroscope 1U in a modular synth setup?

The Intellijel Zeroscope 1U serves as both an oscilloscope and a tuner, allowing users to visually monitor audio and control voltage signals within a Eurorack system, aiding in precise tuning and signal analysis.

Can the Intellijel Zeroscope 1U be used in any Eurorack case?

The Intellijel Zeroscope 1U is designed for 1U Intellijel format Eurorack cases. It requires a compatible power supply and case to function properly.

How does the Intellijel Zeroscope 1U display signals?

The Zeroscope 1U provides a graphical display of input voltages, allowing users to view waveforms and signal characteristics in real-time, which is essential for precise modulation and synthesis.

Does the Intellijel Zeroscope 1U require a lot of power?

The Intellijel Zeroscope 1U uses minimal power, requiring +12V/8mA and no -12V, making it efficient for inclusion in power-sensitive Eurorack setups.

Is the Intellijel Zeroscope 1U suitable for live performance use?

Yes, the Zeroscope 1U is compact and efficient, providing real-time visual feedback on signals, which is beneficial for live performances where quick adjustments and monitoring are crucial.
