Direct box with added control.

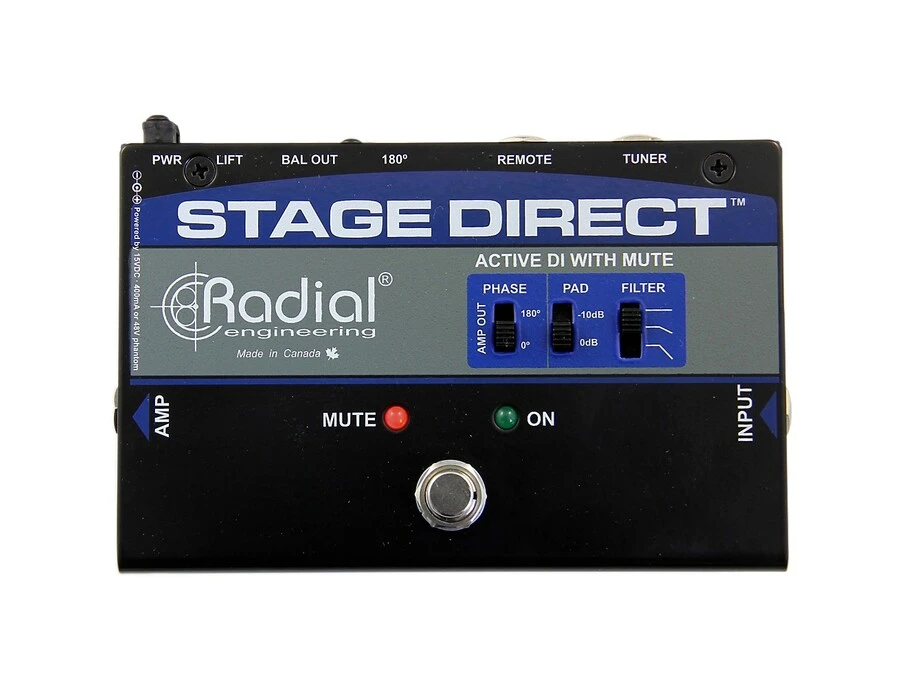

The Radial StageDirect is a state-of-the-art active direct box designed for musicians who require extra control when they are on stage. Apart from Radial's legendary build quality and roadworthiness, the Radial StageDirect provides dead silent output and a strong signal to snakes or mixing console inputs.

As with most DIs, the StageDirect is equipped with a hi-Z input for the instrument, a thru-put for the stage amplifier and a balanced low-Z output for the PA system. The 'extra' comes by way of a dedicated tuner output and footswitch that mutes the signal going to the PA and stage amplifier while leaving the tuner output active. This enables the artist to mute the guitar when not in use or quietly tune in between songs.

The innovative circuit design combines a class-A FET input driver with a low noise op-amp to deliver exceptional audio at all frequencies. A -15dB pad may be inserted for extra high output instruments such as active basses or electronic keyboards. Engaging the high-pass filter gently rolls off excessive bass to eliminate clutter and run-away resonant feedback. A 180 polarity reverse switch can be used to help phase align the on-stage amp with the PA or eliminate acoustic 'hot spots' on stage by electronically moving the problem out of the way.

A pair of full-sized LEDs let you know when the StageDirect is muted or ready to perform. Switching is done locally using the footswitch or may be remotely controlled by connecting a momentary (non-latching) footswitch to the dedicated ¼" connector. This enables the stage tech to mute the instrument as he hands the guitar to the artist and un-mute it as he walks off stage. Powering may be done via standard 48V phantom from the mixing console or by using the included 15VDC power supply.

Equally effective for acoustic guitar or bass, the StageDirect works as an extra stage hand by enabling the artist to change instruments without causing switching noise in the PA system

Product specs

FAQs

What is the primary function of the Radial Engineering Stagedirect Active DI Box?

The Radial Engineering Stagedirect Active DI Box is designed to convert unbalanced instrument signals to balanced signals, suitable for professional audio equipment, while providing a footswitch mute and tuner output for live performance convenience.

Does the Radial Stagedirect DI Box require an external power source?

No, the Radial Stagedirect DI Box is powered via USB, eliminating the need for an additional power supply.

Can the Radial Stagedirect DI Box be used with stereo signals?

Yes, the Radial Stagedirect DI Box supports stereo signals with its two channels, making it suitable for stereo instruments or dual mono setups.

What outputs are available on the Radial Stagedirect DI Box?

The Radial Stagedirect DI Box features two XLR outputs, allowing you to connect to professional audio equipment like mixers and audio interfaces.

Is the Radial Stagedirect DI Box suitable for live performances?

Yes, the Radial Stagedirect DI Box is ideal for live performances, offering a footswitch mute for silent tuning and a dedicated tuner output to keep your instrument in check during gigs.
