Ammoon Vitoos ISO4Plus

Find out who is using Ammoon Vitoos ISO 4Plus

0 wishlisted

0 saved

Page last updated Aug 11, 2025

Pricing and availability

Store

Reviews

Price

^* Product prices and availability are updated by Equipboard every 24hrs and are subject to change. Equipboard may receive compensation for purchases made at participating retailers linked on this site. This compensation does not affect what products or prices are displayed, or the order of prices listed. For more information, please refer to our affiliate disclosure.

Description

Edit description

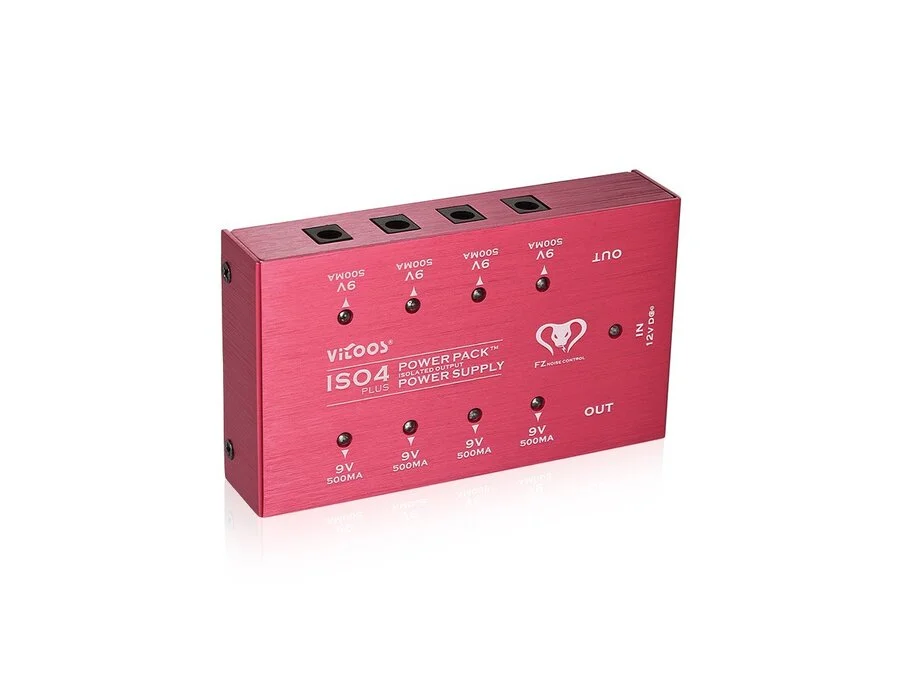

ISO4 PLUS is a high-current and Fully Isolated capable power supply that can power the largest and most diverse pedalboards, keeping your effects consistent from show to show with a quiet and cool performence. Its Short Circuit Protection provides protection against power shorts and over-loads. Powers 8 pedals at once 8× 9v 500mA INPUT RANGE: DC 12V, 50/60 Hz INPUT CURRENT：2000MA DC MAX EFFICIENCY： Meet CEC efficiency level VI and Erp Stage Ⅱ EMI：FCC CLASS B/CISRP22 CLASS B/EN 55022 CLASS B OUPUT Voltage：DC 9V Voltage Regulation：±5% @ constant voltage mode Current Limit：±5% @ constant current mode Maximum Power：24 Watts Hold-up time：10ms typical at full load @ 18V Protection：Over Load protection/Short Circuit protection/(SAFETY： EMI, FCC, CE, EMC & LVD Environmental： Operation Temperature （0 ℃ to +40 ℃） Storage Temperature： - 10℃ ~ 70 ℃ Packing 0.7kg / piece 1 * 12V/2000ma AC adapter

Reviews

Add review

Owner Insights

We analyzed real musician discussions from forums and Reddit to find what players love, question, and tweak about Ammoon Vitoos ISO4Plus.

Features and functionality

0 0

The Vitoos ISO4Plus has eight outputs, each capable of delivering up to 500mA, but the total output cannot exceed 2000mA, leading to strategic pedal power planning.
Source
0 0

The power cables included have a straight/angle configuration, affecting placement under pedalboards.
Source
0 0

The Vitoos ISO4Plus has been confirmed by some owners to have truly isolated grounds, which is distinct from many budget power supplies.
Source

Value and pricing

0 0

Purchased at $32, it's considered a great value for budget-conscious users with large pedalboards compared to higher-priced options like the Truetone 1Spot CS-12 or Zuma.
Source
0 0

Priced at $55 CAD on Amazon, it is considered a cost-effective option compared to more expensive alternatives.
Source

Build quality

0 0

Concerns about durability are noted due to hex screws making it difficult to disassemble and reassemble for internal inspection.
Source
0 0

Concerns were raised about the potential for low-quality transformers leading to electromagnetic interference, impacting overall reliability.
Source

User experience

0 0

The power supply enables users to reduce from four wall plugs to two, offering convenience and a quieter setup despite initial skepticism about isolation claims.
Source
0 0

Some users report a high-pitched sound in the audio signal, prompting upgrades to more reliable power supplies.
Source
0 0

Some users experienced a high-pitched whining noise with pedals like compressors and germanium fuzzes, indicating inconsistent noise performance across different pedal types.
Source
0 0

Even with 8 isolated ports, the Vitoos ISO4Plus was reported to have noise issues with digital and analog pedal combinations, emphasizing careful setup planning.
Source

Comparisons

0 0

Users compare the Vitoos ISO4Plus to the Vital Audio VA-08 mk.2, noting the latter’s similar design and isolated outputs, despite the Vitoos being more compact and lightweight.
Source
0 0

Users mention the Mosky C8 power supply as a similarly priced alternative, noted for being a clone of the Voodoo Labs Power Plus with better performance.
Source

Setup and maintenance

0 0

Mounting under pedalboards can be challenging; the unit requires access on three sides and is too wide for recesses between rails.
Source

Use cases and applications

0 0

The Vitoos ISO4Plus can power a variety of pedals, including high-draw models like the Shiftline Twin Tube Preamp (600mA, 12V) without issues.
Source
