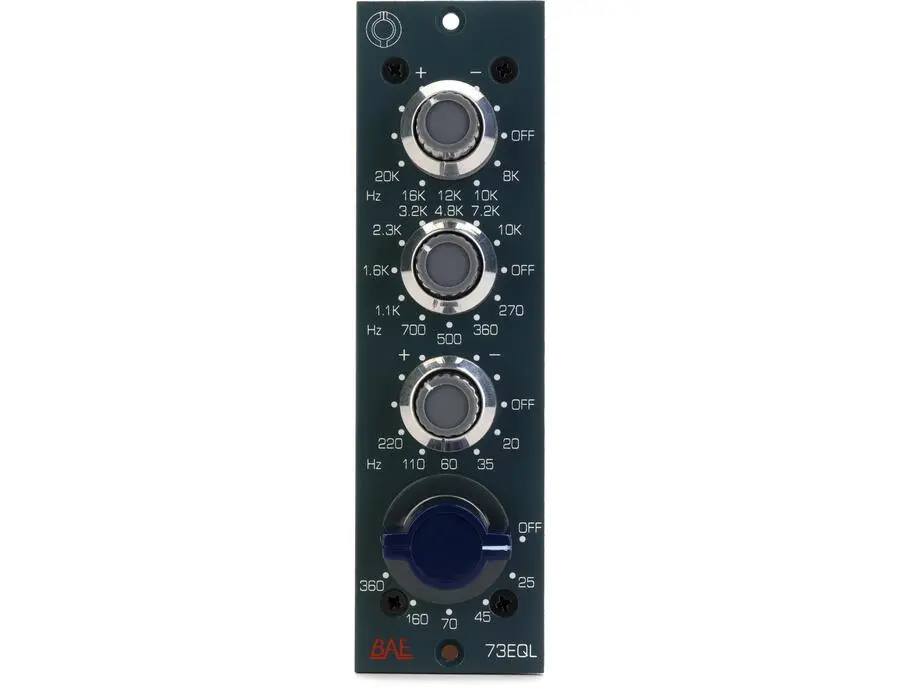

Dive into the world of superior sound shaping with the BAE 73EQL 500 Series 3-Band Equalizer Module. Inspired by the legendary 1073 EQ circuit, this inductor-based equalizer captures the essence of vintage audio magic. Musicians and audio engineers alike will appreciate its ability to impart an authentic, musical character to any track, thanks to its fabled harmonic distortion and expanded frequency control.

Perfect for both subtle enhancements and bold sound sculpting, the 73EQL offers an intuitive interface with a wide selection of frequency bands. The midrange band, with its eleven selectable frequencies, delivers precise control with ±18dB of boost/cut. For those deep bass lines and crisp highs, this module features low and high-frequency shelves that allow for ±16dB adjustments across multiple frequency points. Additionally, its highpass filter helps clean up any unwanted low-end, ensuring your mix remains clear and dynamic.

Whether you're looking to add warmth, clarity, or punch to your recordings, the BAE 73EQL is a reliable companion in your studio setup. Its seamless integration into any 500 Series chassis makes it a versatile tool for professionals seeking that classic EQ sound.

Key Features:

• Inductor-based topology inspired by the classic 1073 EQ circuit
• Wide frequency range with expanded control from 20Hz to 20kHz
• Midrange band: ±18dB boost/cut with eleven selectable frequencies
• High-frequency shelf: ±16dB at five frequency selections (8kHz to 20kHz)
• Low-frequency shelf: ±16dB at five frequency selections (25Hz to 220Hz)
• Highpass filter with a selectable 18dB/octave slope at five frequency points

Product specs

FAQs

What are the main features of the BAE 73EQL 500 Series Equalizer?

The BAE 73EQL 500 Series Equalizer is a solid-state module with a single channel, featuring three bands of EQ with a boost/cut range of ±16dB for high/low frequencies and ±18dB for mids. It also includes a high-pass filter with selectable frequencies from 25Hz to 360Hz.

Is the BAE 73EQL 500 Series suitable for use in a 500 series rack?

Yes, the BAE 73EQL is designed to fit a standard 500 series rack, occupying a single module slot and powered by ±16V DC.

Can the BAE 73EQL 500 Series Equalizer be used for both mixing and mastering?

The BAE 73EQL's precise control over frequency bands and high-pass filter make it versatile for both mixing and mastering applications, allowing detailed tonal shaping.

What is the frequency range covered by the BAE 73EQL 500 Series Equalizer?

The BAE 73EQL covers a wide frequency range with its three bands: low frequencies from 25Hz to 360Hz, mid frequencies from 270Hz to 10kHz, and high frequencies from 8kHz to 20kHz.

How does the BAE 73EQL 500 Series Equalizer handle power requirements?

The BAE 73EQL requires a ±16V DC power supply, typical for 500 series modules, ensuring compatibility with most 500 series racks.
