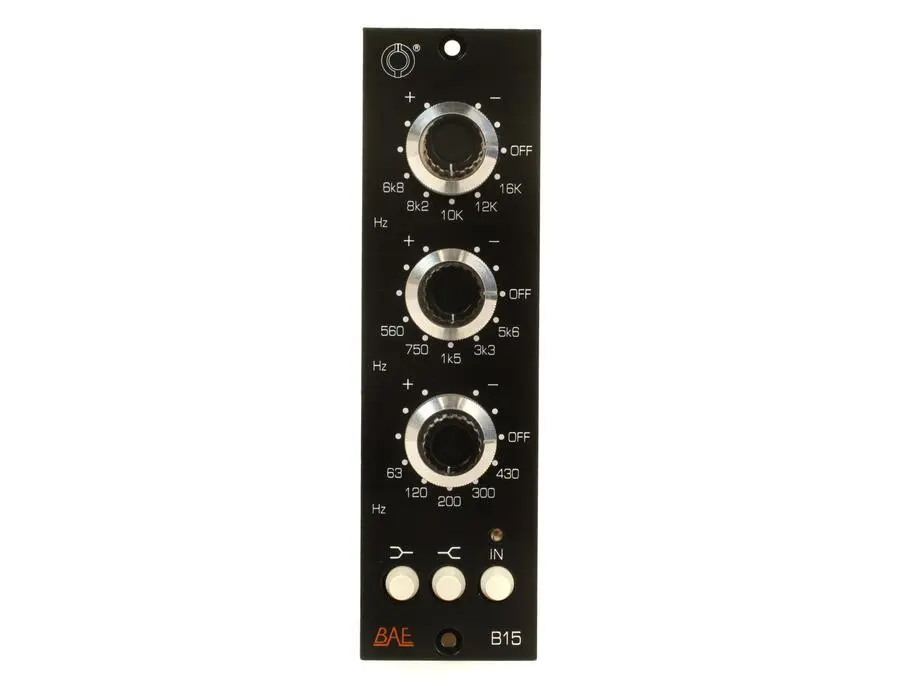

Step up your studio game with the BAE B15 3-Band 500 Series Equalizer Module, a powerhouse in the world of signal processing. Designed for the serious audio engineer, this unit offers a harmonically rich and versatile sonic palette that pays homage to classic British EQ design while introducing modern enhancements.

The B15 features a trio of dual-concentric potentiometers, crafted with precision and care. Each band provides five selectable frequencies, allowing you to tailor your sound with pinpoint accuracy. The low and high bands can be toggled between peaking and shelving modes, providing a flexibility that is a must for any studio setup. Thanks to its Jensen input and output transformers, the B15 delivers robust, clean, and dynamic sound, capturing every nuance of your music.

With an all-discrete, transformer-coupled, pure Class A circuitry, this equalizer module ensures that your audio maintains integrity and warmth. The Avedis 1122 op-amp, a key component in this design, contributes to a sound that is both vintage and vibrant. Whether you're tweaking the creamy mids or accentuating the nuanced highs, the B15 is engineered to provide a seamless and intuitive experience.

Key Features:

• All-discrete design with high headroom
• 3-band EQ with 5 selectable frequencies per band
• Switchable peaking/shelving for high and low frequencies
• Jensen input and output transformers
• Avedis 1122 op-amps for enhanced audio quality
• Concentric knobs with custom-machined aluminum outer rings
• Elma gold-plated rotary switches

Product specs

FAQs

What are the main features of the BAE B15 3-Band 500 Series Equalizer?

The BAE B15 features a 3-band EQ with peak/shelving switchable bands, a boost/cut range of ±16dB, and an 18dB per octave high pass filter with multiple frequency options. It also includes a phase button and an EQ bypass switch for versatile signal processing.

Can the BAE B15 EQ module be used in a standard 500 Series rack?

Yes, the BAE B15 is a single-slot 500 Series EQ module designed to fit standard 500 Series racks, making it compatible with a wide range of studio setups.

How does the BAE B15 handle high-frequency adjustments?

The BAE B15 offers high-frequency adjustments with a ±16dB shelving EQ, allowing for precise tonal shaping in the upper frequency range. Selectable frequencies provide flexibility for different mixing needs.

What power requirements does the BAE B15 3-Band EQ have?

The BAE B15 requires ±16V DC power, which is standard for 500 Series modules, ensuring it can be easily integrated into compatible racks without additional power considerations.

How does the BAE B15's mid-range adjustment work?

The mid-range band of the BAE B15 can be adjusted with a peaking EQ offering ±12dB or ±18dB with a switchable 'High Q' option, allowing for detailed control over mid frequencies.
