Description

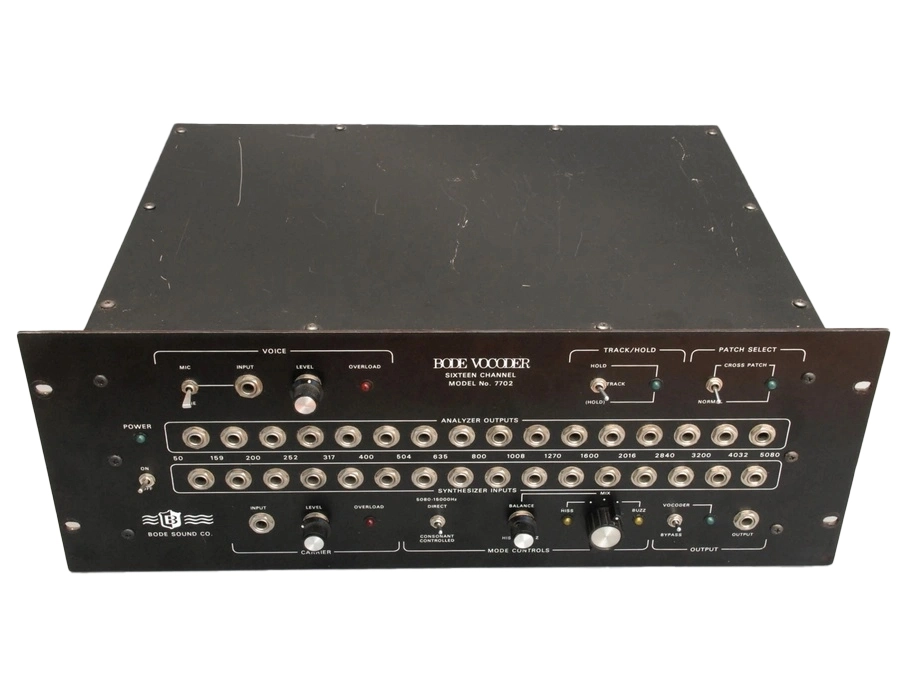

The Model 7702 Vocoder by Bode
The Bode Model 7702 Vocoder is a classic analog rack‑mounted vocoder designed by Harald Bode in the 1970s and later distributed (and loosely adapted) by Moog as the Moog 16‑channel Vocoder. It uses a 16‑band analysis and synthesis architecture to imprint the spectral characteristics of a modulator signal (like a voice) onto an external carrier source (such as a synthesizer), making it a powerful tool for creating “robotic,” harmonized, or otherwise spectrally altered sounds. The unit features full external patching between analyzer outputs and synthesizer inputs, offering extensive sound shaping and creative effects, including cross‑patching for unconventional timbres. Additional controls include high‑frequency bypass, sample‑and‑hold, and global bypass, with fast response times that capture transient details effectively. Because it lacks internal oscillators and modern digital conveniences, it’s typically used with external sound sources and is prized as a vintage piece in studios and modular setups.
Specs:
• 16‑band analog vocoder architecture (50 Hz to 5080 Hz analysis range)
• Extended high‑frequency enhancement band (5080 Hz to ~15 000 Hz)
• Separate analyzer outputs and synthesizer inputs with external patching matrix
• Microphone and line inputs plus carrier input (external oscillator required)
• High‑frequency bypass and switched modes for consonant emphasis
• Sample/hold and patch select controls for creative effects
• Global vocoder bypass switch
• Rack mount 19″ form factor with built‑in power supply switchable for 115/230 V
Videos
Chris Dexter
Bode Vocoder 7702 Demonstration
Bode Vocoder 7702 Demonstration
Chris Dexter
Walt Disney Main Street Electrical Parade Vox Intro
Chris Dexter

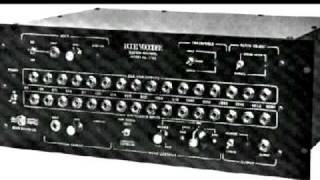

Lipps, Inc.: "Hold Me Down" / Bode 7702 Vocoder
VoiceEncoder
Harald Bode testing his Bode 7702 Vocoder
VoiceEncoder
Harald Bode: "Bode 7702 Vocoder: Untitled"
VoiceEncoder
The Commodores: "Animal Instinct" (Bode Vocoder 7702)
Suspense1949
A Cute Little Bunny Listens to "Main Street Electrical Parade" / Bode 7702 Vocoder
VoiceEncoder
Reviews
Critic Reviews
Based on 0 Reviews and 0 Ratings
Artist usage
Add artist
The infamous release artwork that accompanied Syro, detailing every piece of equipment used to make the album, lists a "Bode Vocoder". This refers to the Bode Inc, Model 7702 Vocoder, developed by Harold Bode. From 1978 onward, the Bode Vocoder was distributed by Moog under the name "Moog Vocoder", and Moog even offered up a reissue of the Bode in 2020.
In this early 80s TV mini-doc, Suzanne Ciani can be seen (and heard) creating the vocal queues for the arcade pinball machine Xenon. Her Bode Vocoder can be seen in the rack shot at 0:43, and (presumably) this is the vocoder we are hearing Suzanne talk through in the segment opener.
