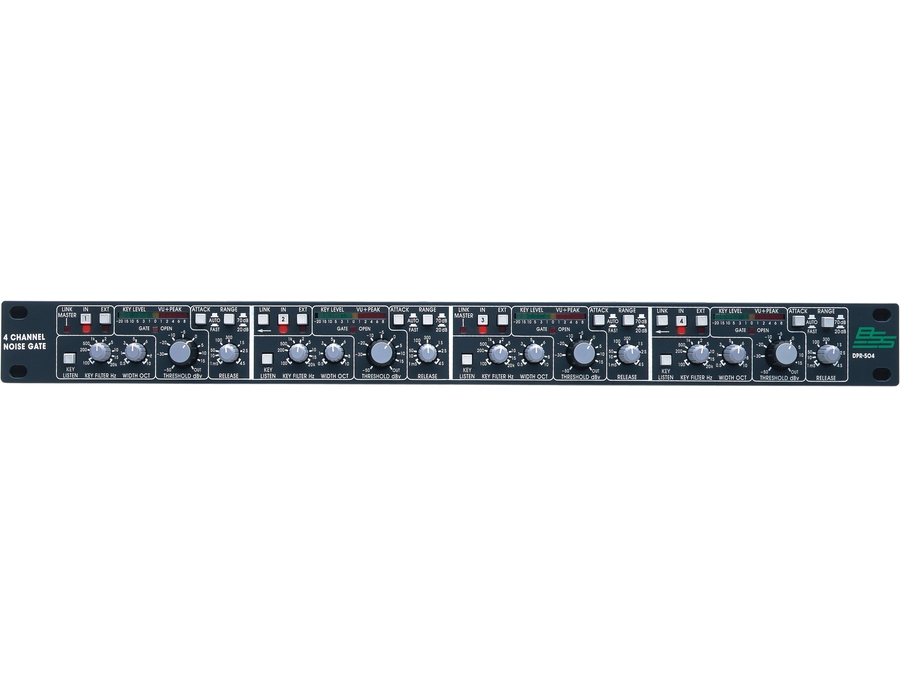

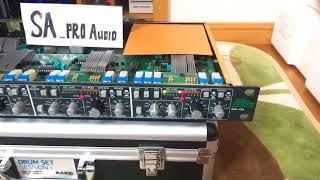

The BSS DPR-504 is a 4-channel professional noise gate which has been designed for simple and intuitive use. It incorporates modern integrated circuit technology for high packing density and long term reliability. Ingenious proprietary techniques are employed to make the engineers life easier without compromise to performance or versatility.

Four independent channels that are linkable to give either one or two stereo linked master/slave modes Flexible parametric Key filter for frequency conscious gating with absolute precision. The parametric EQ approach provides a higher degree of control for accurately rejecting spurious unwanted gate triggers than similar shelving filters.

Key listen provides operator with the facility to hear the effect of Key side- chain EQ or other processing effect as an aid to setting up. Dual metering system which indicates both average and peak responses simultaneously and gives the operator precise information regarding the signal levels around the threshold point. Separate 'gate open' marker LED, linked to gate dynamics, continually monitors interrelation between gate activity and the actual signal. Each channel features

A parametric key filter with key filter listening. Simultaneous key level and threshold metering with average and peak metering. A gate status LED. A RELEASE/HOLD control (hold tracks proportionally with release times). Attack switchable auto/fast (auto tracks signal dynamics for optimum setting). Link (links two channels together). Key source allows external triggers.

Specifications:

Input Section Impedance: Balanced 12k ohm differential Max. Input Level: + 20dBv CMRR: better than 50dB, 20Hz to 20Khz Connector: XLR3-31 or equivalent style Output Section

Impedance: Balanced and floating to drive 600 ohm loads Headroom: +20dBv into 600 ohm load Frequency: +/-1dB 20Hz to 20kHz. Ultrasonic low pass filter Response: -3dB at 32kHz Noise: Measured to CCIR 468-2 Zero attenuation: <-86dBv Maximum attenuation <-90dBv Distortion: THD <0.05% 20Hz to 20kHz SMPTE IM: <0.02% Connector: XLR3-32 or equivalent. Operating Controls

Key filter: Variable between 100Hz and 20kHz centre frequency Key width: Variable between 0.5 and 10 octaves Key source: Switchable internal or EXTernal via 1/4" RTS jack Threshold: Variable between +20dBv and 30dBv Attack: Audio attack switchable FAST (20uS) or AUTO (40uS - 5mS) program dependant Release: Combined Hold/Release function variable 1mS to 4S Hold period tracks proportionally with release Release has custom audio taper Range Switchable attenuation between -70dB and -20dB Link: Stereo linkable in pairs 1/2 and 3/4 Channels 1 and 3 become masters EXT Socket 3 pole 1/4" RTS jack socket to provide unbalanced access into key side chain Metering

Key level: Simultaneous average and peak reading 12 point LED display showing 28dB range of Key side-chain signal Gate open: Single triangular LED showing exact gate status Mimics response profile as set by attack and release controls
