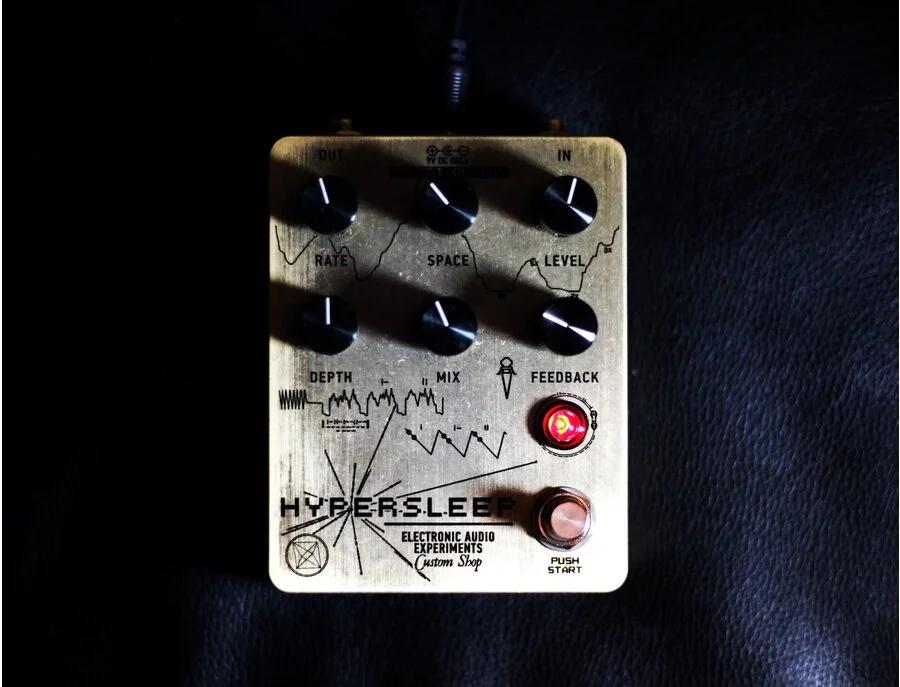

The Electronic Audio Experiments Hypersleep is a solid-state analog reverberator. It evokes the immediate acoustic reflections of metal and tile, with a gritty timbre and a ringing, fluttering decay—forgoing epic atmospherics in favor of liminality.

At the heart of the Hypersleep is the unusual and obsolete MN3011 bucket brigade device. Unlike other BBDs with one input and one output, the MN3011 uses an array of staggered delay outputs to produce a smeared-out echo. Feeding this echo back upon itself produces a reverberant texture. The reverb length can be modulated via the onboard LFO for atypical chorus and vibrato effects, or the haunting sound of a room changing size in real time. As always, careful signal conditioning ensures that Hypersleep is friendly to any instrument or line level signal source.

Electrical Specifications

Bypass: Electronic switching with FET-input op amp bypass buffer

Input impedance @ 1Khz: 1MΩ

Output impedance @ 1Khz: <1kΩ

Power: 9VDC, 2.1mm center negative barrel. The current draw is 60mA.

We recommend a regulated, isolated power supply rated for 100mA minimum. The DC input is protected against reverse polarity and over-voltage up to 24V. Our pedals do not accept batteries.

Controls

• Level: overall effect level, gracefully overloads at higher settings
• Space: delay time of the BBD, simultaneously controlling six taps on a single delay line
• Mix: blend of clean and effected signals, from full dry to full wet
• Feedback: increases the decay time of the reverb; will self-oscillate at extreme settings
• Rate: modulation rate, from imperceptibly slow to nearly audio rates
• Depth: modulation depth, from subtle vibrato to warped pitch bending

Product specs

FAQs

What type of reverb sounds can the Electronic Audio Experiments Hypersleep V2 create?

The Hypersleep V2 is designed to deliver lush, ambient reverb textures. It excels in creating expansive, atmospheric soundscapes suitable for genres like shoegaze and post-rock.

Does the Hypersleep V2 work well with both electric guitar and bass?

Yes, the Hypersleep V2 is compatible with both electric guitar and bass, offering rich reverb effects that enhance the tonal depth of either instrument.

What are the power requirements for the Hypersleep V2 pedal?

The Hypersleep V2 requires a standard 9V DC power supply, center-negative, which is typical for most guitar pedals.

How does the Hypersleep V2 differ from other reverb pedals on the market?

The Hypersleep V2 stands out with its unique ambient reverb algorithms and high-quality build, offering a distinct sound that can transform your playing into a dreamy, ethereal experience.

Is the Hypersleep V2 suitable for live performances?

Yes, the Hypersleep V2 is designed for both studio and live use, providing reliable performance and easy integration into pedalboards for live gigs.
