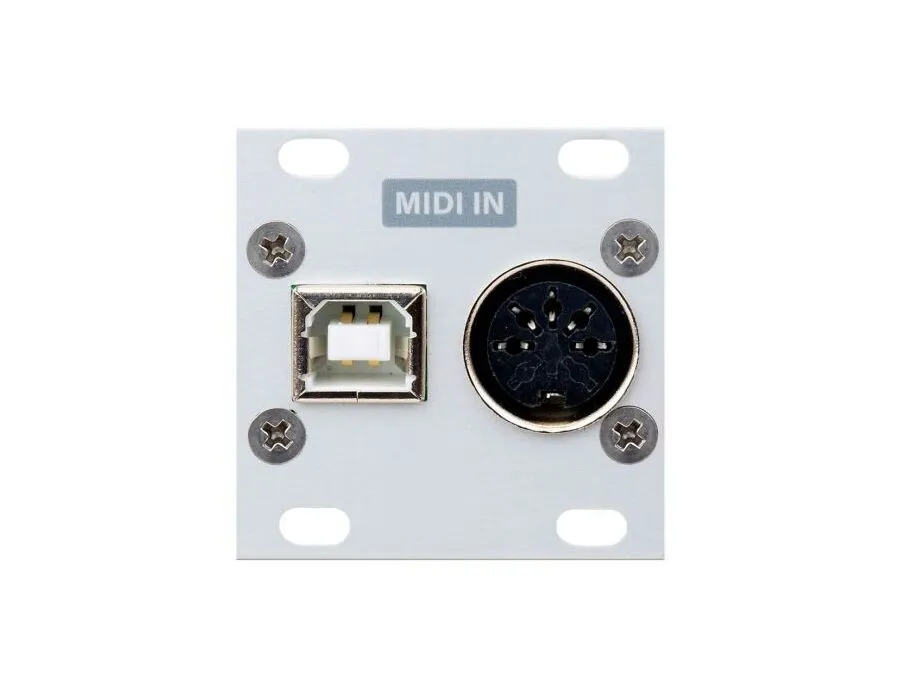

Unlock the full potential of your modular synthesizer setup with the Intellijel uMIDI Jacks 1U. Perfectly designed to bridge the gap between your USB/DIN MIDI devices and modular system, this compact module offers seamless integration and effortless control. Whether you're a seasoned synth enthusiast or a newcomer exploring the world of modular synthesis, this interface ensures you get the most out of your equipment with ease and precision.

Featuring direct connections to the USB port and MIDI inputs of Intellijel 7U and Palette cases, the uMIDI Jacks 1U transforms your MIDI signals into a versatile array of analog outputs. Control pitch, velocity, modulation wheel movements, CC, gate, and trigger with precision, while dedicated outputs for MIDI clock and reset keep your compositions in perfect sync.

The module's intuitive Learn mode simplifies MIDI channel and CC assignments, making setup a breeze. Its adjustable clock divider allows for tailored MIDI clock settings, ensuring your musical timing is always spot-on. Plus, customization is taken to the next level with the Intellijel Config App, allowing for personalized setups to suit any creative workflow.

For those looking to expand their capabilities, the uMIDI Jacks 1U is compatible with the optional MIDI Expander 1U module, offering even more connectivity options. Despite its rich feature set, the module maintains a modest power consumption, ensuring it fits seamlessly into any rack setup.

Key Features:

• Direct connection to USB port and MIDI input of Intellijel 7U and Palette cases
• Analog outputs for pitch, velocity, modulation wheel, CC, gate, and trigger
• MIDI clock and reset outputs
• Learn mode for MIDI channel and CC assignment
• Adjustable clock divider for MIDI clock
• Programmable via Intellijel Config App
• Expandable with optional MIDI Expander 1U module
• Consumption: 34 mA (+12 V) / 2 mA (-12 V)
• Width: 14 TE
• Depth: 14 mm

Product specs

FAQs

What is the primary function of the Intellijel uMIDI Jacks 1U module?

The Intellijel uMIDI Jacks 1U module is designed to provide MIDI input and output connectivity for modular synthesizer setups, facilitating integration with external MIDI devices.

How does the Intellijel uMIDI Jacks 1U connect to my modular synth system?

The uMIDI Jacks 1U connects to a compatible Intellijel 1U module, such as the uMIDI 1U, enabling MIDI communication within your Eurorack system.

Does the Intellijel uMIDI Jacks 1U require any additional modules to function?

Yes, the uMIDI Jacks 1U requires a compatible MIDI interface module, like the uMIDI 1U, to function as it serves as the physical MIDI connection point in your setup.

Can the Intellijel uMIDI Jacks 1U be used with any MIDI controller?

The uMIDI Jacks 1U can be used with most standard MIDI controllers, allowing for seamless integration with your modular synth setup.

What are the dimensions of the Intellijel uMIDI Jacks 1U?

The Intellijel uMIDI Jacks 1U has a width of 14 TE / HP, making it a compact addition to your modular synthesizer system.
