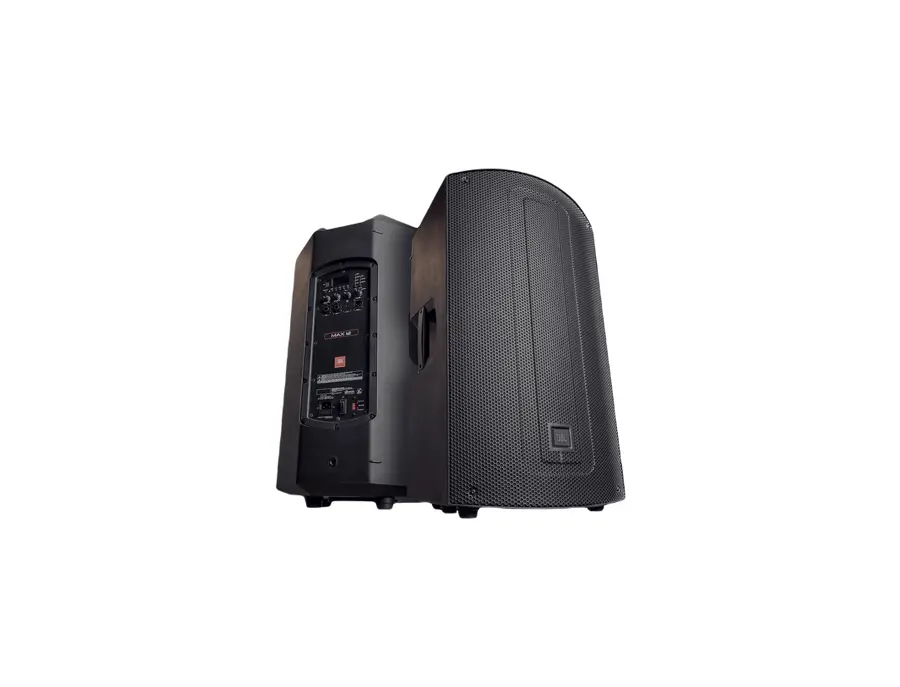

The MAX line of portable speakers offers quality and volume reference in the segment of amplified speakers, total ease of use, unparalleled feature set and the most affordable price of JBL. With a simple touch on the Tone and Locate buttons you choose the best equalization among five presets and three more for the application, two inputs combined between microphone and instrument with automatic switching between microphone and line as you turn the volume knob. Play music, soundtracks, or playback tracks with Bluetooth audio streaming or relax listening to your favorite music through MP3 via USB with folder switching on a high-quality display. A uniquely shaped cabinet for pedestal applications with two range choices, monitor mode positioning or hoisted via three lifting points, a sturdy steel grille with a modern, harmonious design that supports an itinerant lifestyle.

Installations in churches, theaters , or venues that require professional sound quality with ease of use and minimal setup time. • Five Tone adjustment presets for easy sound optimization. • Three Locate presets to match the setup to the venue. Bluetooth integration enables music streaming, soundtracks, and playback. • MP3 player for hours of interference-free playback. • Frequency response with strong bass and clear treble. • Robust, lightweight design. • Two XLR/TRS combo input jacks, one P2 auxiliary input, and one XLR output for system expansion. The XLR/TRS inputs accept direct connection of microphones and musical instruments. Ergonomic handles make transport quick and easy. Dual-angle pedestal stand expands system configuration options. Automatic gain adjustment between microphone and line levels. Amplified, two-way, 12 inches , Molded polypropylene 128 dB SPL Maximum* , 65 Hz - 16.5 kHz . 55 Hz - 19 kHz , 100°(horizontal) x 60°(vertical) nominal 300 WRMS (Class D, LF) + 50 WRMS (Class AB, HF) , Audio streaming, Bluetooth version 5.0 Functions TONETOUCH and LOCATE Independent Limiters and Compressors , 2 x Combo(XLR/P10), 1 x P2, 1 x USB** , 100 kΩ , 1 x XLR , 35mm pedestal bracket , 110-127V or 220-240V selectable , T6.3AL/250V , 15.9kg (35 lb) , 629x365x355mm (24.76x14.37x13.98 inches) , 18.55kg (40.9 lb) , 690x445x445mm (27.16x17.52x17.52 inches)

Owner's manual
