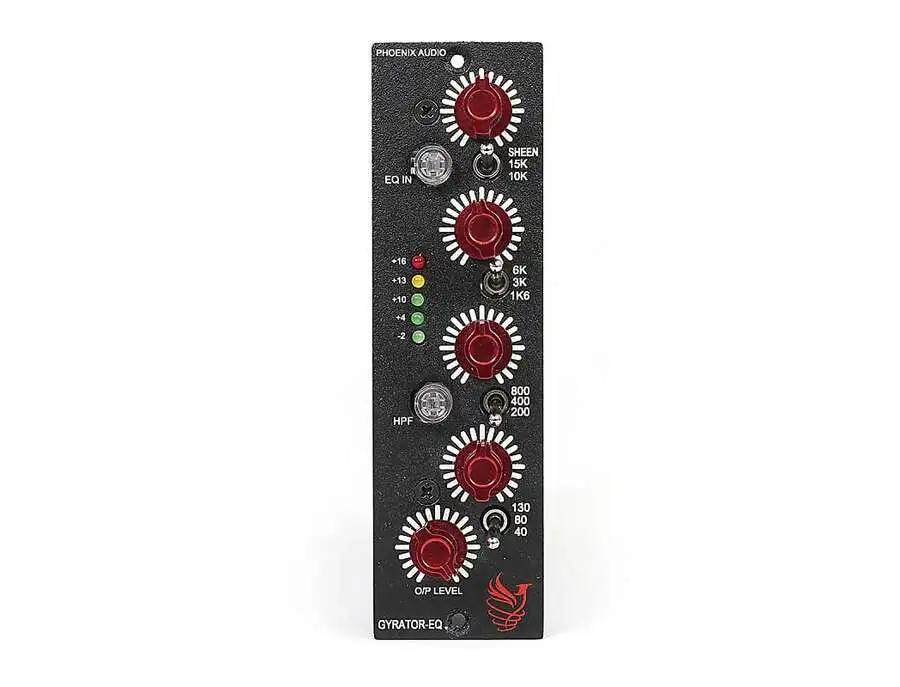

In the world of studio recording, the Phoenix Audio Gyrator-EQ 500 Series Equalizer Module stands out as an exceptional tool for audio shaping. This 500 Series module draws inspiration from the legendary large-format recording consoles of the 1970s, yet it’s revamped with modern technology for a quieter and cooler operation. The Gyrator EQ circuit is a masterpiece, offering four bands of frequency control tailored for both precision and musicality. It covers a spectrum of tasks from high-headroom mix buss tone shaping to deep frequency sculpting. Whether you’re refining a full mix or mastering tracks, the Gyrator-EQ provides the flexibility and finesse you need.

One of its most remarkable features is the proprietary Sheen control, which allows you to add a breathtaking air and presence to your recordings. This control operates at a dazzling 25kHz, offering a subtle yet impactful way to enhance high frequencies. Furthermore, the unit is equipped with a transformer-balanced output stage, utilizing Phoenix Audio’s custom-wound DB694 output transformer and the proprietary DSOP-2 output amplifier. This ensures a seamless tonal range from ultra-clean to gorgeously saturated, perfect for achieving that vintage character or pristine clarity in your sound.

Key Features:

• 4 Bands of Gyrator EQ with High-Pass Filter
• High band: 25k (sheen), 15k, 10k (shelving)
• Hi Mid: 6k, 3k, 1.6k (bell curve EQ)
• Low Mid: 800Hz, 400Hz, 200Hz (bell curve EQ)
• Low band: 130Hz, 80Hz, 40Hz (shelving EQ)
• High-Pass Filter at 80Hz, 12dB/octave
• ±16dB Cut/Boost Per Band
• Proprietary Class A DSOP-2 Output Amplifier
• Built-in 24V PSU for consistent performance
• Maximum output level: +26dBu @ 1kHz
• Noise: -90dB, 20Hz–20kHz
• LED Gain Metering for precise control

Product specs

FAQs

What is the primary function of the Phoenix Audio Gyrator-EQ 500 Series Equalizer Module?

The Phoenix Audio Gyrator-EQ 500 is a 4-band equalizer designed for precise tonal shaping in studio environments, offering selectable Q types and a boost/cut range of ±16dB for detailed frequency adjustments.

How many bands does the Phoenix Audio Gyrator-EQ 500 have and what are their frequency ranges?

This equalizer features four bands with frequency ranges: Low (40Hz-130Hz), Lo-Mid (200Hz-800Hz), Hi-Mid (1.6kHz-6kHz), and High (10kHz-25kHz), allowing for comprehensive tonal control.

Does the Phoenix Audio Gyrator-EQ 500 Series Equalizer support bypass functionality?

Yes, the Phoenix Audio Gyrator-EQ 500 includes a bypass feature, enabling you to compare processed and unprocessed signals easily.

What type of power supply does the Phoenix Audio Gyrator-EQ 500 require?

The Phoenix Audio Gyrator-EQ 500 operates on a 24V DC built-in power supply, ensuring stable performance within a 500 Series rack.

Is the Q type on the Phoenix Audio Gyrator-EQ 500 selectable?

Yes, the Phoenix Audio Gyrator-EQ 500 offers selectable Q types, providing flexibility in shaping the bandwidth of each frequency band for precise audio sculpting.
