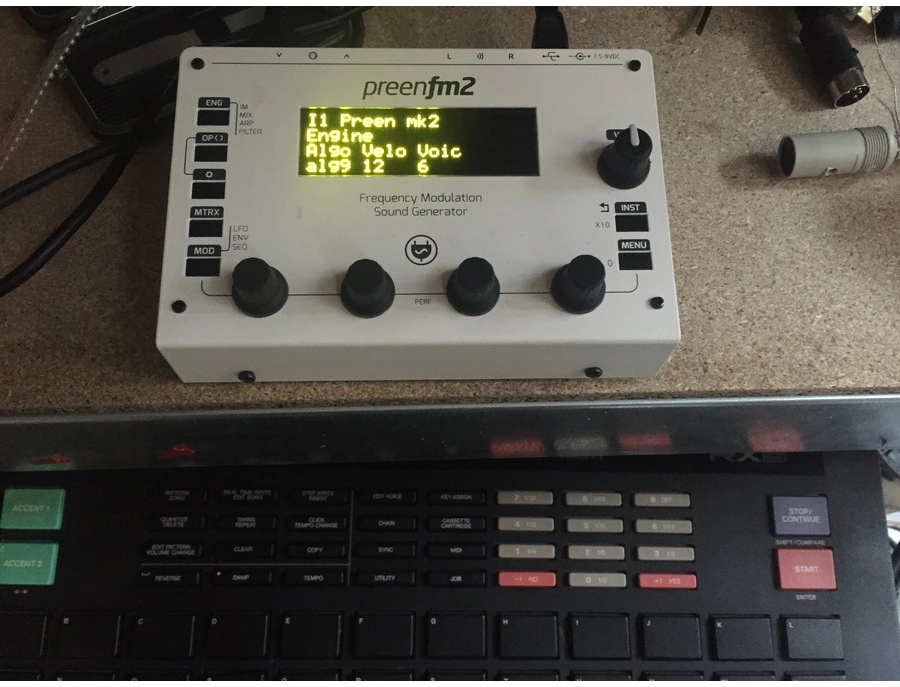

The PreenFM2 brings the old FM synthesis in a small open-source modern DIY box

4 independent instruments (four time multitimbal). Each of them has:

• Powerful arpeggiator (Mutable-Instruments opensource algorithm).
• 1 effect Slot (LP, HP, Bass boost, Band Pass, crusher)
• 1 gate effect
• 4 rapid access performance parameters
• The 4 instruments can be saved all at the same time in combo presets.
• Each instrument has its own modifiable midi channel. They can share the same for FAT quadruple timbres notes.
• Modifiable number of allocated voices… Between 1 and 14.
• 28 FM algorithms from 3 to 6 operators

Up to 14 voices of polyphony (8 if you use 6 op algorithms). Each voices has:

• 7 low frequency modulators (3 LFOs, 2 enveloppes, 2 step sequencers).
• 12 rows matrix : 16 sources, 32 destination (LP, HP, gate, stereo, MI, attack…)
• Arpeggiator, LFOs and step sequencers synchronizable on external midi clock or internal clock.

Operator features:

• 7 builtin waveforms + 6 user waveforms read from the usb drive.
• Stereo panning (at the carrier operator level)
• 8 envelope parameters per operator (DX7 like)

Direct Scala scale file loading for microtonality. Up to 128 Scala scales selectable from the preenfm2. Modular Randomizer

USB all the way: * Midi over USB * USB drive: huge preset banks: 64*128 presets, 8*128 combos, 256*32 DX7 presets. * the USB drive holds your preset banks, you scala scale files, your user waveform files. * Easy firmware upload and flash. * USB powered

Comprehensive user interface and associated to a 4×20 characters display for easy preset edition Small, portable and easy to build (no SMD)

Mac/Linux/Windows open-source preset Editor : standalone and VST

• Can import DX7 sysex banks (just put them on the usb stick)
• Glide possible for instrument(s) with number of voice set to 1
• Midi through Din5 or USB
• Can be powered by USB or 7.5V-9v 2.1mm DC IN
• Boots in 2 seconds
• Al very standard components
• 2 * double 12bits DAC (mcp4922) => 18 bits stereo output
• Single simple pot to control stereo volume
• Sample rate 38Khz (or 42Khz with overclocked firmware)
• Custom bootloader with 3 ways to upgrade firwmare: Usb stick, sysex through Din5 or DFU.

http://ixox.fr/preenfm2

https://www.tubeohm.com/preen-fm2.html

https://vandaal-electronics.com/product-category/preenfm

Product specs

FAQs

What type of synthesis does the PreenFM2 use?

The PreenFM2 utilizes frequency modulation (FM) synthesis, which is known for its ability to create complex and dynamic sounds through the modulation of frequency signals.

How many voices of polyphony does the PreenFM2 offer?

The PreenFM2 provides 14 voices of polyphony, allowing for rich and layered soundscapes ideal for both live performances and studio work.

Does the PreenFM2 support MIDI connectivity?

Yes, the PreenFM2 supports MIDI connectivity with both MIDI Input and Output ports, as well as USB MIDI, making it versatile for integration with various MIDI setups.

Is the PreenFM2 suitable for live performances?

With its robust 14-voice polyphony and comprehensive MIDI connectivity, the PreenFM2 is well-suited for live performances, offering flexibility and a wide range of sound possibilities.

What are the standout features of the PreenFM2's sound engine?

The PreenFM2's sound engine stands out for its FM synthesis capabilities, which enable the creation of intricate and evolving tones that are ideal for electronic music production.
