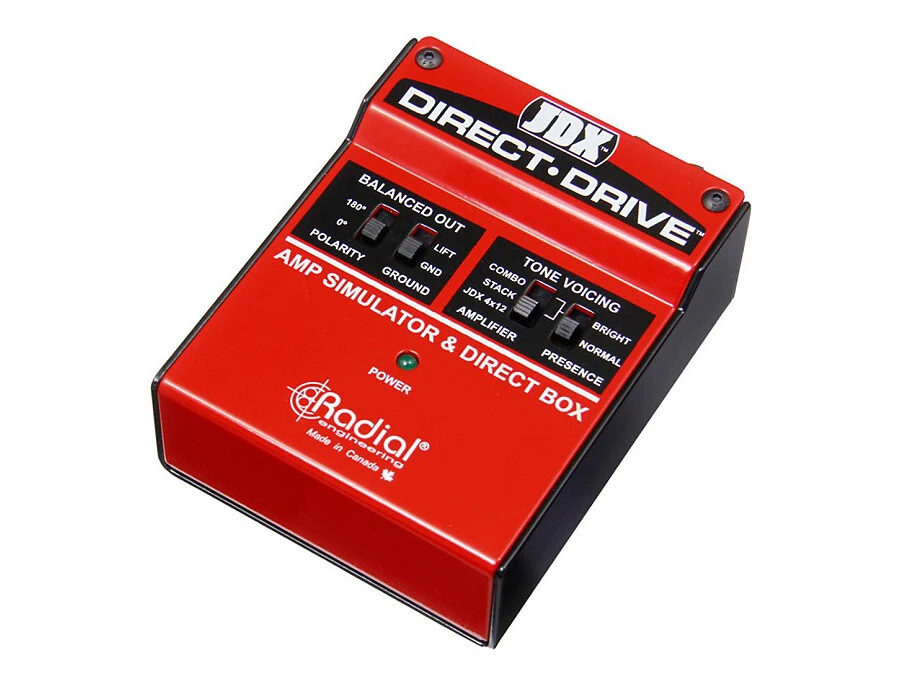

Transform your pedalboard with the Radial JDX Direct-Drive Analog Amp Simulator—an ingenious solution for guitarists seeking authentic amp tones without the hassle of hauling heavy gear. This powerful device doubles as a direct box, allowing you to connect directly to the PA system while simulating the rich, dynamic sound of a true guitar amplifier. Radial's proprietary JDX tone shaping delivers iconic tones modeled after a Shure SM57 positioned in front of a classic Marshall 4x12 cabinet, eliminating the need for bulky amps at gigs.

Featuring a standard 1/4" guitar input and passive thru-put for feeding a stage amp, the Direct-Drive ensures seamless integration into any setup. A buffered tuner output preserves your signal integrity, eliminating unwanted noise. With three distinct voicing options, including a vintage Marshall tube head and an early Fender Twin, this unit offers versatile tonal possibilities. The presence switch adds an extra layer of brilliance, tailoring your sound further.

Robustly built with 14-gauge steel, the Direct-Drive is designed to withstand the rigors of touring, while its compact size makes it a perfect fit for any pedalboard. Moreover, it features a 180° polarity reverse and a ground lift switch to combat hum and phase alignment issues on stage. Power it with a standard 9V supply or a pedalboard power brick. Elevate your performance with the Radial JDX Direct-Drive, where authenticity meets convenience.

Key Features:

• Guitar amp simulation in a pedalboard-friendly format
• Emulates iconic 4x12 half-stack and open-back combo tones
• Buffered tuner output to prevent pickup loading
• Balanced XLR and 1/4" outputs for versatile connectivity
• 180° polarity reverse and ground lift switch
• Durable construction with 14-gauge steel housing
• Compatible with 9V power supply or pedalboard power brick

Owner's manual

Product specs

FAQs

What type of amp sounds can I expect from the Radial JDX Direct-Drive?

The Radial JDX Direct-Drive offers three preset sounds: American Combo, British Stack, and Cabinet with mic, allowing you to emulate classic amp tones suitable for various music styles.

Can the Radial JDX Direct-Drive be used as a direct box for live performances?

Yes, the Radial JDX Direct-Drive functions as both an amp simulator and a direct box, making it ideal for live performances where direct connectivity to a PA system is needed.

Does the Radial JDX Direct-Drive require an external power supply?

Yes, the Radial JDX Direct-Drive requires a 9V DC power supply, which is sold separately.

What are the input and output options on the Radial JDX Direct-Drive?

The Radial JDX Direct-Drive features a 1/4" instrument input, two 1/4" outputs (out and thru), one XLR DI output, and an additional 1/4" tuner output.

How does the Radial JDX Direct-Drive handle EQ adjustments?

The Radial JDX Direct-Drive includes a 2-way Presence switch for basic EQ adjustments, allowing you to tailor the high-frequency response to your preference.
