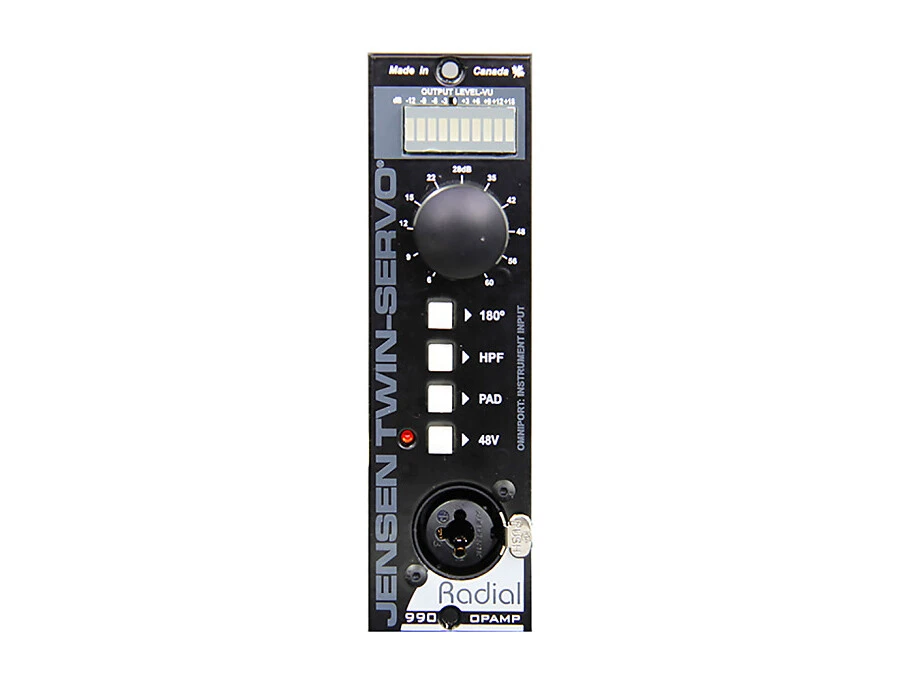

The Radial Jensen Twin-Servo 500 Series Microphone Preamplifier Module is a powerhouse of precision and clarity, designed to elevate your studio recordings. An update of the classic design from 1988, this preamp delivers 60dB of gain with unparalleled transparency and minimal distortion. At its core, the Twin-Servo boasts two discrete 990 op-amps, eradicating capacitors from the signal path to ensure a pristine audio experience. This configuration not only enhances the dynamic range but also reduces phase distortion, preserving the integrity of your sound.

Equipped with oversized Jensen transformers, the Twin-Servo offers an impressive frequency response from 0.2Hz to 150kHz, ensuring your recordings capture every nuance. Its robust design includes a 10-segment LED meter for precise signal monitoring, allowing you to adjust levels with confidence. The front-panel combination input, featuring Neutrik connectors, provides seamless connectivity with both XLR and 1/4-inch inputs.

The Twin-Servo is packed with thoughtful features for the discerning audio engineer: a 180º polarity reverse switch to maintain phase integrity, a high-pass filter to manage resonance, a -15dB pad to prevent overload, and +48V phantom power for condenser mics. Whether you're capturing delicate vocals or thundering instruments, this preamp module offers the versatility and reliability you need to produce stellar recordings.

Key Features:

• Two discrete 990 op-amps for clean, transparent operation
• Oversized Jensen transformers for maximum headroom and noise rejection
• 60dB gain with minimal distortion and extended bandwidth
• 10-segment LED meter for accurate signal monitoring
• Front-panel combo input with XLR and 1/4-inch options
• Polarity reverse, high-pass filter, -15dB pad, and +48V phantom power included

Product specs

FAQs

What is the frequency response of the Radial Jensen Twin-Servo 500 Series Microphone Preamplifier Module?

The Radial Jensen Twin-Servo 500 Series Microphone Preamplifier Module features an exceptionally wide frequency response ranging from 0.5Hz to 150kHz, ensuring detailed and accurate audio reproduction.

Does the Radial Twin-Servo 500 Series Preamp provide phantom power for condenser microphones?

Yes, the Radial Twin-Servo 500 Series Preamp includes phantom power, making it suitable for use with condenser microphones requiring external power.

What is the significance of the twin-servo topology in the Radial Twin-Servo 500 Series Preamp?

The twin-servo topology in the Radial Twin-Servo 500 Series Preamp eliminates capacitors from the signal path, resulting in virtually zero phase shift and no bandwidth limitation for superior audio clarity.

Are there any built-in EQ options on the Radial Jensen Twin-Servo 500 Series Preamp?

The Radial Jensen Twin-Servo 500 Series Preamp includes a highpass filter EQ option with a slope of 6dB/octave at 150Hz, allowing for effective low-frequency management.

What type of analog inputs does the Radial Twin-Servo 500 Series Preamp support?

The Radial Twin-Servo 500 Series Preamp features a single XLR-1/4" combo input, accommodating both microphone and line-level signals.
